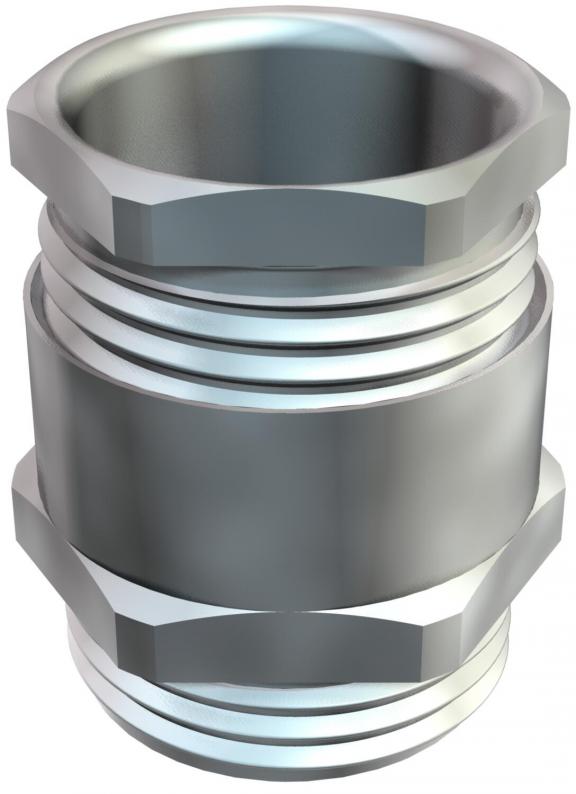

Cone cable gland, metric thread, cutting ring, nickel-plated

Cone cable gland, metric thread, cutting ring, nickel-plated

Type 162 MS M12
|
Item no. 2083706
|
EAN 4012196600793
Show all variants
Item no. / Type
Thread

Smallest selling unit: 50 piece

piece

Description

Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel. NR/SBR sealing ring.

Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.

With cutting ring.

* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Impact-resistantno
Halogen-freeno
Fibre-glass reinforcedno
explosion-proofno
Strain relief optionno
Protection ratingIP65
ThreadM12 x 1,5
For Ex zoneWithout
Thread typeMetric
Bend protectionno
With locknutno
Sealing insert, multipleno
Flat cable glandno
Type of sealCuttable sealing ring
Sealing area D, min.5 mm
Sealing area D, max.7 mm
ROHS-conformantExempt
Thread length7 mm
WAF 114 mm
WAF 213 mm
DimensionM12
SurfaceNickel-plated
MaterialBrass
Product seriesThreaded connection accessories

Dimensions

Dimension L15 mm
Dimension L max.15 mm
Dimension L17 mm
Dimension L216 mm
Dimension L32,5 mm
Dimension E15,5 mm

Environmental Data

0,011 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,011 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,011 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (3)
Tender specifications (1)

Variants

Thread
162 MS M12
Item no.
2083706
Thread
M12 x 1,5
162 MS M16
Item no.
2083712
Thread
M16 x 1,5
162 MS M20
Item no.
2083716
Thread
M20 x 1,5
162 MS M25
Item no.
2083720
Thread
M25 x 1,5
162 MS M32
Item no.
2083724
Thread
M32 x 1,5
162 MS M40
Item no.
2083728
Thread
M40 x 1,5
162 MS M50
Item no.
2083732
Thread
M50 x 1,5
162 MS M63
Item no.
2083736
Thread
M63 x 1,5
