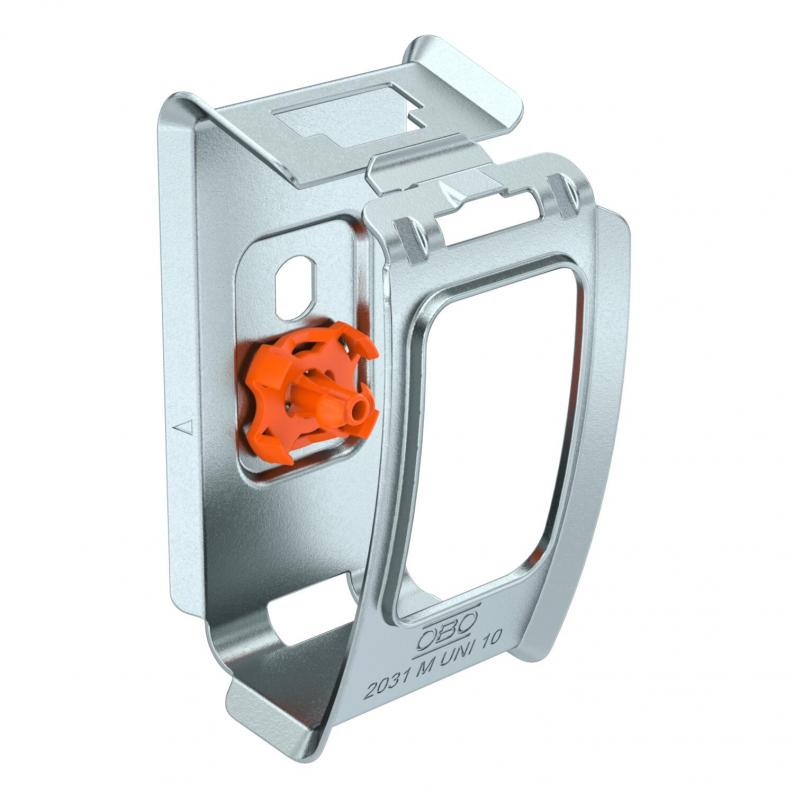

Collecting clamp Grip M UNI, metal FS, for direct fastening

Type 2031 M UNI 10 FS
|
Item no. 2207210
|
EAN 4012197490003
Item no. / Type
2207210 / 2031 M UNI 10 FS
No. of conductors NYM 3 x 1.5
10

Smallest selling unit: 50 piece

piece

Description

Metal collection clamp for laying cables on walls or ceilings. Direct fastening via a plastic adapter or via classic screw mounting through a separate fastening hole Ø 6 mm. Universal adapter for single-handed mounting with various firing tools, such as from Hilti, Würth, Spit, Bosch. High mechanical resistance also in the event of fire. Halogen-free, non-combustible. Suitable for safe mounting above fire protection ceilings. Also approved as a cable-specific variant for the maintenance of electrical functionality to DIN 4102 part 12. The lock can be opened without tools. Detailed information on the approved routing variants can be found in the appropriate testing documentation.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • gas-/battery-actuated setting tool
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90

Technical data

Technical data

Maintain electrical functionsyes
No. of conductors NYM 3 x 1.510
Halogen-freeyes
With anchorno

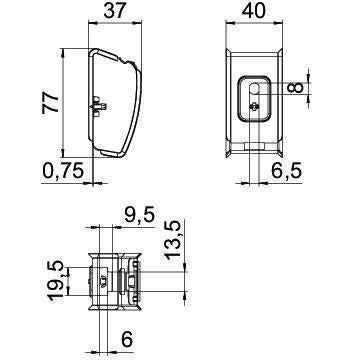

Dimension10x NYM3x1,5
SurfaceStrip galvanised
MaterialSteel
Colourzinc

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Product images (2)
Tender specifications (1)

Variants

2031 M UNI 10 FS
Item no.
2207210
No. of conductors NYM 3 x 1.5
10
