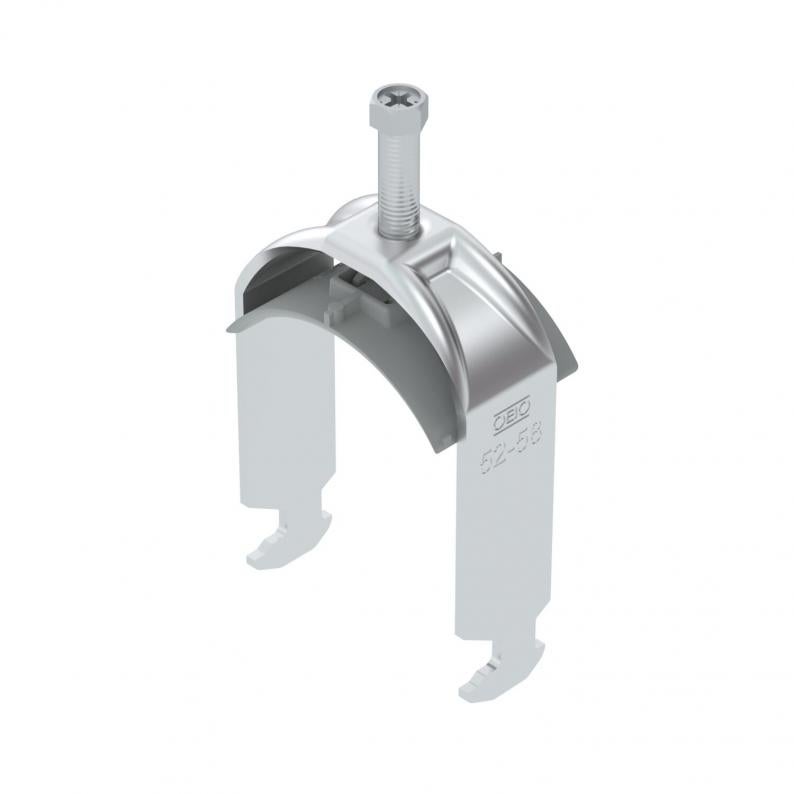

Clamp clip 2056 H-foot 1-fold, plastic pressure sleeve, AI

Clamp clip 2056 H-foot 1-fold, plastic pressure sleeve, AI

Type BS-H1-K-58 ALU
Item no. 1186456
EAN 4012196848447
Show all variants
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.

Smallest selling unit: 50 piece

piece

Description

Clamp clip with hammerhead foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length25 mm
Width64 mm
Height96 mm
Dimension L45 mm
Dimension A25 mm
Dimension B64 mm
Dimension H96 mm
Dimension t2,5 mm
Dimension C40 mm
Dimension G (mm)M8

Technical data

Plate thickness2,5 mm
For pipe diameter, min.52 mm
For pipe diameter, max.58 mm
Slot width10 mm
for rail with slot width (with interval), min.16 mm
for rail with slot width (with interval), max.17 mm
Halogen-freeyes
ThreadM8
With plastic troughyes
Length of external dimensions40 mm
Number of cables/pipes1
Surface additionUntreated
Material additionAluminium
Max. Tightening torque2 Nm
Mounting typeProfile rail
ROHS-conformantyes
Clamping range D, min.52 mm
Clamping range D, max.58 mm
Dimension52-58mm
MaterialAluminium
With counter-troughno
Material of troughPlastic
Material quality of troughPolypropylene
Product series2056 / 2058

Environmental Data

0,6047 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,6047 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,6047 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Clamping range D, min.
Clamping range D, max.
BS-H1-K-12 ALU
Item no.
1186402
Max. Tightening torque
2
Clamping range D, min.
8
Clamping range D, max.
12
BS-H1-K-16 ALU
Item no.
1186409
Max. Tightening torque
2
Clamping range D, min.
12
Clamping range D, max.
16
BS-H1-K-22 ALU
Item no.
1186416
Max. Tightening torque
2
Clamping range D, min.
16
Clamping range D, max.
22
BS-H1-K-28 ALU
Item no.
1186422
Max. Tightening torque
2
Clamping range D, min.
22
Clamping range D, max.
28
BS-H1-K-34 ALU
Item no.
1186429
Max. Tightening torque
2
Clamping range D, min.
28
Clamping range D, max.
34
BS-H1-K-40 ALU
Item no.
1186436
Max. Tightening torque
2
Clamping range D, min.
34
Clamping range D, max.
40
BS-H1-K-46 ALU
Item no.
1186442
Max. Tightening torque
2
Clamping range D, min.
40
Clamping range D, max.
46
BS-H1-K-52 ALU
Item no.
1186449
Max. Tightening torque
2
Clamping range D, min.
46
Clamping range D, max.
52
BS-H1-K-58 ALU
Item no.
1186456
Max. Tightening torque
2
Clamping range D, min.
52
Clamping range D, max.
58
BS-H1-K-64 ALU
Item no.
1186462
Max. Tightening torque
2
Clamping range D, min.
58
Clamping range D, max.
64
BS-H1-K-70 ALU
Item no.
1186469
Max. Tightening torque
2
Clamping range D, min.
64
Clamping range D, max.
70
BS-H1-K-76 ALU
Item no.
1186476
Max. Tightening torque
2
Clamping range D, min.
70
Clamping range D, max.
76
