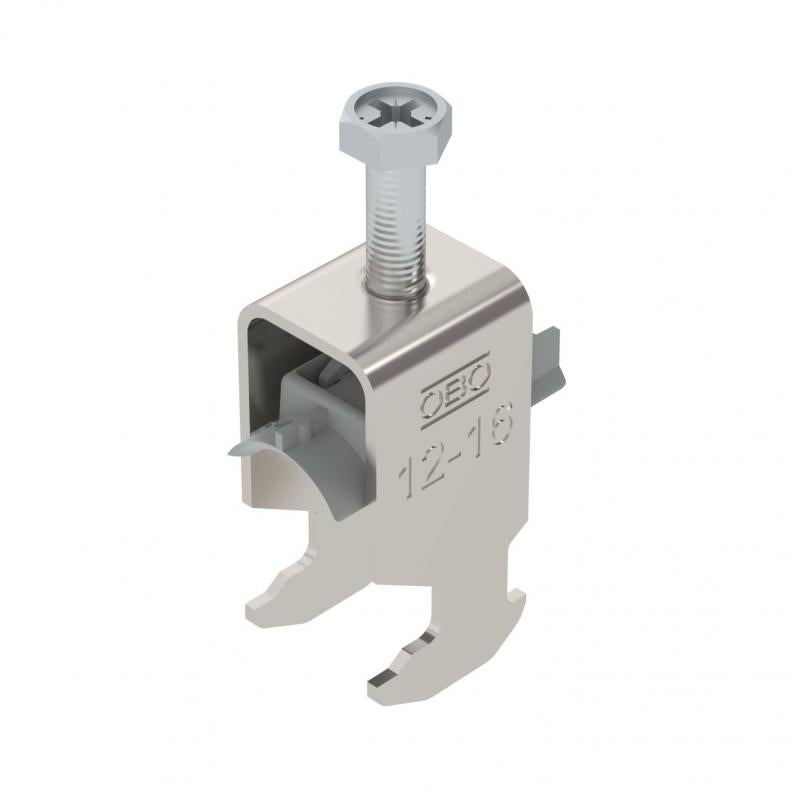

Clamp clip 2056 H-foot, 1-fold, plastic pressure sleeve, A2

Clamp clip 2056 H-foot, 1-fold, plastic pressure sleeve, A2

Type BS-H1-K-16 A2
Item no. 1186309
EAN 4012196847662
Show all variants
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.

Smallest selling unit: 50 piece

piece

Description

Clamp clip with hammerhead foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

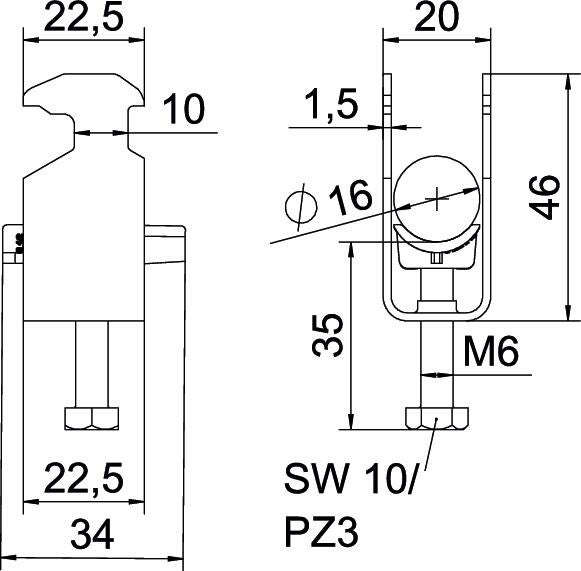

Dimensions

Length22,5 mm
Width20 mm
Height46 mm
Dimension L35 mm
Dimension A22,5 mm
Dimension B20 mm
Dimension H46 mm
Dimension t1,5 mm
Dimension C34 mm
Dimension G (mm)M6

Technical data

Plate thickness1,5 mm
For pipe diameter, min.12 mm
For pipe diameter, max.16 mm
Slot width10 mm
for rail with slot width (with interval), min.16 mm
for rail with slot width (with interval), max.17 mm
Halogen-freeyes
ThreadM6
With plastic troughyes
Length of external dimensions34 mm
Number of cables/pipes1
Surface additionUntreated
Material additionRustproof steel
Max. Tightening torque3 Nm
Mounting typeProfile rail
ROHS-conformantyes
Clamping range D, min.12 mm
Clamping range D, max.16 mm
Dimension12-16mm
SurfaceBright, treated
MaterialStainless steel 1.4301
With counter-troughno
Material of troughPlastic
Material quality of troughPolypropylene
Product series2056 / 2058

Environmental Data

0,2045 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,2045 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,2045 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
