Centre suspension mesh cable tray A4

Centre suspension mesh cable tray A4

Type GMS 270 A4
|
Item no. 6015419
|
EAN 4012196952151
Show all variants
Item no. / Type
Length
Width
Dimension B
Hole diameter

Smallest selling unit: 25 piece

piece

Description

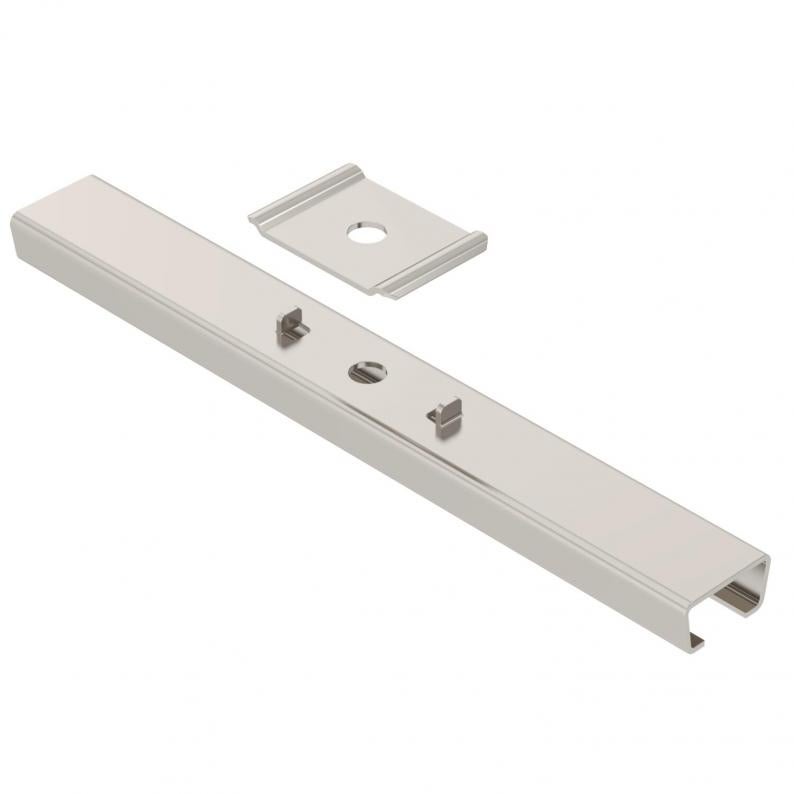

Centre suspension including hold-down clamp for mesh cable tray suspensions.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
  • Easy mounting component
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

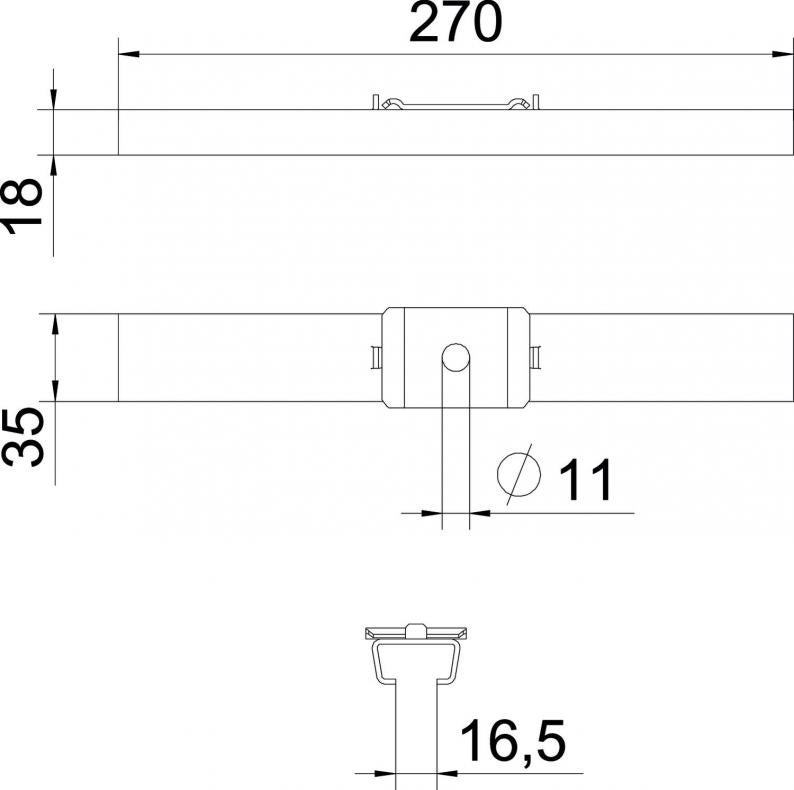

Dimensions

Length35 mm
Width270 mm
Height18 mm
Dimension B270 mm

Technical data

Maintain electrical functionsno
for width min.270
for width max.270 mm
Adjustableno
Suitable for mesh cable trayyes
Suitable for cable ladderno
Suitable for cable trayno
Hole diameter11 mm
Suitable for metric threaded rod10
Version forSuspended
ROHS-conformantyes
DimensionB270mm
SurfaceBright, treated
MaterialStainless steel 1.4404
Colourstainless steel

Environmental Data

1,8102 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate1,8102 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,8102 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Dimension B
GMS 170 A4
Item no.
6015418
Length
35
Width
170
Dimension B
170
Hole diameter
11
Colour
stainless steel
GMS 270 A4
Item no.
6015419
Length
35
Width
270
Dimension B
270
Hole diameter
11
Colour
stainless steel
GMS 370 A4
Item no.
6015420
Length
35
Width
370
Dimension B
370
Hole diameter
11
Colour
stainless steel
GMS 470 A4
Item no.
6015421
Length
35
Width
470
Dimension B
470
Hole diameter
11
Colour
stainless steel
GMS 570 A4
Item no.
6015422
Length
35
Width
570
Dimension B
570
Hole diameter
11
Colour
stainless steel
