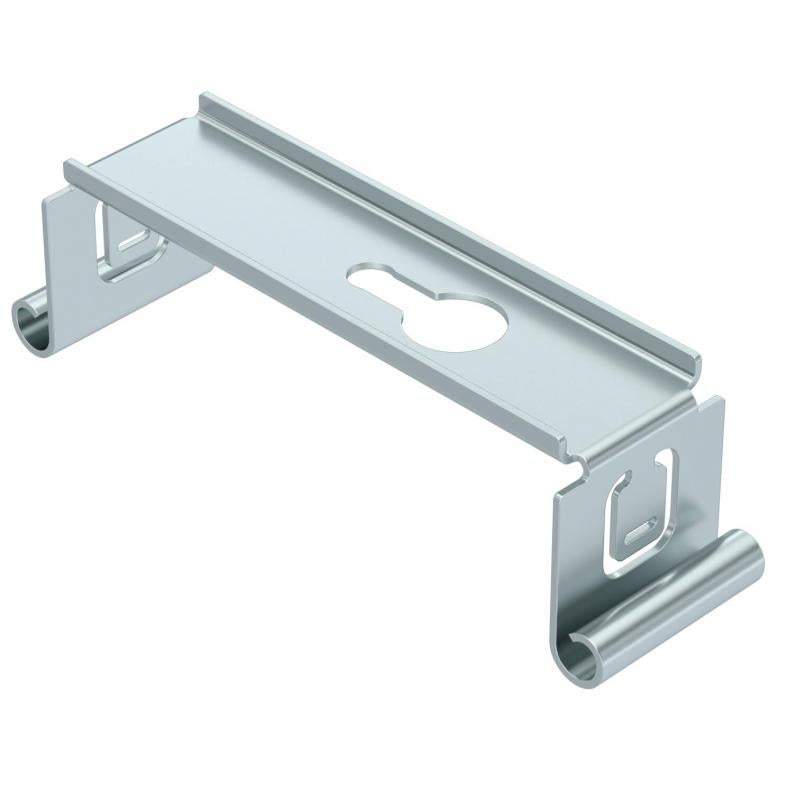

Centre suspension for cable trays with rolled side rail FS

Centre suspension for cable trays with rolled side rail FS

Type MAH 150 FS
Item no. 6358535
EAN 4012196765737
Show all variants
Item no. / Type
Length
Width
Dimension B
Hole diameter

Smallest selling unit: 1 piece

piece

Description

Centre suspension for cable trays for attachment from the side rail of the cable tray.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Centre suspension of cable trays
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length40 mm
Width150 mm
Height39,5 mm
Dimension B147 mm
Dimension B1126 mm

Technical data

Maintain electrical functionsno
for width min.150
for width max.150 mm
Adjustableno
Suitable for mesh cable trayno
Suitable for cable ladderno
Suitable for cable trayyes
Hole diameter8,5 mm
Suitable for metric threaded rod8
Version forSuspended
ROHS-conformantyes
DimensionB150mm
SurfaceStrip galvanised
MaterialSteel
Colourzinc

Environmental Data

0,2552 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,2552 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,2552 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Dimension B
MAH 050 FS
Item no.
6358500
Length
40
Width
50
Dimension B
47
Hole diameter
8,5
Colour
zinc
MAH 075 FS
Item no.
6358510
Length
40
Width
75
Dimension B
72
Hole diameter
8,5
Colour
zinc
MAH 100 FS
Item no.
6358527
Length
40
Width
100
Dimension B
97
Hole diameter
8,5
Colour
zinc
MAH 150 FS
Item no.
6358535
Length
40
Width
150
Dimension B
147
Hole diameter
8,5
Colour
zinc
MAH 200 FS
Item no.
6358543
Length
40
Width
200
Dimension B
197
Hole diameter
8,5
Colour
zinc
