Cable tray RKS-Magic® 60, OBO EcoLine, FS

Cable tray RKS-Magic® 60, OBO EcoLine, FS

Type RKSM 610 FS ECO
|
Item no. 6047609
|
EAN 4012197485887
Show all variants
Item no. / Type
Length
Width
Height
Maintain electrical functions
Plate thickness

Smallest selling unit: 3 m

m

Description

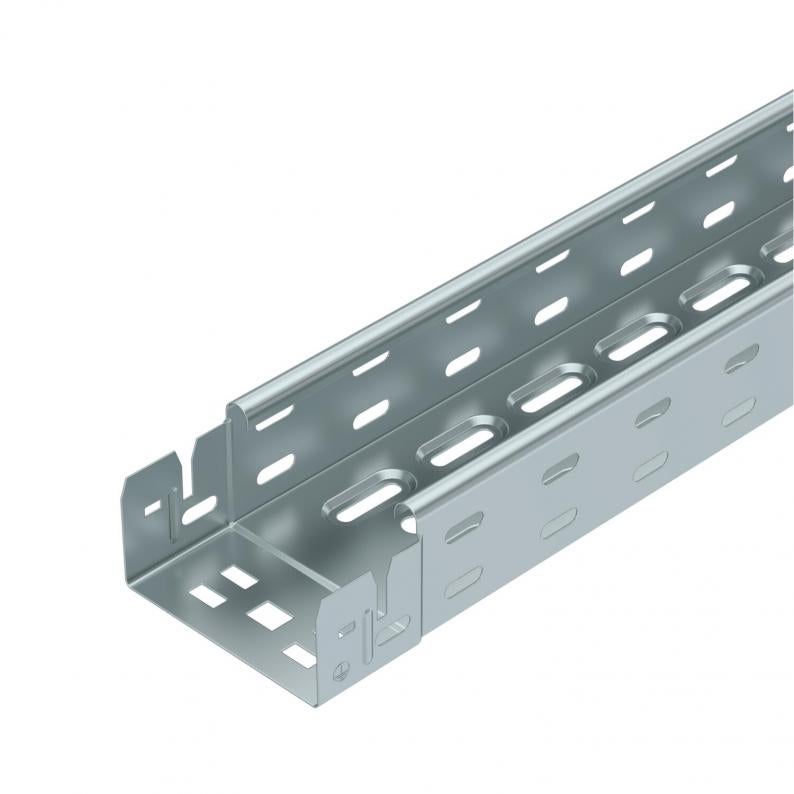

Cable tray made from CO2-reduced steel, with integrated quick-fastening system. Usable length 3,000 mm. With continuous side perforation of 7 x 20 mm for the installation of connection and mounting components. 11 mm perforation in the base for direct threaded rod susptension
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90
  • OBO ECOLine
  • CO2-reduced material
  • Packaging without plastic
  • Reusable after de-installation/dismantling
  • CO₂ footprint (PCF)
  • Recycling material ratio in %

Technical data

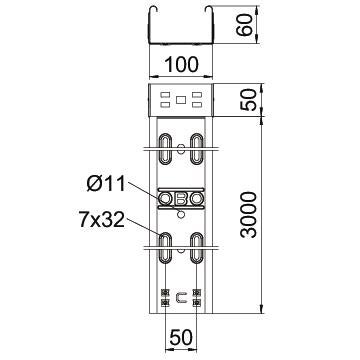

Dimensions

Length3050 mm
Width100 mm
Height60 mm
Dimension y50 mm
Dimension B100 mm
Dimension W100 mm

Technical data

Maintain electrical functionsyes
Side perforationyes
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section58 cm²
Rustproof steel, pickledno
Plate thickness0,75 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section5800 mm²
Dimension60x100
Base perforation1
Dimension60x100x3050
SurfaceStrip galvanised
MaterialSteel, CO2 reduced
Colourzinc

Loads

Support spacing 1.0 m1,2 kN/m
Support spacing 1.5 m0,9 kN/m
Support spacing 2.0 m0,6 kN/m
Support spacing 2.5 m0,4 kN/m
NEMA load class8AA

Environmental Data

1,6661 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
Recycled material content 71 %
CO2 Footprint (GWP) Cradle-to-Gate1,6661 kg CO2e / 1 Meter
CO₂ Footprint (GWP)1,6661 kg CO₂e
Determination date of CO2 value2026-03-02T00:00:00.000+0100
Declared Unit (LCA)Metres
Declared Unit Quantity (LCA)1

Accessories

System accessories
Type
RLVK 60 FS ECO

Smallest selling unit: 10 piece

piece

Type
RB 90 610 FS ECO

Smallest selling unit: 1 piece

piece

Type
RAA 610 FS ECO

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Declarations (1)
Product images (2)
Tender specifications (1)

Variants

Width
Maintain electrical functions
Plate thickness
RKSM 610 FS ECO
Item no.
6047609
Length
3050
Width
100
Height
60
Maintain electrical functions
yes
Plate thickness
0,75
Surface
Strip galvanised
Material
Steel, CO2 reduced
Colour
zinc
RKSM 620 FS ECO
Item no.
6047636
Length
3050
Width
200
Height
60
Maintain electrical functions
yes
Plate thickness
0,75
Surface
Strip galvanised
Material
Steel, CO2 reduced
Colour
zinc
RKSM 630 FS ECO
Item no.
6047652
Length
3050
Width
300
Height
60
Maintain electrical functions
yes
Plate thickness
0,75
Surface
Strip galvanised
Material
Steel, CO2 reduced
Colour
zinc
RKSM 640 FS ECO
Item no.
6047687
Length
3050
Width
400
Height
60
Maintain electrical functions
yes
Plate thickness
0,75
Surface
Strip galvanised
Material
Steel, CO2 reduced
Colour
zinc
RKSM 650 FS ECO
Item no.
6047717
Length
3050
Width
500
Height
60
Maintain electrical functions
no
Plate thickness
0,9
Surface
Strip galvanised
Material
Steel, CO2 reduced
Colour
zinc
RKSM 660 FS ECO
Item no.
6047733
Length
3050
Width
600
Height
60
Maintain electrical functions
no
Plate thickness
0,9
Surface
Strip galvanised
Material
Steel, CO2 reduced
Colour
zinc
