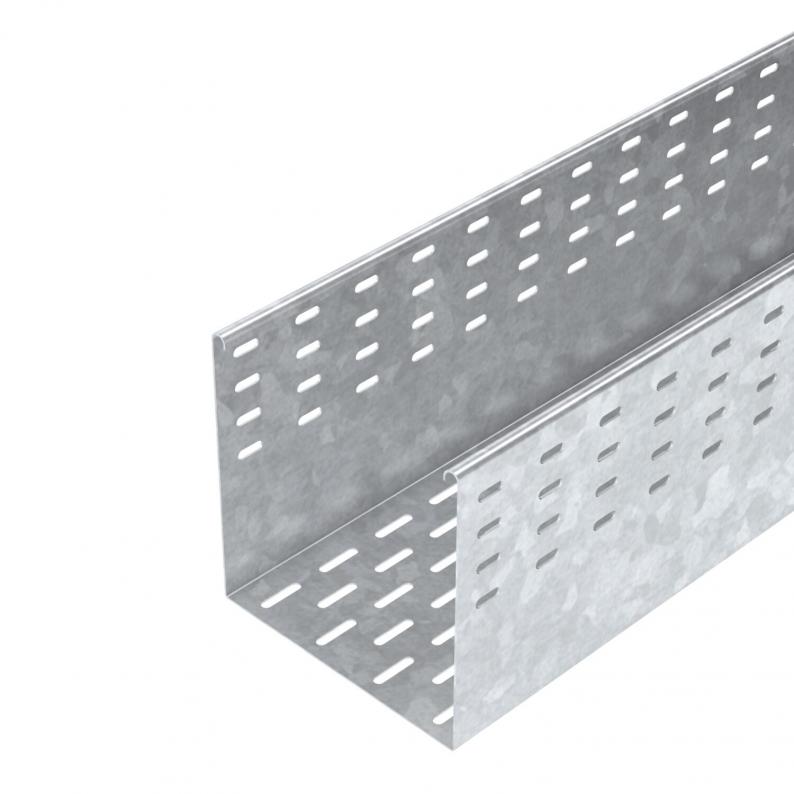

Cable tray MFR 200 FT

Cable tray MFR 200 FT

Type MFR 220 FT
Item no. 6083056
EAN 4012196947652
Show all variants
Item no. / Type
Length
Width
Plate thickness

Smallest selling unit: 3 m

m

Description

MFR = mobile radio tray

Magnetic shield insulation without cover 20 dB, with cover 50 dB.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

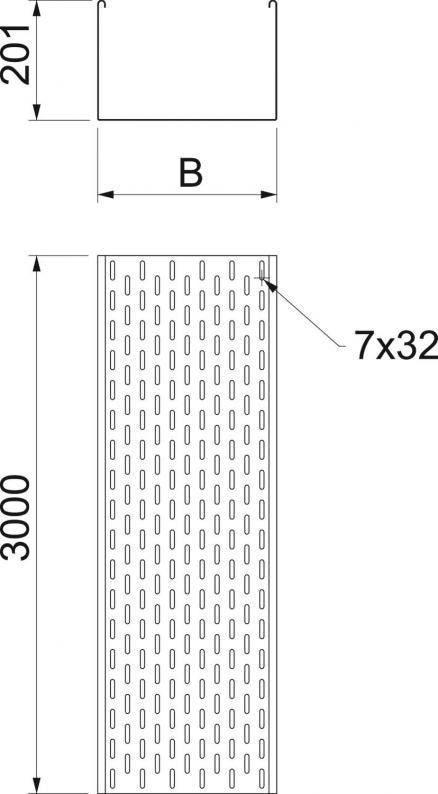

Dimensions

Length3000 mm
Width200 mm
Height200 mm
Dimension B200 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section400 cm²
Rustproof steel, pickledno
Plate thickness1,5 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section40000 mm²
With coverno
Dimension200 x 200
ROHS-conformantyes
Dimension200x200x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed
Product seriesMFR Series

Environmental Data

16,0943 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate16,0943 kg CO2e / 1 Meter
CO₂ Footprint (GWP)16,0943 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Accessories

System accessories

Item no. 7070314

Joint plate DD
Type
SSLB 200 DD

Smallest selling unit: 20 piece

piece

Type
LWVM 200 FT

Smallest selling unit: 2 piece

piece

Type
DMFR 200 FT

Smallest selling unit: 3 m

m

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)

Variants

Width
MFR 220 FT
Item no.
6083056
Length
3000
Width
200
Maintain electrical functions
no
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
MFR 230 FT
Item no.
6083060
Length
3000
Width
300
Maintain electrical functions
no
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
MFR 240 FT
Item no.
6083064
Length
3000
Width
400
Maintain electrical functions
no
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
