Cable retaining clip Signa Base HK
Type SB HK
Item no. 6132799
EAN 4012196722730
Item no. / Type
6132799 / SB HK
Cover width
80 mm
Smallest selling unit: 10 piece
10piece
piece
Description

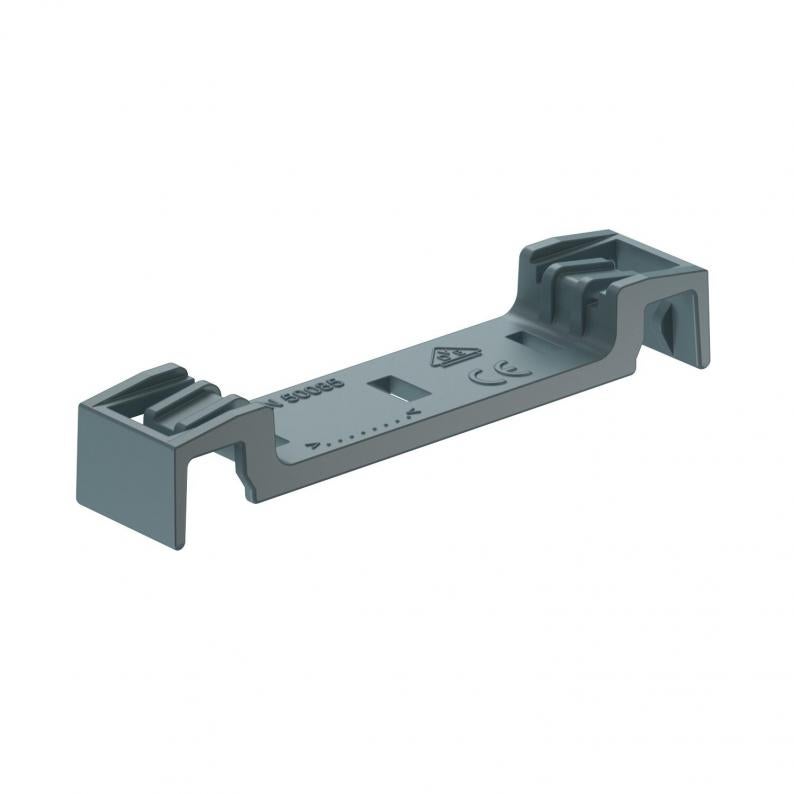

Cable retaining clip for the Signa Base device installation trunking.
For simple routing of the cables.
Technical data

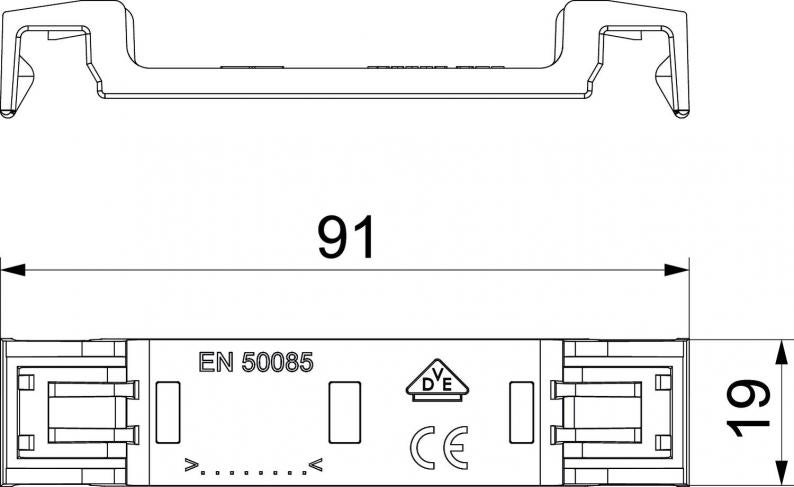

Dimensions
| Length | 91 mm |
|---|---|
| Width | 19 mm |
| Height | 15,6 mm |
Technical data
| Ceiling mounting | no |
|---|---|
| Protection rating | IP40 |
| With equipotential bonding | no |
| Protection rating IK code | IK07. |
| ROHS-conformant | yes |
| Cover width | 80 mm |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Material | Polyamide |
| Colour | blue grey; RAL 7031 |
| Product series | Signa Base |
Environmental Data
0,039 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,039 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,039 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
