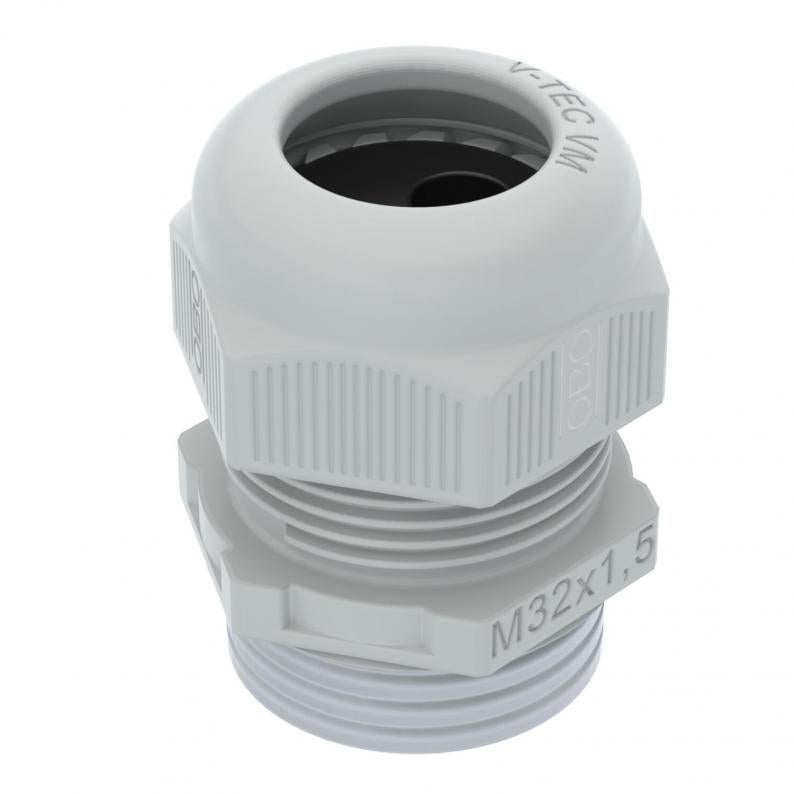

Cable gland, metric thread with multi-way seal insert, light grey

Cable gland, metric thread with multi-way seal insert, light grey

Type V-TEC VM32 2x8
Item no. 2022136
EAN 4012195896647
Show all variants
Item no. / Type
Thread
Number of drill holes

Smallest selling unit: 20 piece

piece

Description

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • UV-resistant
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 68
  • Thread metric
  • CO₂ footprint (PCF)

Technical data

Technical data

Impact-resistantno
Halogen-freeyes
Fibre-glass reinforcedno
explosion-proofno
Strain relief optionyes
Protection ratingIP68
ThreadM32 x 1,5
Number of drill holes2
For Ex zoneWithout
Thread typeMetric
Bend protectionno
With locknutno
Sealing insert, multipleyes
Flat cable glandno
Type of sealSealing ring
Splittable glandno
For Ex zone gasWithout
For Ex zone dustWithout
Thread increase1,5 mm
Nominal thread size32
Hexagonal corner dimension41 mm
WAF36
Version forStraight
ROHS-conformantyes
Thread length11 mm
Unstable torque7,5 Nm
Permitted temperature range, min.-20 °C
Permitted temperature range, max.65 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
DimensionM32
MaterialPolyamide
ColourLight grey
Product seriesV-TEC VM

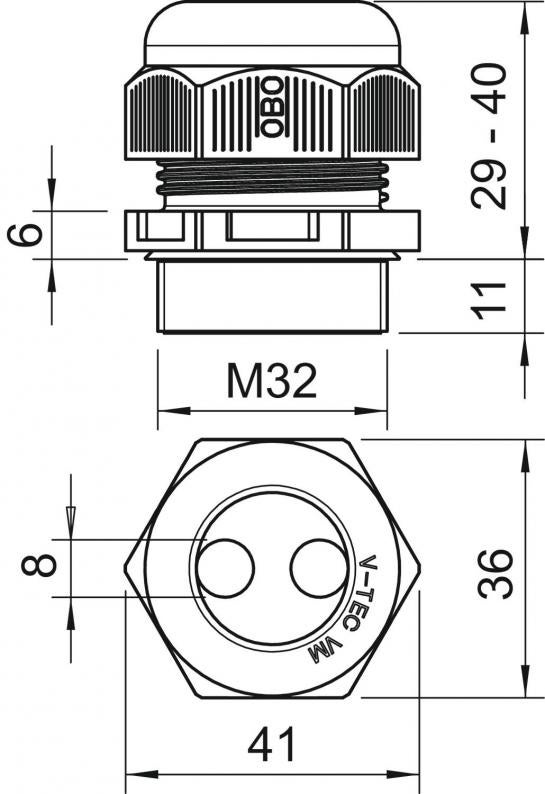

Dimensions

Dimension L min.29 mm
Dimension L max.40 mm
Dimension L111 mm
Dimension L26 mm
Dimension E41 mm
Dimension D8 mm

Environmental Data

0,1103 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,1103 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,1103 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Accessories

Mounting accessories
Type
116 M32 LGR PA

Smallest selling unit: 50 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
