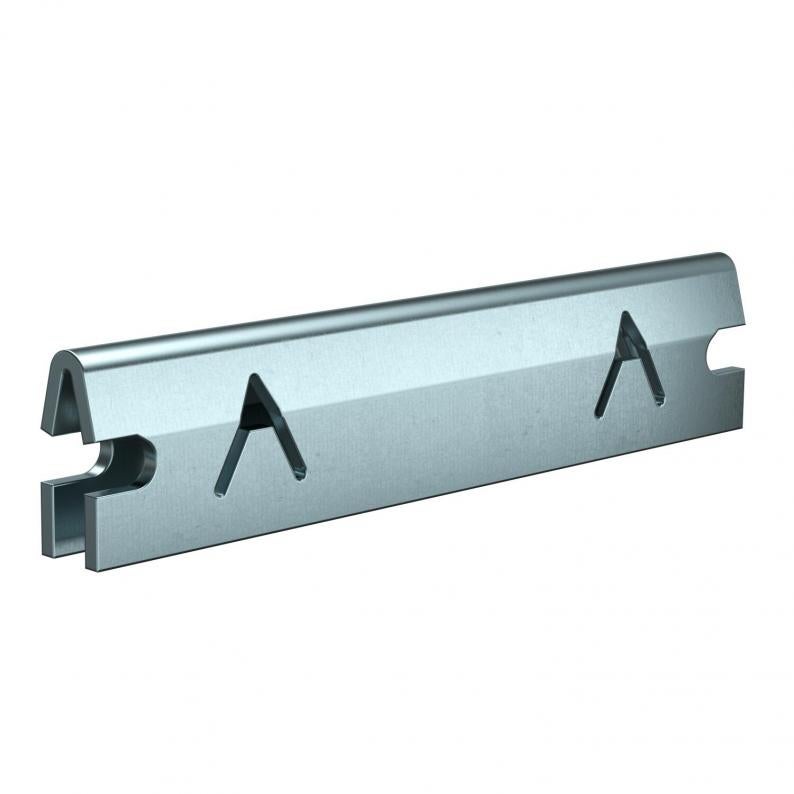

BRA ERD VB TW earthing clip
Type BRA ERD VB TW
Item no. 6133562
EAN 4012196735181
Item no. / Type
6133562 / BRA ERD VB TW
Length
40 mm
Smallest selling unit: 20 piece
20piece
piece
Description
Earthing clip for the electrical connection between partition and partition.
Also serves as a cable retaining clip.
Technical data

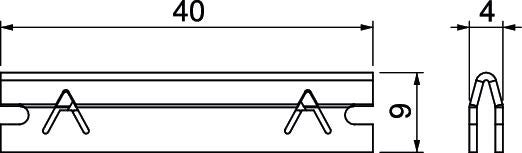

Dimensions
| Length | 40 mm |
|---|---|
| Width | 4 mm |
| Height | 9 mm |
Technical data
| Protection rating | IP30 |
|---|---|
| Protection rating IK code | IK07. |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 40x9x4 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Equipotential bonding version, device installation duct | Miscellaneous |
| Product series | Signa Style |
