BRA ERD KUP earthing coupling
Type BRA ERD KUP
Item no. 6133408
EAN 4012196723102
Item no. / Type
6133408 / BRA ERD KUP
Length
64 mm
Smallest selling unit: 10 piece
10piece
piece
Description

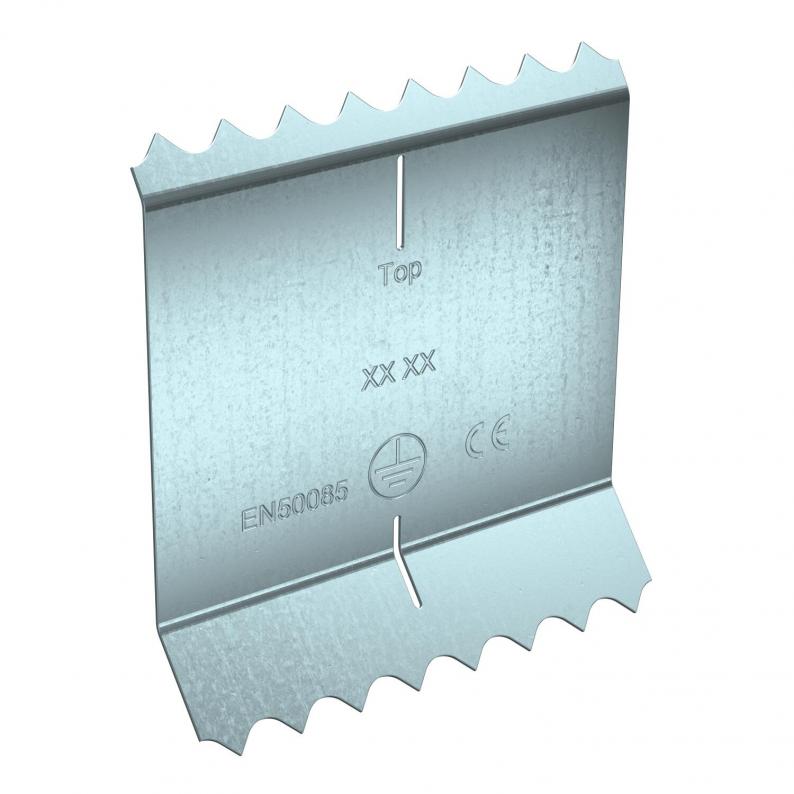

Earthing coupling for the electrical connection between base and base.
Technical data

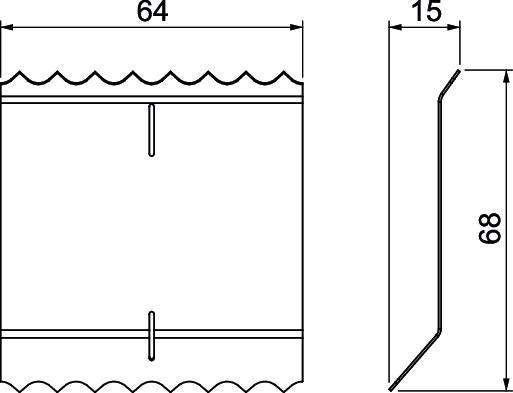

Dimensions
| Length | 64 mm |
|---|---|
| Width | 68 mm |
| Height | 15 mm |
Technical data
| Protection rating | IP30 |
|---|---|
| Protection rating IK code | IK07. |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 64x68 |
| Surface | Bright |
| Material | Stainless steel 1.4310 |
| Colour | stainless steel |
| Equipotential bonding version, device installation duct | coupling |
| Product series | Signa Style |
Environmental Data
0,1632 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1632 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,1632 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
