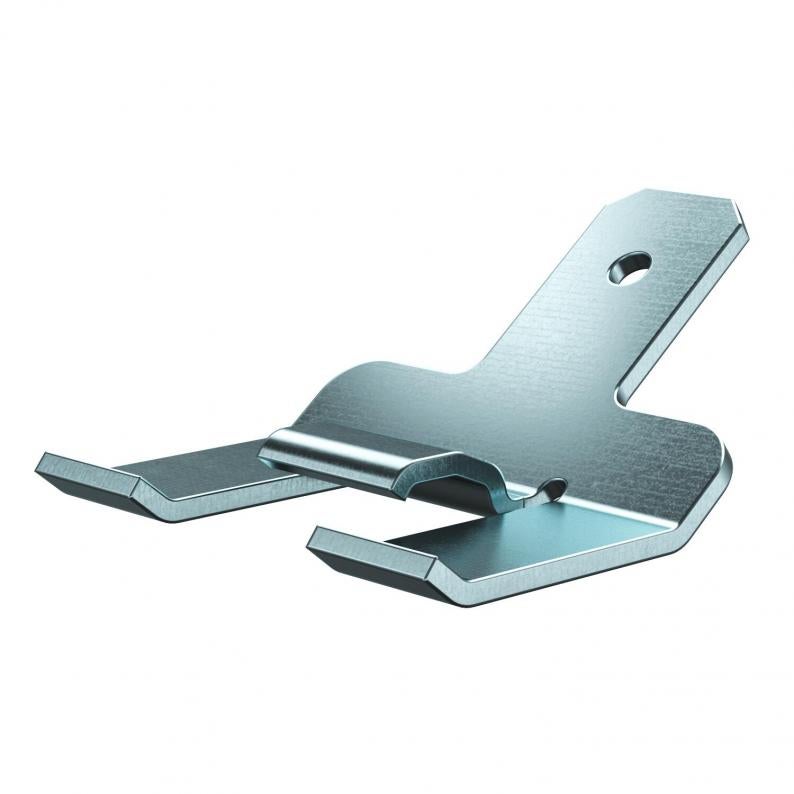

BRA ERD KL TW earthing terminal
Type BRA ERD KL TW
Item no. 6133615
EAN 4012196736522
Item no. / Type
6133615 / BRA ERD KL TW
Length
77 mm
Smallest selling unit: 100 piece
100piece
piece
Description
Earthing terminal for the electrical connection between partition and partition, when a jump has to be bridged.
Technical data
Dimensions
| Length | 77 mm |
|---|---|
| Width | 96 mm |
| Height | 40 mm |
Technical data
| Protection rating | IP30 |
|---|---|
| Protection rating IK code | IK07. |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 77x96x40 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4310 |
| Colour | stainless steel |
| Equipotential bonding version, device installation duct | Clamp spring |
| Product series | Signa Style |
