Bolt for separating retainer fastening, KRS 6x30

Bolt for separating retainer fastening, KRS 6x30

Type KRS 6x30
Item no. 3498100
EAN 4012195850069
Show all variants
Item no. / Type
3498100 / KRS 6x30

Smallest selling unit: 200 piece

piece

Description

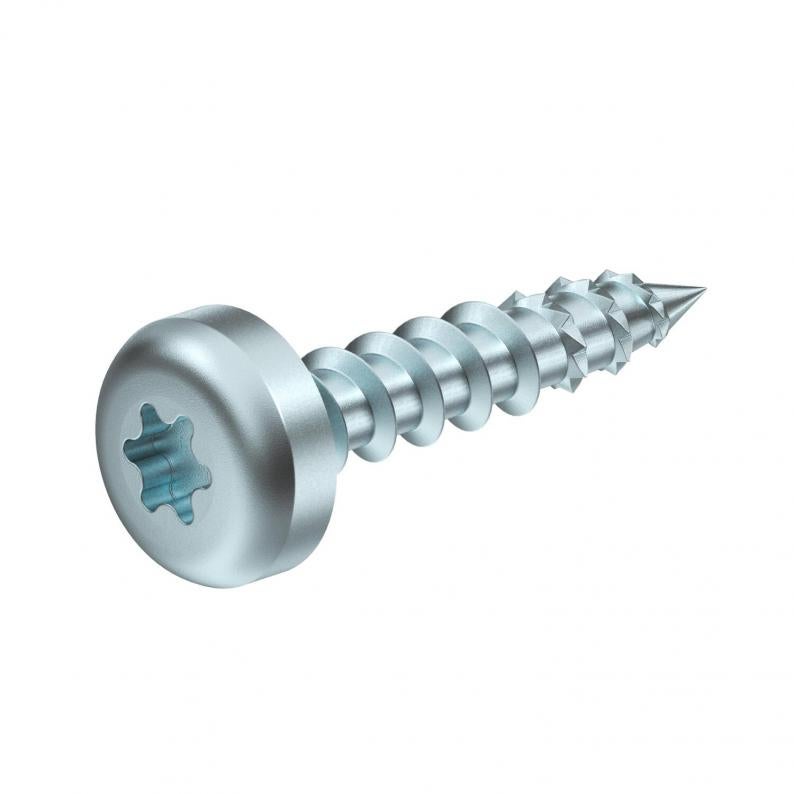

Bolt with special milling ribs for PYROLINE® Con S fire protection ducts, to fasten separating retainers in the duct.
  • Suspended fire protection duct, ceiling mounting E30
  • Suspended fire protection duct, ceiling mounting I90
  • Suspended fire protection duct, wall mounting I90
  • Suspended fire protection duct, wall mounting E30

Technical data

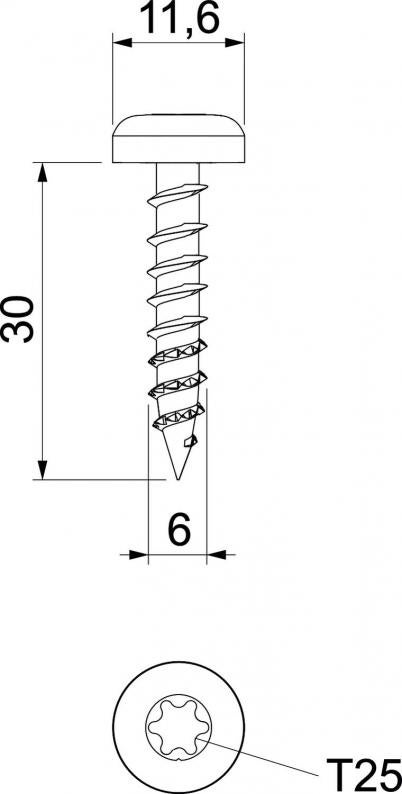

Dimensions

Dimension L30 mm
Dimension d6 mm
Dimension D11,6 mm

Technical data

Thread diameter ST6
Head shapeMiscellaneous
Screw systemTorx
ROHS-conformantyes
Dimension6x30
SurfaceElectrogalvanised, transparently-passivated
MaterialSteel
Colourzinc
