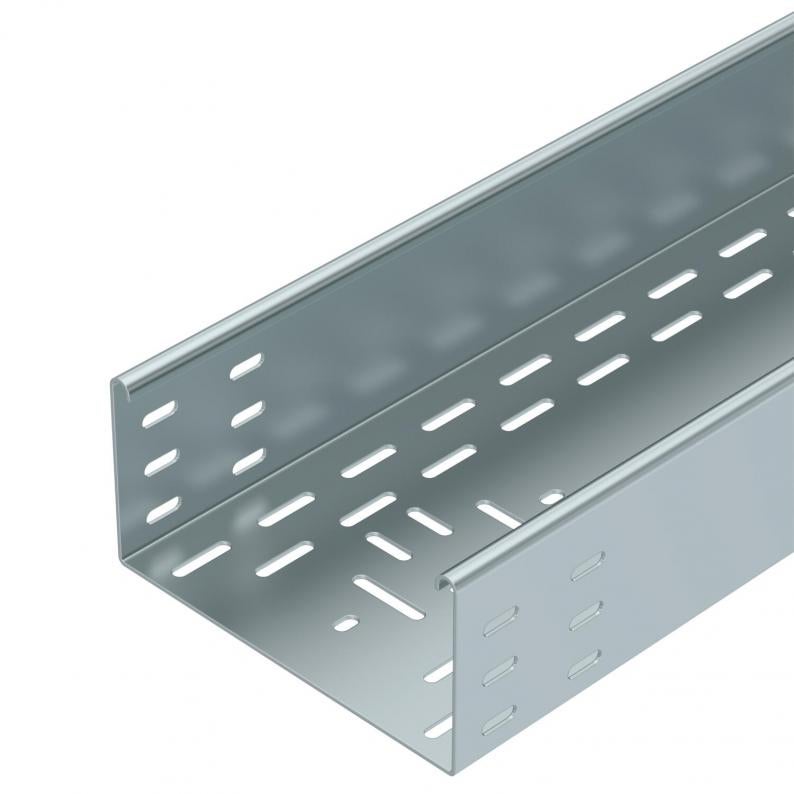

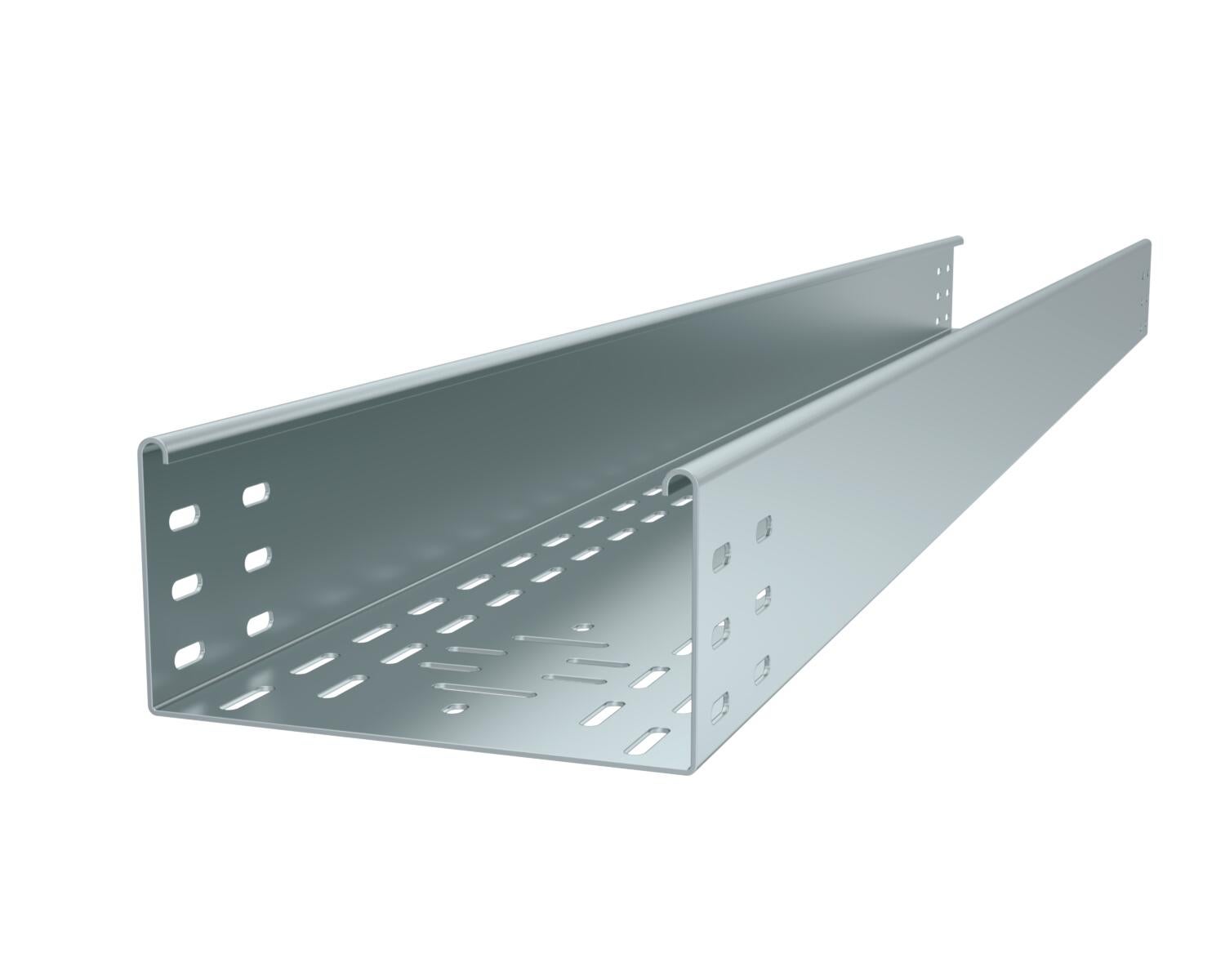

BKRS 100 cable tray, shortened FS

BKRS 100 cable tray, shortened FS

Type BKRS 1020 15 FS
Item no. 6061972
EAN 4012196709892
Show all variants
Item no. / Type
Length
Width
Plate thickness

Smallest selling unit: 1 piece

piece

Description

Cable tray fitting with shortened length, for creation the of straight sections on walkable cable trays.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

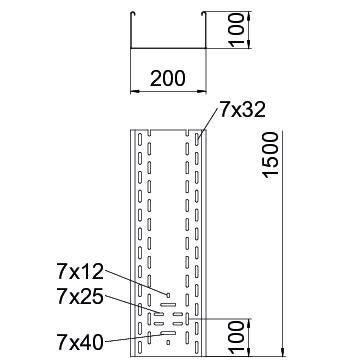

Dimensions

Length1500 mm
Width200 mm
Height100 mm
Dimension B200 mm
Dimension H100 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Usable cross-section196 cm²
Rustproof steel, pickledno
Plate thickness2 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section19600 mm²
With coverno
ROHS-conformantyes
Dimension100x200x1500
SurfaceStrip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed
Product seriesBKRS Series

Environmental Data

26,3348 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate26,3348 kg CO2e / 1 Piece
CO₂ Footprint (GWP)26,3348 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Width
BKRS 1010 15 FS
Item no.
6061970
Length
1500
Width
100
Maintain electrical functions
no
Plate thickness
2
Surface
Strip galvanised
Material
Steel
BKRS 1020 15 FS
Item no.
6061972
Length
1500
Width
200
Maintain electrical functions
no
Plate thickness
2
Surface
Strip galvanised
Material
Steel
BKRS 1030 15 FS
Item no.
6061974
Length
1500
Width
300
Maintain electrical functions
no
Plate thickness
2
Surface
Strip galvanised
Material
Steel
BKRS 1040 15 FS
Item no.
6061976
Length
1500
Width
400
Maintain electrical functions
no
Plate thickness
2
Surface
Strip galvanised
Material
Steel
BKRS 1050 15 FS
Item no.
6061978
Length
1500
Width
500
Maintain electrical functions
no
Plate thickness
2
Surface
Strip galvanised
Material
Steel
BKRS 1060 15 FS
Item no.
6061980
Length
1500
Width
600
Maintain electrical functions
no
Plate thickness
2
Surface
Strip galvanised
Material
Steel
