Beam clamp SSP 20-40, VA M8

Beam clamp SSP 20-40, VA M8

Type SSP 20-40 M8 A2
|
Item no. 1486292
|
EAN 4012196342211
Show all variants
Item no. / Type
Dimension L
Dimension B
Flange thickness F min.
Flange thickness F max.

Smallest selling unit: 25 piece

piece

Description

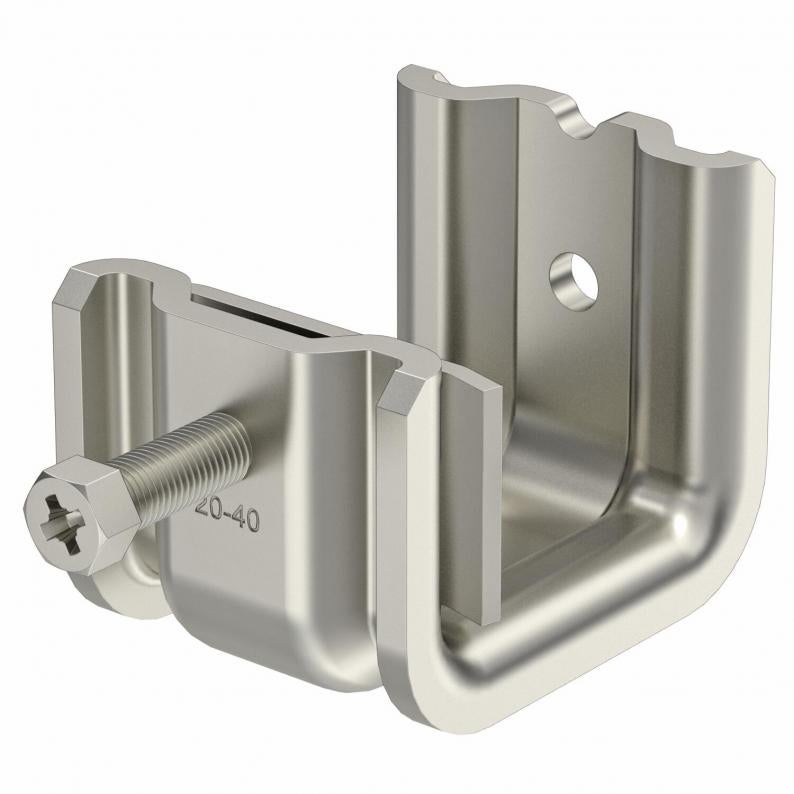

This type of support clamp is pushed onto the support and fixed to the girder or flat iron using a pressure trough and bolt (M8).The hexagonal bolt has a WAF of 10 mm. In the clip element also two more M8 threads are introduced, for example to attach threaded rods.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

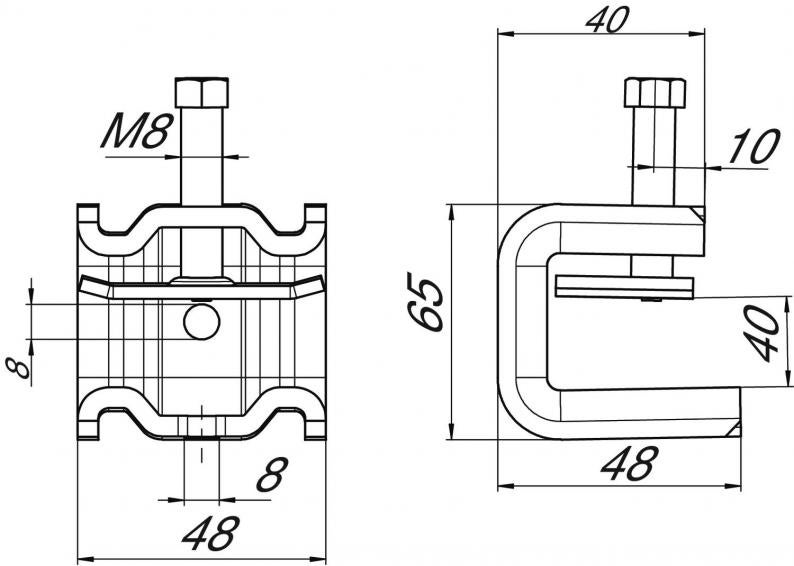

Dimensions

Dimension L47 mm
Dimension B48 mm
Dimension H65 mm

Technical data

Thread metric8
ThreadM8
Hingedno
Hinge, adjustableno
Suitable for metric threaded rod8
Breaking load F11,4 kN
Breaking load F21,3 kN
ROHS-conformantyes
Fastening typeClamp
Connection type/componentThread
Flange thickness F min.20 mm
Flange thickness F max.40 mm
Dimension20-40mm
SurfaceBright, treated
MaterialStainless steel 1.4301
Product seriesSupport clamp

Environmental Data

1,3105 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate1,3105 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,3105 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

SSP 20-40 M8 A2
Item no.
1486292
Dimension L
47
Dimension B
48
Flange thickness F min.
20
Flange thickness F max.
40
SSP 20-40 M8 A4
Item no.
1486294
Dimension L
47
Dimension B
48
Flange thickness F min.
20
Flange thickness F max.
40
