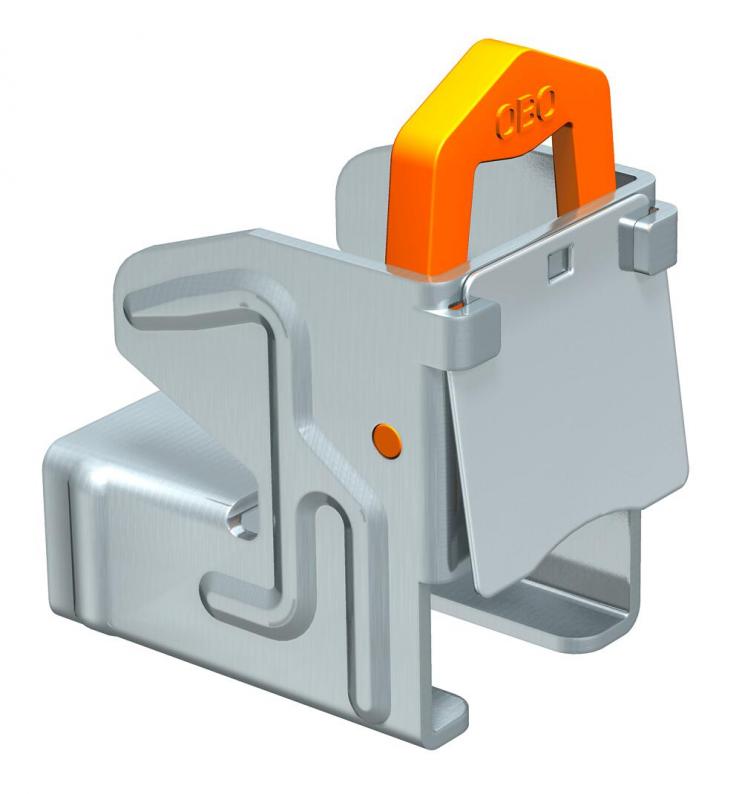

Beam clamp, for profile rail CM3518

Beam clamp, for profile rail CM3518

Type 328 2
Item no. 1408046
EAN 4012195126850
Show all variants
Item no. / Type
Length
Width
Height
Dimension L
Dimension B
Flange thickness F min.
Flange thickness F max.

Smallest selling unit: 50 piece

piece

Description

Screwless rustproof coated beam clamp, with blocking spring, suitable for profile rail, type CML3518 and CMS3518. For rapid fastening to steel profiles when installing cable tracks, clamp clips, light mounts, etc. A complete system consists of 2 beam clamps and one piece of C profile rail of any length, and 2 end caps.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

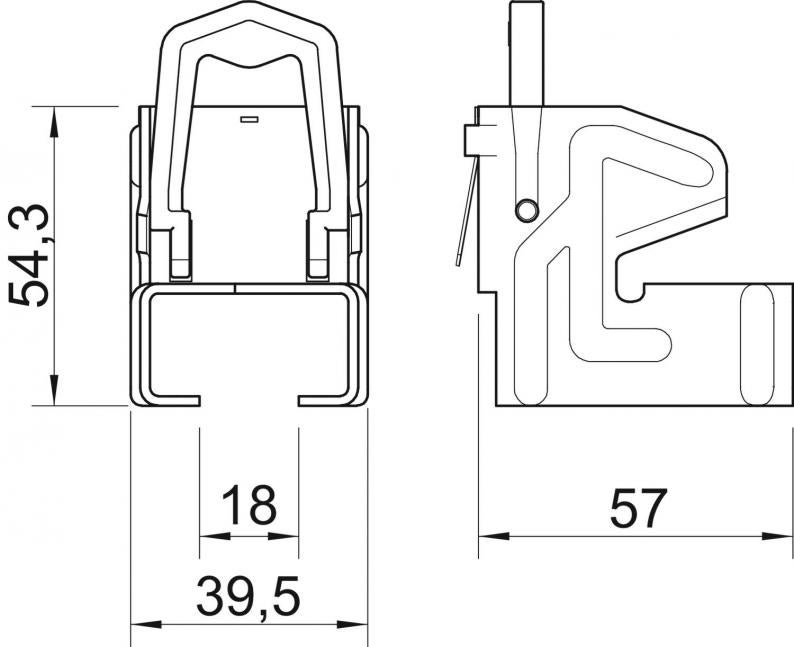

Dimensions

Length67 mm
Width39,5 mm
Height54,3 mm
Dimension L67 mm
Dimension B39,5 mm
Dimension H54,3 mm

Technical data

Hingedno
Hinge, adjustableno
ROHS-conformantyes
Fastening typeClamp
Connection type/componentMiscellaneous
Flange thickness F min.10 mm
Flange thickness F max.19 mm
Dimension10-19mm
SurfaceZinc slat
MaterialSteel
Product seriesRail system

Environmental Data

0,3813 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,3813 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,3813 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Declarations (5)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Length
Dimension L
Flange thickness F min.
Flange thickness F max.
328 1
Item no.
1408011
Length
57
Width
39,5
Height
54,3
Dimension L
57
Dimension B
39,5
Flange thickness F min.
5
Flange thickness F max.
11
328 2
Item no.
1408046
Length
67
Width
39,5
Height
54,3
Dimension L
67
Dimension B
39,5
Flange thickness F min.
10
Flange thickness F max.
19
