Audio cinch connection, 1 module, straight outlet, as soldered connection, pure white

Audio cinch connection, 1 module, straight outlet, as soldered connection, pure white

Type MTG-2R L RW1
Item no. 6105042
EAN 4012195900467
Show all variants
Item no. / Type
Colour

This item is a discontinued product!

Smallest selling unit: 1 piece

piece

Description

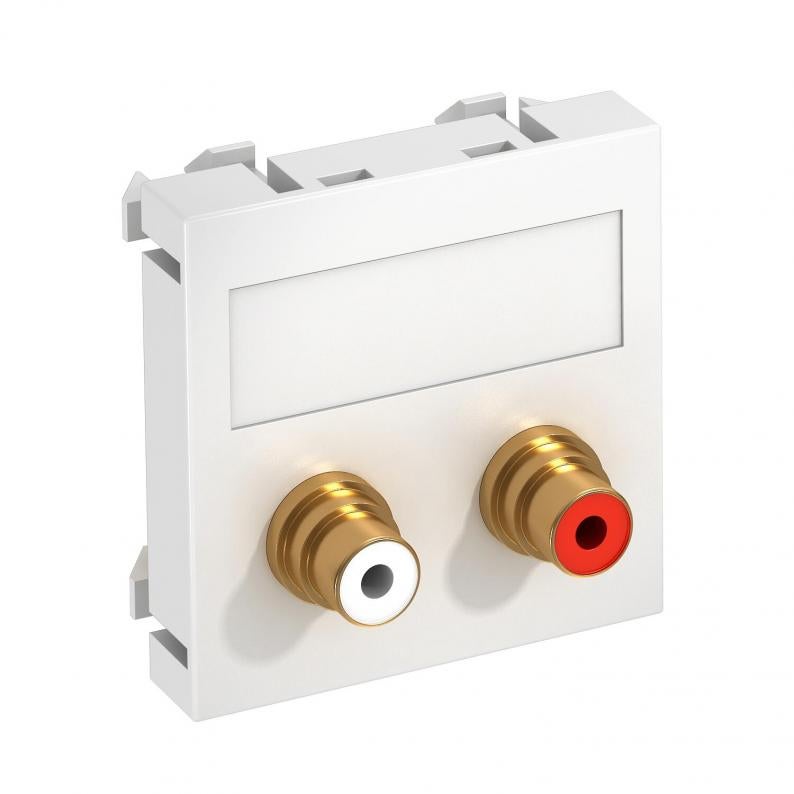

Multimedia support with two cinch connection sockets for audio R/L, straight cable outlet, with labelling panel, two cinch sockets (RCA) with soldered connection, colour coding red/white. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

  • CO₂ footprint (PCF)

Technical data

Technical data

Hinged coverno
Halogen-freeyes
Number of units1
Strain relief optionno
Protection ratingIP20
Support ringno
With dust protectionno
With printed labelno
Lamp-wire connectorno
Surface versionMatt
Transparentno
CombinationBasic element with central cover plate
UseCinch
Fastening typeLock
ROHS-conformantyes

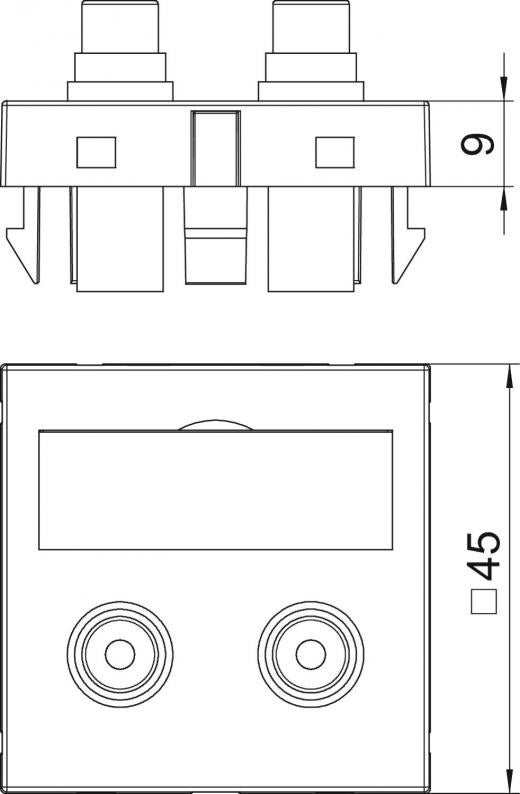

Dimension45x45mm
MaterialPolycarbonate
ColourPure white; RAL 9010
Product seriesModul 45® Multimedia

Environmental Data

0,0961 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0961 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0961 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)

Variants

Colour
MTG-2R L RW1
Item no.
6105042
Use
Cinch
Colour
Pure white; RAL 9010
MTG-2R L SWGR1
Item no.
6105045
Use
Cinch
Colour
Black-grey; RAL 7021
Outlet direction
Straight
MTG-2R L AL1
Item no.
6105048
Use
Cinch
Colour
Aluminium painted
