AML3518P anchor rail, slot 16.5 mm, round-perforated FT

AML3518P anchor rail, slot 16.5 mm, round-perforated FT

Type AML3518P0100SOFT
|
Item no. 1119834
|
EAN 4012195490210
Show all variants
Item no. / Type
Length
Width
Height
Material thickness

Smallest selling unit: 100 piece

piece

Description

Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16.5 mm for C profile
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

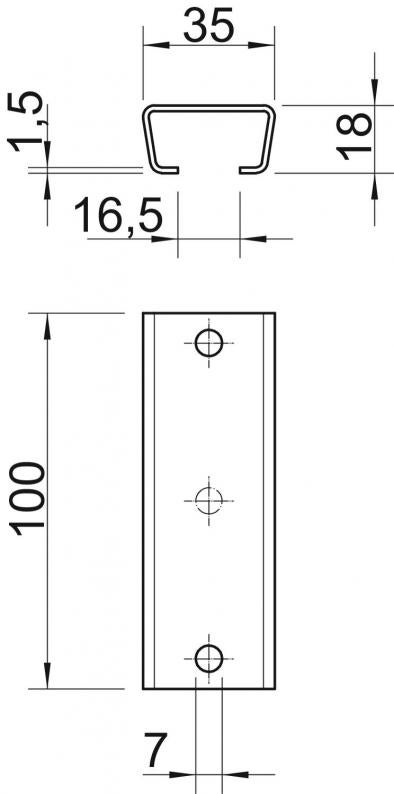

Dimensions

Length100 mm
Width35 mm
Height18 mm
Dimension L100 mm

Technical data

Maintain electrical functionsyes
Slot width16,5 mm
Material thickness1,5 mm
Static value A0,96 cm²
Static value ly0,49 cm⁴
Static value lz1,85 cm⁴
Static value Wy0,44 cm³
Static value Wz1,05 cm³
Profile shapeC profile
Type of perforationPerforated back
Drill hole spacing, centre50 mm
With perforationyes
Breakableno
With toothingno
Version forSingle profile
Dimension100x35x18
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

0,2178 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,2178 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,2178 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Product images (2)
Tender specifications (1)

Variants

Length
AML3518P0200SOFT
Item no.
1119826
Length
200
Width
35
Height
18
Material thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
AML3518P0100SOFT
Item no.
1119834
Length
100
Width
35
Height
18
Material thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
