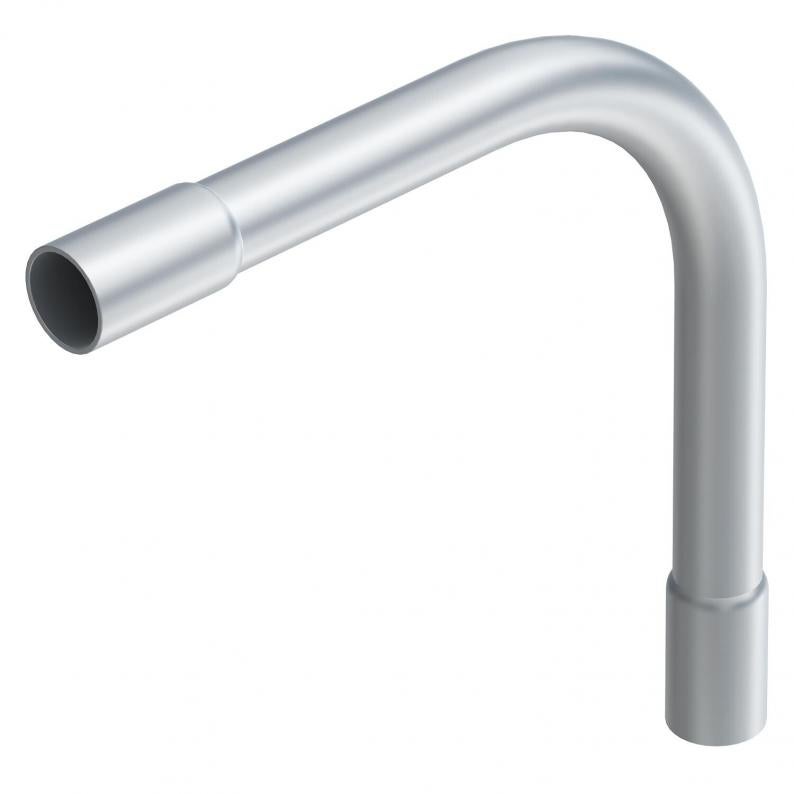

Aluminium pipe bend, without thread
Type SB32W ALU
Item no. 2046015
EAN 4012195925910
Item no. / Type
For nominal pipe diameter
Smallest selling unit: 20 piece
20piece
piece
Description
90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
Technical data

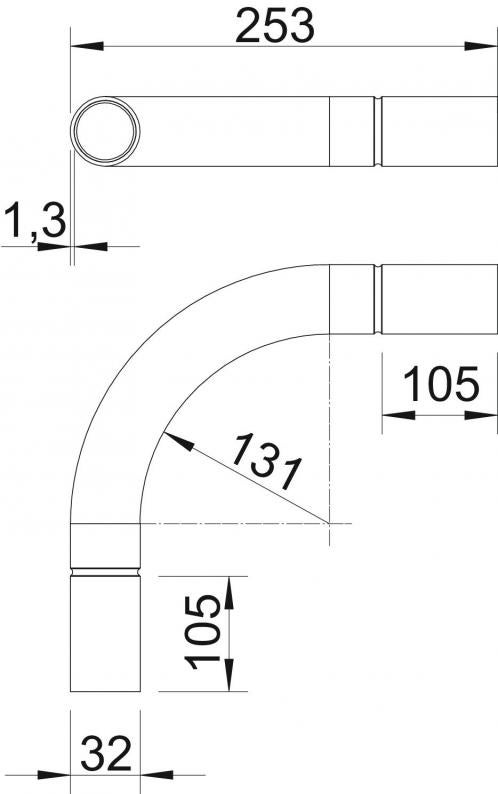

Dimensions
| Dimension A | 105 mm |
|---|---|
| Dimension B | 253 mm |
| Dimension t | 1,3 mm |
| Dimension m (mm) | M32 |
| Dimension l | 40 mm |
| Dimension R | 115 mm |
| Dimension D | 32,2 mm |
Technical data
| Halogen-free | no |
|---|---|
| Angle of the bend | 90 ° |
| Polished surface | no |
| With sleeve | yes |
| Flexible | no |
| Brushed surface | no |
| With inspection opening and lid | no |
| Two-part | no |
| For nominal pipe diameter | 32 mm |
| Version for | Connector |
| ROHS-conformant | yes |
| Permitted temperature range, min. | -45 °C |
| Permitted temperature range, max. | 250 °C |
| Dimension | Ø32mm |
| Material | Aluminium |
| Product series | Metal pipes |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Certificates (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)
