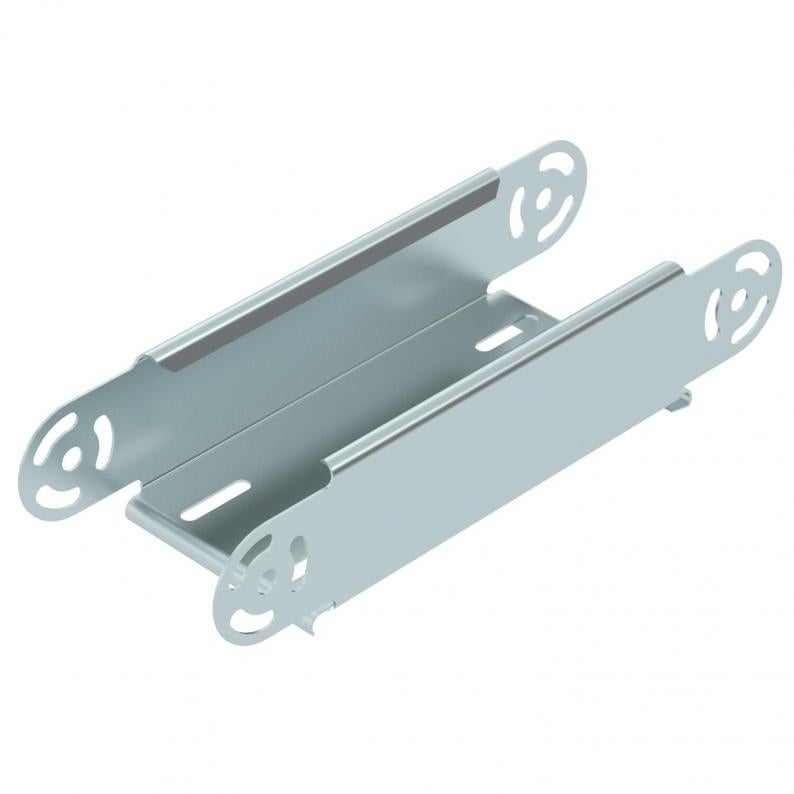

Adjustable bend element, vertical 60 FS
Type RGBEV 610 FS
Item no. 7005326
EAN 4012196216550
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
Adjustable vertical bend element, for all cable tray types with a side height of 60 mm.
RGV 60 adjustable connectors should be ordered separately and in the appropriate quantity.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | Adjustable |
| Change of direction | Vertical, rising/falling |
| Type | Adjustable bend element |
| ROHS-conformant | yes |
| Dimension | 60x100 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Environmental Data
1,8747 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,8747 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 1,8747 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
RGBEV 610 FS
100
Strip galvanised
Steel
zinc
7005326
RGBEV 615 FS
150
Strip galvanised
Steel
zinc
7005334
RGBEV 620 FS
200
Strip galvanised
Steel
zinc
7005342
RGBEV 630 FS
300
Strip galvanised
Steel
zinc
7005369
RGBEV 640 FS
400
Strip galvanised
Steel
zinc
7005385
RGBEV 650 FS
500
Strip galvanised
Steel
zinc
7005407
RGBEV 660 FS
600
Strip galvanised
Steel
zinc
7005423
