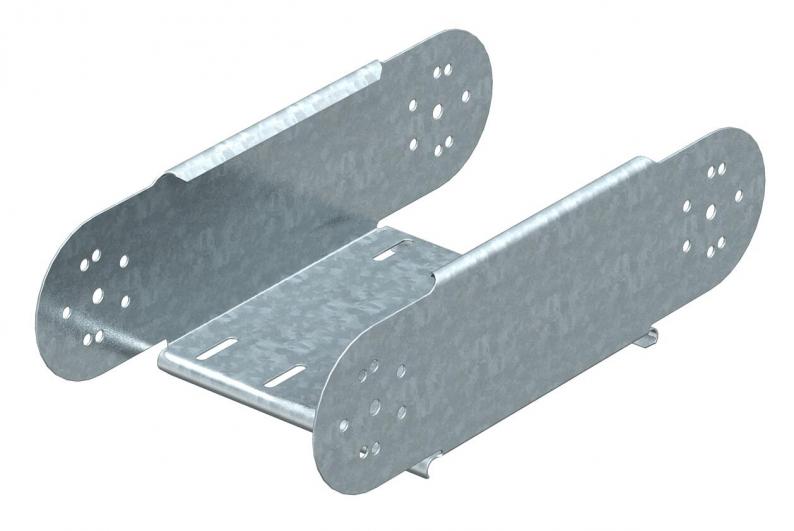

Adjustable bend element, vertical 110 FS
Type RGBEV 110 FS
Item no. 7005628
EAN 4012196217274
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
Adjustable bend element, vertical, for all cable tray types with a side height of 110 mm.
RGV 110 adjustable connectors should be ordered separately and in the appropriate quantity.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | Adjustable |
| Change of direction | Vertical, rising/falling |
| Type | Adjustable bend element |
| ROHS-conformant | yes |
| Dimension | 110x100 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Environmental Data
3,6411 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 3,6411 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 3,6411 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
RGBEV 110 FS
100
Strip galvanised
Steel
zinc
7005628
RGBEV 115 FS
150
Strip galvanised
Steel
zinc
7005636
RGBEV 120 FS
200
Strip galvanised
Steel
zinc
7005644
RGBEV 130 FS
300
Strip galvanised
Steel
zinc
7005660
RGBEV 140 FS
400
Strip galvanised
Steel
zinc
7005687
RGBEV 150 FS
500
Strip galvanised
Steel
zinc
7005709
RGBEV 160 FS
600
Strip galvanised
Steel
zinc
7005723
Width
RGBEV 110 FS
Item no.
7005628
Width
100
Surface
Strip galvanised
Material
Steel
Colour
zinc
RGBEV 115 FS
Item no.
7005636
Width
150
Surface
Strip galvanised
Material
Steel
Colour
zinc
RGBEV 120 FS
Item no.
7005644
Width
200
Surface
Strip galvanised
Material
Steel
Colour
zinc
RGBEV 130 FS
Item no.
7005660
Width
300
Surface
Strip galvanised
Material
Steel
Colour
zinc
RGBEV 140 FS
Item no.
7005687
Width
400
Surface
Strip galvanised
Material
Steel
Colour
zinc
RGBEV 150 FS
Item no.
7005709
Width
500
Surface
Strip galvanised
Material
Steel
Colour
zinc
RGBEV 160 FS
Item no.
7005723
Width
600
Surface
Strip galvanised
Material
Steel
Colour
zinc
