Adjustable bend element 110 FT

Adjustable bend element 110 FT

Type LGBE 1145 FT
Item no. 6225516
EAN 4012196445127
Show all variants
Item no. / Type
Width
Rail thickness
DELIVERY TIME ON REQUEST

Smallest selling unit: 1 piece

piece

Description

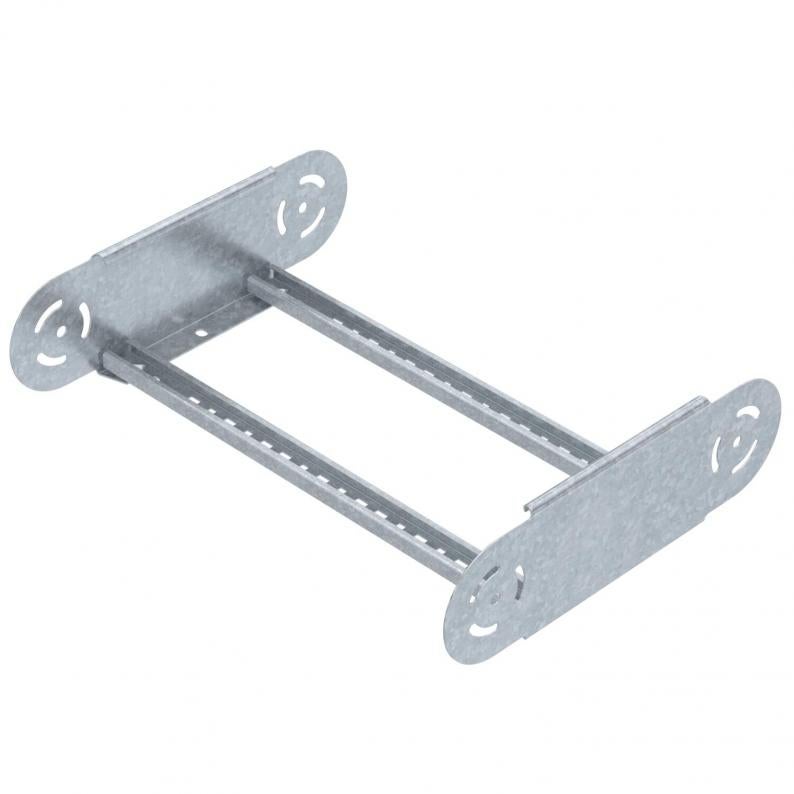

Adjustable bend element with welded rung for use in the cable ladder types with a side height of 110 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width450 mm
Height110 mm
Dimension B450 mm
Dimension R450 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Bend (angle)Adjustable
Version of the rungsProfile perforated
Hingedyes
Side rail versionFlat profile
Change of directionVertical, rising/falling
ROHS-conformantyes
Rail thickness1,5 mm
Dimension110x450
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

4,4663 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate4,4663 kg CO2e / 1 Piece
CO₂ Footprint (GWP)4,4663 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Accessories

Mounting accessories
Type
FRSB 6x12 F

Smallest selling unit: 100 piece

piece

Item no. 6216653

Adjustable connector FT
Type
LGVG 110 FT

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
LGBE 1120 FT
Item no.
6225510
Width
200
Rail thickness
1,5
LGBE 1130 FT
Item no.
6225512
Width
300
Rail thickness
1,5
LGBE 1140 FT
Item no.
6225514
Width
400
Rail thickness
1,5
LGBE 1145 FT
Item no.
6225516
Width
450
Rail thickness
1,5
LGBE 1150 FT
Item no.
6225518
Width
500
Rail thickness
1,5
LGBE 1160 FT
Item no.
6225520
Width
600
Rail thickness
1,5
