Add-on tee, OBO EcoLine, FS

Add-on tee, OBO EcoLine, FS

Type RAA 640 FS ECO
|
Item no. 6042181
|
EAN 4012197485214
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

Add-on tee made from CO2-reduced steel for the creation of a horizontal branch or cross-over. Fitting for latchable and screwable cable trays, side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • OBO ECOLine
  • CO2-reduced material
  • Packaging without plastic
  • Reusable after de-installation/dismantling
  • CO₂ footprint (PCF)
  • Recycling material ratio in %

Technical data

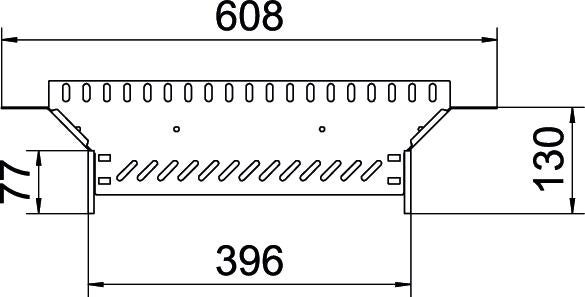

Dimensions

Width400 mm
Height60 mm
Dimension B400 mm

Technical data

Maintain electrical functionsyes
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1 mm
NATO hole patternno
Material thickness, floor plate1 mm
Departing width400 mm
Rail thickness1,25 mm
Permitted temperature range, min.-20 °C
Permitted temperature range, max.120 °C
Dimension60x400
SurfaceStrip galvanised
MaterialSteel, CO2 reduced
Colourzinc
Type of connector, cable support systemscrewed/clamped
Recommended quantity of bolts14 St.

Environmental Data

1,3411 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
Recycled material content 72 %
CO2 Footprint (GWP) Cradle-to-Gate1,3411 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,3411 kg CO₂e
Determination date of CO2 value2026-03-02T00:00:00.000+0100
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Product images (2)
Tender specifications (1)

Variants

Width
RAA 610 FS ECO
Item no.
6042175
Width
100
Colour
zinc
RAA 620 FS ECO
Item no.
6042177
Width
200
Colour
zinc
RAA 630 FS ECO
Item no.
6042179
Width
300
Colour
zinc
RAA 640 FS ECO
Item no.
6042181
Width
400
Colour
zinc
RAA 650 FS ECO
Item no.
6042183
Width
500
Colour
zinc
RAA 660 FS ECO
Item no.
6042185
Width
600
Colour
zinc
