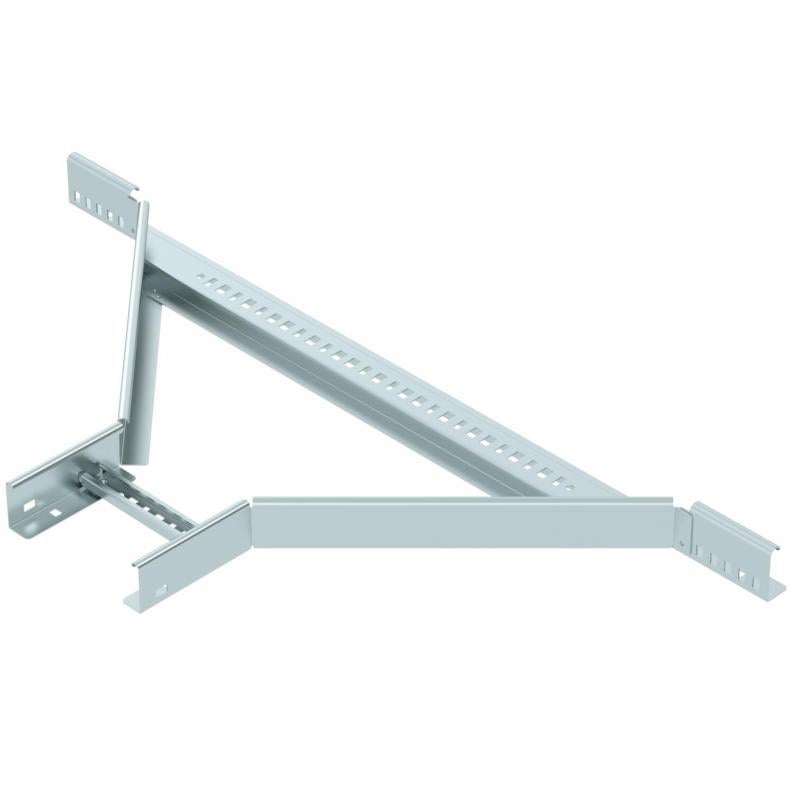

Add-on tee 60 FS

Add-on tee 60 FS

Type LAA 620 R3 FS
Item no. 6225850
EAN 4012196445387
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

Mounting/branch with welded rung for use in the cable ladder types with a side height of 60 mm.

Connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width200 mm
Height60 mm
Dimension B200 mm
Dimension R300 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Version of the rungsProfile perforated
Side rail versionFlat profile
ROHS-conformantyes
Rail thickness1,5 mm
Dimension60x200
SurfaceStrip galvanised
MaterialSteel
Colourzinc

Environmental Data

11,4705 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate11,4705 kg CO2e / 1 Piece
CO₂ Footprint (GWP)11,4705 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Accessories

Mounting accessories
Type
LVG 60 FS

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
LAA 620 R3 FS
Item no.
6225850
Width
200
LAA 630 R3 FS
Item no.
6225852
Width
300
LAA 640 R3 FS
Item no.
6225854
Width
400
LAA 650 R3 FS
Item no.
6225856
Width
500
LAA 660 R3 FS
Item no.
6225858
Width
600
