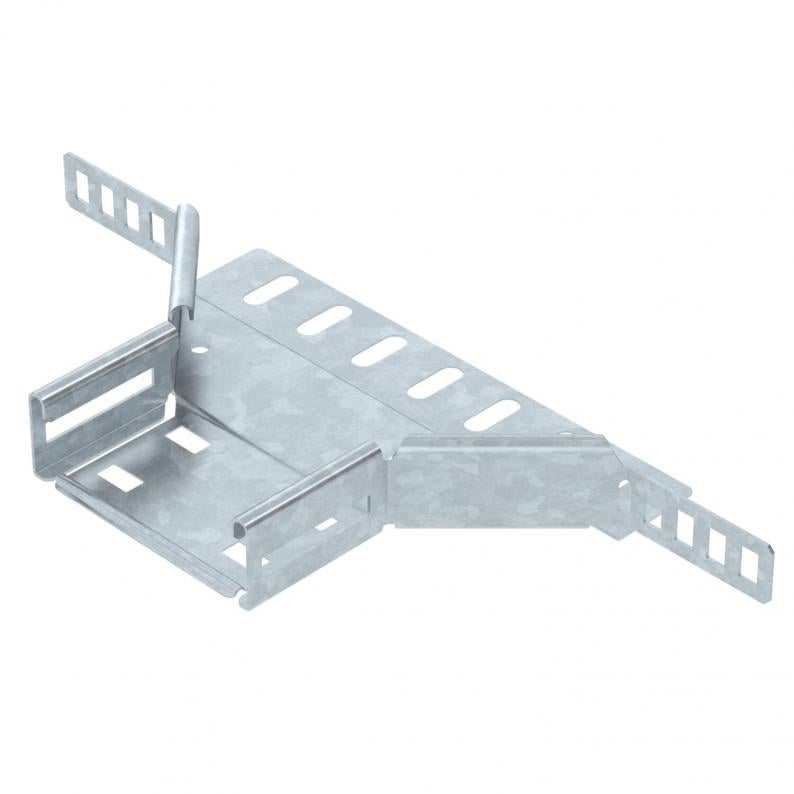

Add-on tee 35 FT

Add-on tee 35 FT

Type RAA 310 FT
Item no. 6042201
EAN 4012197342272
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

Add-on tee for the creation of a horizontal branch or cross-over, fitting for lock and screw-on cable trays of side height 35 mm. Screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Height35 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness0,8 mm
NATO hole patternno
Material thickness, floor plate0,8 mm
Departing width100 mm
ROHS-conformantyes
Rail thickness1,25 mm
Permitted temperature range, min.-20 °C
Permitted temperature range, max.120 °C
Dimension35x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed
Recommended quantity of bolts6 St.
Product seriesMKSM Series, MKS Series, RKSM Series, SKS Series

Environmental Data

0,9368 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,9368 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,9368 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Accessories

System accessories
Mounting accessories

Item no. 6042431

Cover for add-on tee DD
Type
RAAD 100 DD

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
RAA 310 FT
Item no.
6042201
Width
100
Colour
zinc
RAA 320 FT
Item no.
6042203
Width
200
Colour
zinc
RAA 330 FT
Item no.
6042205
Width
300
Colour
zinc
