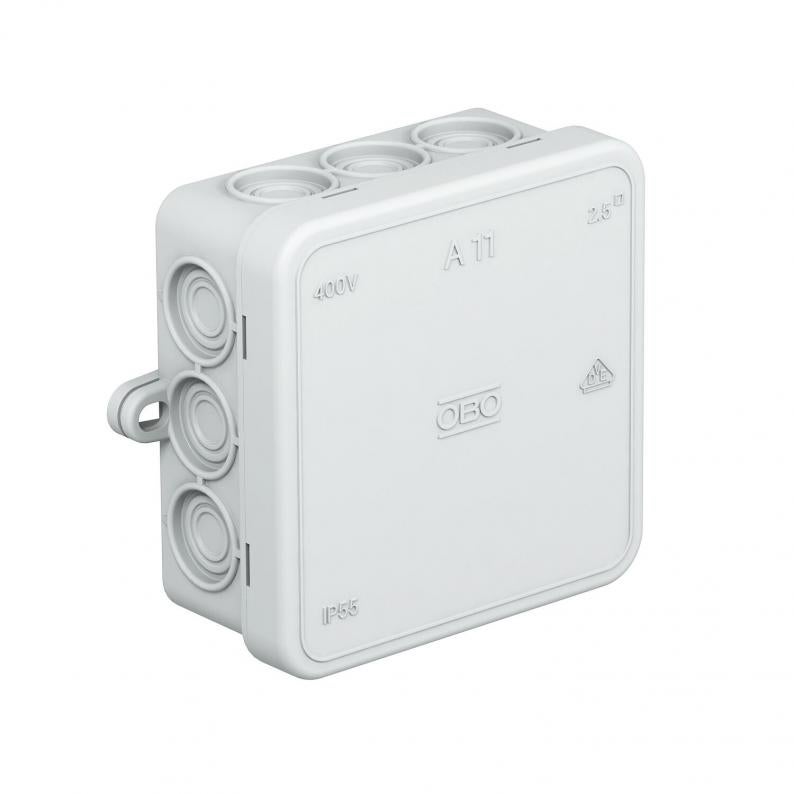

A 11 junction box, OBO EcoLine

A 11 junction box, OBO EcoLine

Type A 11 ECO
|
Item no. 2000344
|
EAN 4012197496524
Show all variants
Item no. / Type
2000344 / A 11 ECO
Clear internal dimensions
75x75x35 mm
No. of entries
12
Protection rating
IP55
Colour
Light grey; RAL 7035

Smallest selling unit: 10 piece

piece

Description

Protection class IP55, nominal voltage 690 V, nominal cross-section 2.5 mm², 12 entries for cable diameter 5–14 mm.
Clamshell.
Dimensions: 85 x 85 x 40 mm.
Internal clearance: 75 x 75 x 35 mm
For every 10 sockets 1 cutting tool
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Flame resistant 650 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • IK Code 07
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 55
  • Nominal cross-section 2.5 mm²
  • 12 cable entries
  • gas-/battery-actuated setting tool
  • CO2-reduced material
  • Recycling material ratio in %
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length85 mm
Width85 mm
Height40 mm
Clear internal dimensions75x75x35 mm

Technical data

Type of entryCable
Halogen-freeyes
No. of entries12
Entry from rearno
Transparent lidno
Protection ratingIP55
Nominal voltage690 V
Expandableyes
with lidyes
Sealableno
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi690 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationPre-marking
With screeningno
Weatherproofno
for pipe diameter14 mm
For Ex zone gasWithout
For Ex zone dustWithout
Max. Conductor cross-section2,5 mm²
Nominal cross-section, min.2,5 mm²
ShapeSquare
EquipmentWithout
CoverNot transparent
Cover fasteningLocking
Mounting typeWall/ceiling mounting
Permitted temperature range, min.-5 °C
Permitted temperature range, max.45 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension85x85x40
MaterialPolyethylene Eco
ColourLight grey; RAL 7035

Environmental Data

0,0592 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0592 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0592 kg CO₂e
Determination date of CO2 value2026-03-03T00:00:00.000+0100
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1
Recycled material content 54 %
