90° Magic bend 60 FT

90° Magic bend 60 FT

Type RBM 90 620 FT
|
Item no. 6041154
|
EAN 4012195881902
Show all variants
Item no. / Type
6041154 / RBM 90 620 FT
Width
200 mm
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

Description

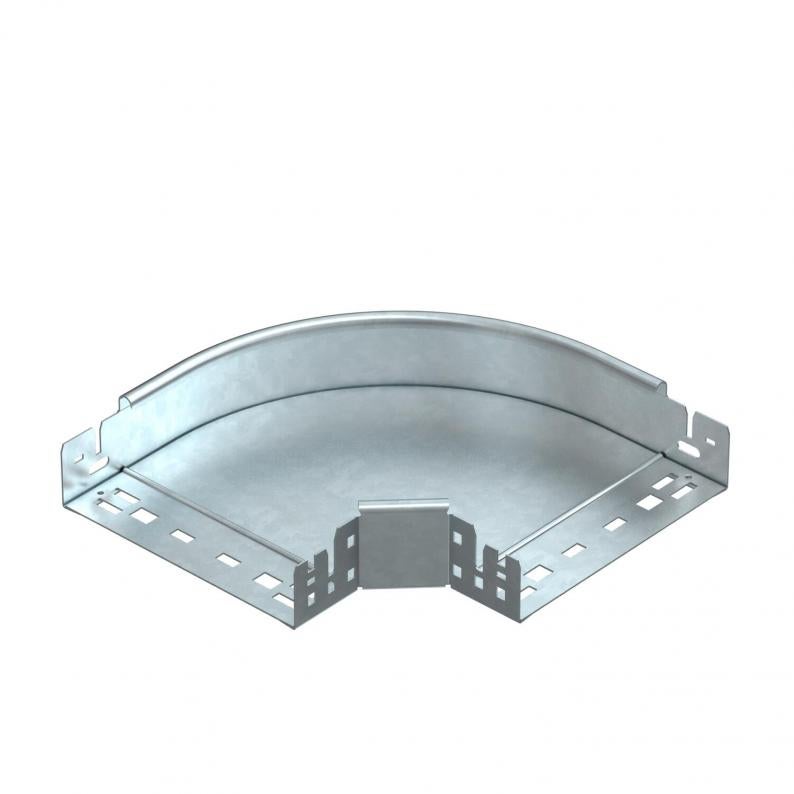

90° bend with quick connector system. For all cable tray types of 60 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 60 mm
  • BET-tested to DIN EN 61537
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width200 mm
Height60 mm
Dimension B200 mm

Technical data

Maintain electrical functionsyes
Side perforationno
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1,25 mm
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionHorizontal
TypeBend, rigid
ROHS-conformantyes
Dimension60x200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemClick fastening

Environmental Data

4,4903 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate4,4903 kg CO2e / 1 Piece
CO₂ Footprint (GWP)4,4903 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

RBM 90 620 FT
Item no.
6041154
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
