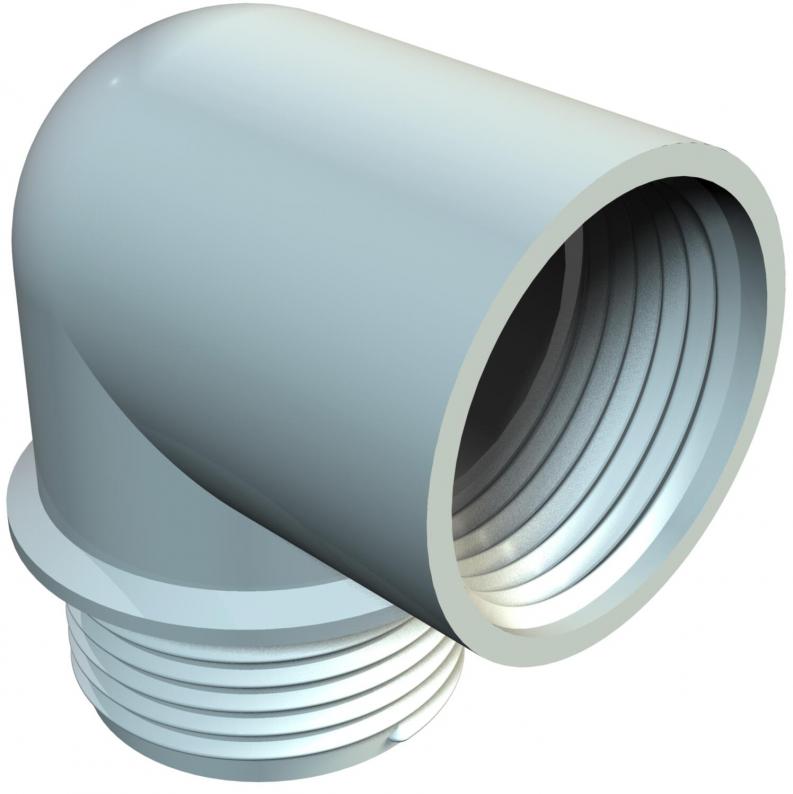

90° elbow socket, PG thread
Type 107 W PG21 PA
Item no. 2029952
EAN 4012195445630
Item no. / Type
Thread dimension, PG, internal
Thread dimension, PG, external
Smallest selling unit: 10 piece
10piece
piece
Description
Elbow socket with PG internal and external thread to DIN 40430.
The elbow socket can be turned into an angular gland with two steel pressure rings 107/D, a sealing ring 107/A or 107/B and a pressure screw 107/E.
The elbow socket can be turned into an angular gland with two steel pressure rings 107/D, a sealing ring 107/A or 107/B and a pressure screw 107/E.
Technical data
Dimensions
| Dimension D1 | 34 mm |
|---|---|
| Dimension D2 | 24 mm |
| Dimension A | 28 mm |
| Dimension B | 18 mm |
| Dimension L1 | 13 mm |
| Dimension L2 | 13 mm |
| Dimension L3 | 33 mm |
Technical data
| Thread | Pg 21 |
|---|---|
| Thread dimension, PG, internal | 21 |
| Thread dimension, PG, external | 21 |
| Type | with thread |
| ROHS-conformant | yes |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 65 °C |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Dimension | PG21 |
| Material | Polyamide |
| Colour | Light grey |
| Product series | V-TEC |
