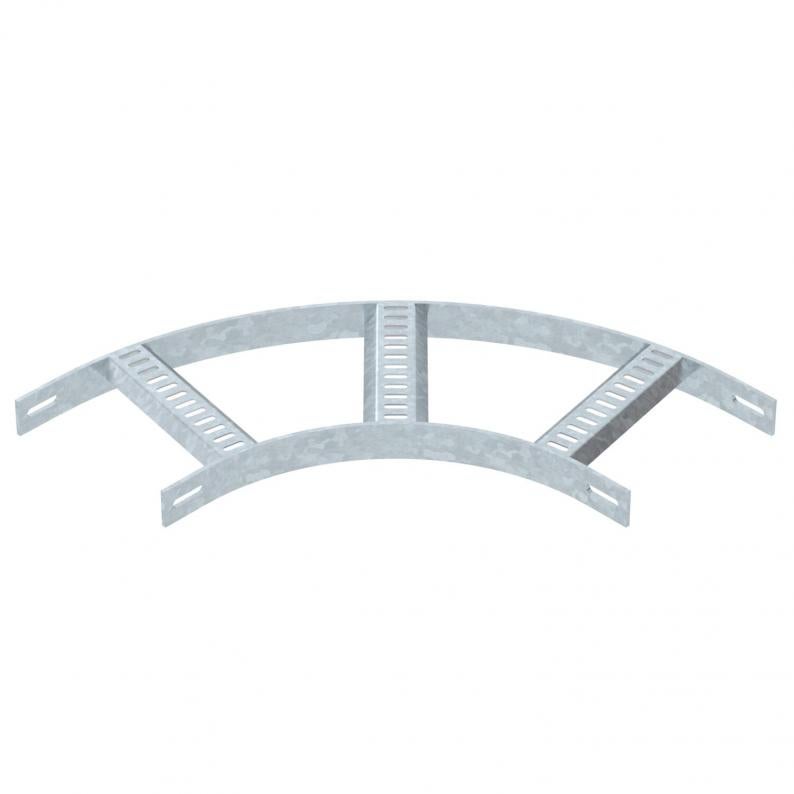

90° bend with trapezoidal rung, FT

90° bend with trapezoidal rung, FT

Type SLB 90 62 200 FT
Item no. 7098871
EAN 4012196510733
Show all variants
Item no. / Type
Width
Rail thickness

Smallest selling unit: 1 piece

piece

Description

90° bend for shipbuilding cable ladders, type SL 62, with side height of 40 mm with welded, perforated trapezoidal rungs which open in a downwards direction.

Connectors should be ordered separately and in the appropriate quantity.

  • RINA 1861, Ship Classification, Certification and Services
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable ladder, side height 40 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width200 mm
Height40 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Bend (angle)90°
Version of the rungsProfile perforated
Hingedno
Side rail versionFlat profile
Change of directionHorizontal
ROHS-conformantyes
Rail thickness5 mm
DimensionB210mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

6,6957 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate6,6957 kg CO2e / 1 Piece
CO₂ Footprint (GWP)6,6957 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Width
SLB 90 62 100 FT
Item no.
7098855
Width
100
Rail thickness
5
SLB 90 62 200 FT
Item no.
7098871
Width
200
Rail thickness
5
SLB 90 62 300 FT
Item no.
7098898
Width
300
Rail thickness
5
SLB 90 62 400 FT
Item no.
7098901
Width
400
Rail thickness
5
SLB 90 62 500 FT
Item no.
7098928
Width
500
Rail thickness
5
SLB 90 62 600 FT
Item no.
7098936
Width
600
Rail thickness
5
