90° bend 60 FT

90° bend 60 FT

Type LB 90 620 R3 FT
Item no. 6225062
EAN 4012196443659
Show all variants
Item no. / Type
Rail thickness
Width

Smallest selling unit: 1 piece

piece

Description

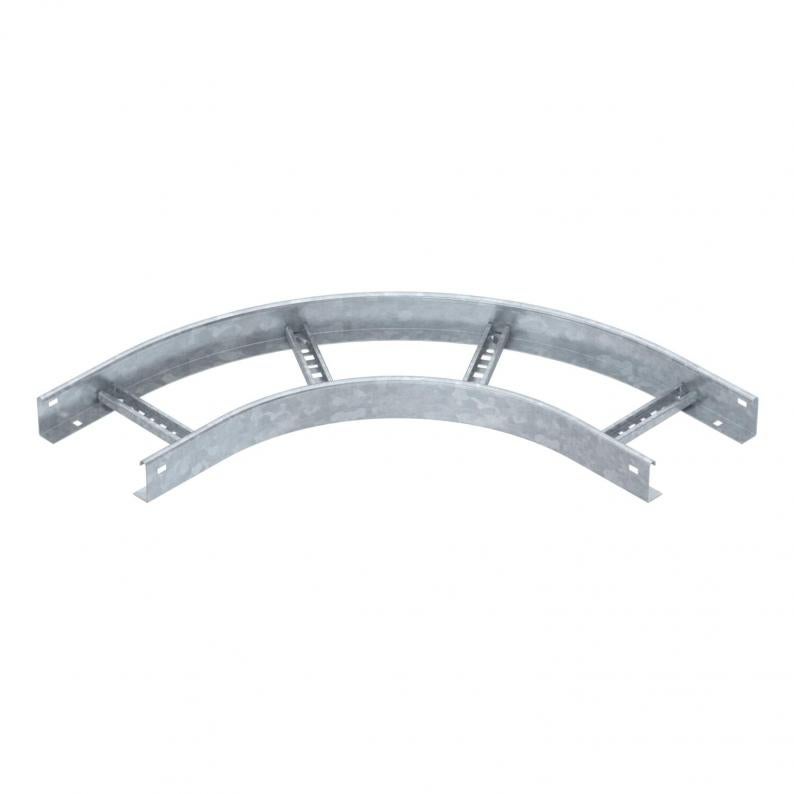

90° bend, horizontal, with welded rung for all cable ladder types of 60 mm side height.

Connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 60 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width200 mm
Height60 mm
Dimension B200 mm
Dimension R200 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Bend (angle)90°
Version of the rungsProfile perforated
Hingedno
Side rail versionFlat profile
Change of directionHorizontal
ROHS-conformantyes
Rail thickness1,5 mm
Dimension60x200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

6,4183 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate6,4183 kg CO2e / 1 Piece
CO₂ Footprint (GWP)6,4183 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Accessories

Mounting accessories
Type
LVG 60 FT

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
LB 90 610 R3 FT
Item no.
6225059
Rail thickness
1,5
LB 90 620 R3 FT
Item no.
6225062
Width
200
Rail thickness
1,5
LB 90 630 R3 FT
Item no.
6225064
Width
300
Rail thickness
1,5
LB 90 640 R3 FT
Item no.
6225066
Width
400
Rail thickness
1,5
LB 90 650 R3 FT
Item no.
6225068
Width
500
Rail thickness
1,5
LB 90 660 R3 FT
Item no.
6225070
Width
600
Rail thickness
1,5
