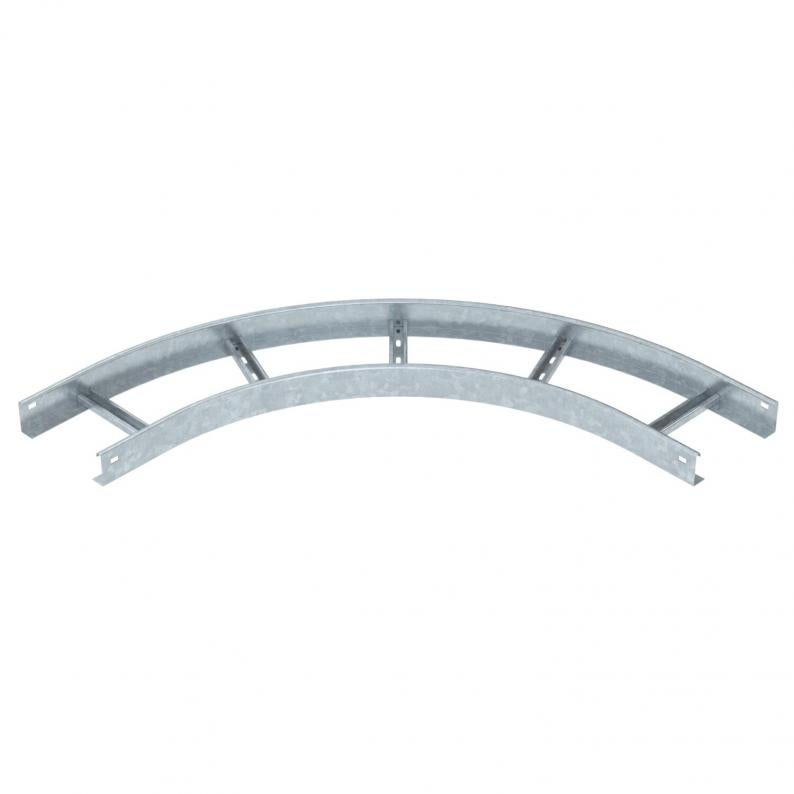

90° bend 60 FT

90° bend 60 FT

Type LB 90 620 R5 FT
Item no. 6211450
EAN 4012196684991
Show all variants
Item no. / Type
Width
Rail thickness

Smallest selling unit: 1 piece

piece

Description

Horizontal 90° bend, fitting for cable ladders, side height 60 mm With connector perforation. Can be used indoors and outdoors. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 60 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width200 mm
Height60 mm
Dimension B200 mm
Dimension R200 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Bend (angle)90°
Version of the rungsProfile unperforated
Hingedno
Side rail versionFlat profile
Change of directionHorizontal
ROHS-conformantyes
Rail thickness1,5 mm
Dimension60x200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

8,3647 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate8,3647 kg CO2e / 1 Piece
CO₂ Footprint (GWP)8,3647 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Accessories

Mounting accessories
Type
LVG 60 FT

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Width
LB 90 620 R5 FT
Item no.
6211450
Width
200
Rail thickness
1,5
LB 90 630 R5 FT
Item no.
6211452
Width
300
Rail thickness
1,5
LB 90 640 R5 FT
Item no.
6211454
Width
400
Rail thickness
1,5
LB 90 650 R5 FT
Item no.
6211456
Width
500
Rail thickness
1,5
LB 90 660 R5 FT
Item no.
6211458
Width
600
Rail thickness
1,5
