90° bend 110 FT

90° bend 110 FT

Type LB 90 1120 R5 FT
|
Item no. 6217772
|
EAN 4012196685196
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

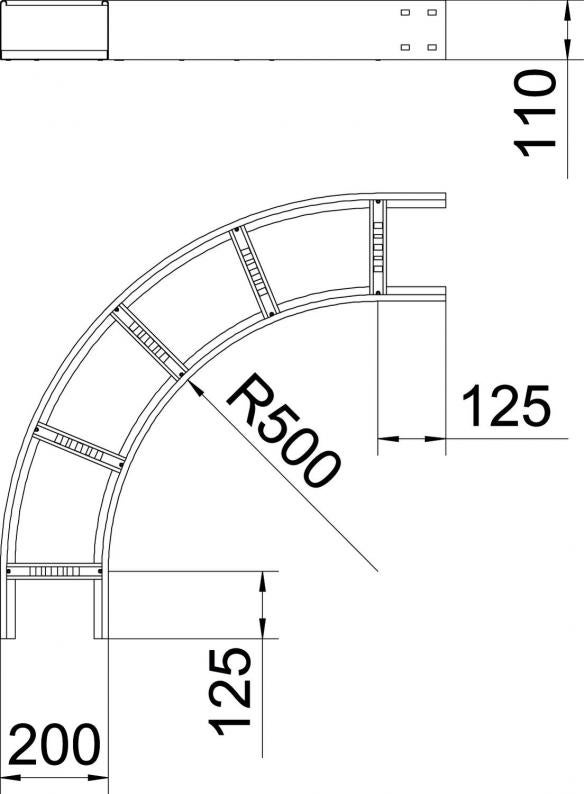

90° bend, horizontal, for all wide span cable ladders of 110 mm side height.

Connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 110 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width200 mm
Height110 mm
Dimension B200 mm
Dimension R200 mm

Technical data

Maintain electrical functionsno
Side perforationno
Wide-span versionno
Rustproof steel, pickledno
Bend (angle)90°
Version of the rungsProfile unperforated
Side rail versionFlat profile
Change of directionHorizontal
Dimension110x200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

11,69 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate11,69 kg CO2e / 1 Piece
CO₂ Footprint (GWP)11,69 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Accessories

Mounting accessories

Item no. 6216548

Straight connector FT
Type
LVG 110 FT

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
LB 90 1120 R5 FT
Item no.
6217772
Width
200
LB 90 1130 R5 FT
Item no.
6217774
Width
300
LB 90 1140 R5 FT
Item no.
6217776
Width
400
LB 90 1150 R5 FT
Item no.
6217778
Width
500
LB 90 1160 R5 FT
Item no.
6217780
Width
600
