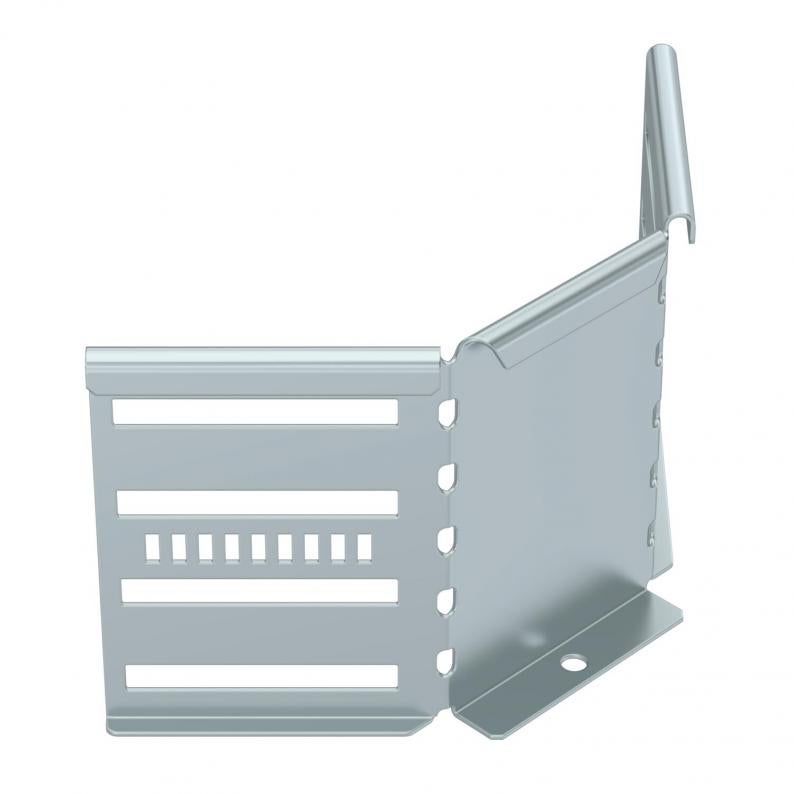

90° angle connector for cable trays and ladders FS
Type WKV 110 FS
Item no. 6043067
EAN 4012197518349
Item no. / Type
6043067 / WKV 110 FS
Height
107 mm
Plate thickness
1,25 mm
Smallest selling unit: 5 piece
5piece
piece
Description
90° angle connector for the creation of a horizontal branch, suitable for latchable and screwable cable trays as well as screwable cable ladders with a 110 mm side height.
Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
Technical data
Dimensions
| Length | 190 mm |
|---|---|
| Width | 71 mm |
| Height | 107 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Quantity of bolts | 0 St. |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 190x110 |
| Suitable for cable support system width, min. | 100 mm |
| Suitable for cable support system width, max. | 600 mm |
| Suitable for cable tray system height | 110 mm |
| Version for | Angle connector |
| Connection type | Screw connector |
| ROHS-conformant | yes |
| Dimension | 110mm |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
