90° adjustable bend, vertical 110 FS
Type RGBV 110 FS
Item no. 7006624
EAN 4012196218592
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description

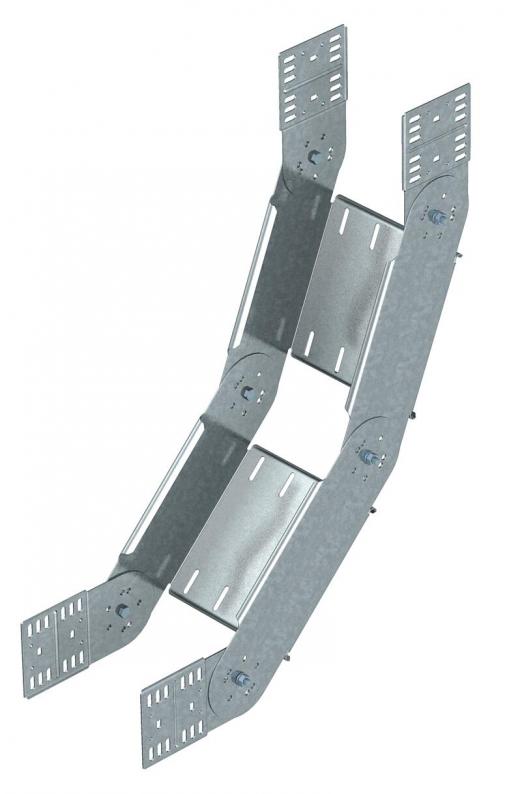

90° adjustable vertical bend, for all cable tray types with a side height of 110 mm.
The bend is shipped in an unmounted state. No additional fastening materials are required.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 110 mm |
| Dimension R | 400 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Vertical, rising/falling |
| Type | Adjustable bend_complete |
| ROHS-conformant | yes |
| Dimension | 110x100 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Environmental Data
11,4459 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 11,4459 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 11,4459 kg CO₂e |
| Determination date of CO2 value | 2025-05-21T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (1)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
RGBV 110 FS
100
Strip galvanised
Steel
zinc
7006624
RGBV 115 FS
150
Strip galvanised
Steel
zinc
7006632
RGBV 120 FS
200
Strip galvanised
Steel
zinc
7006640
RGBV 130 FS
300
Strip galvanised
Steel
zinc
7006667
RGBV 140 FS
400
Strip galvanised
Steel
zinc
7006683
RGBV 150 FS
500
Strip galvanised
Steel
zinc
7006705
RGBV 160 FS
600
Strip galvanised
Steel
zinc
7006717
