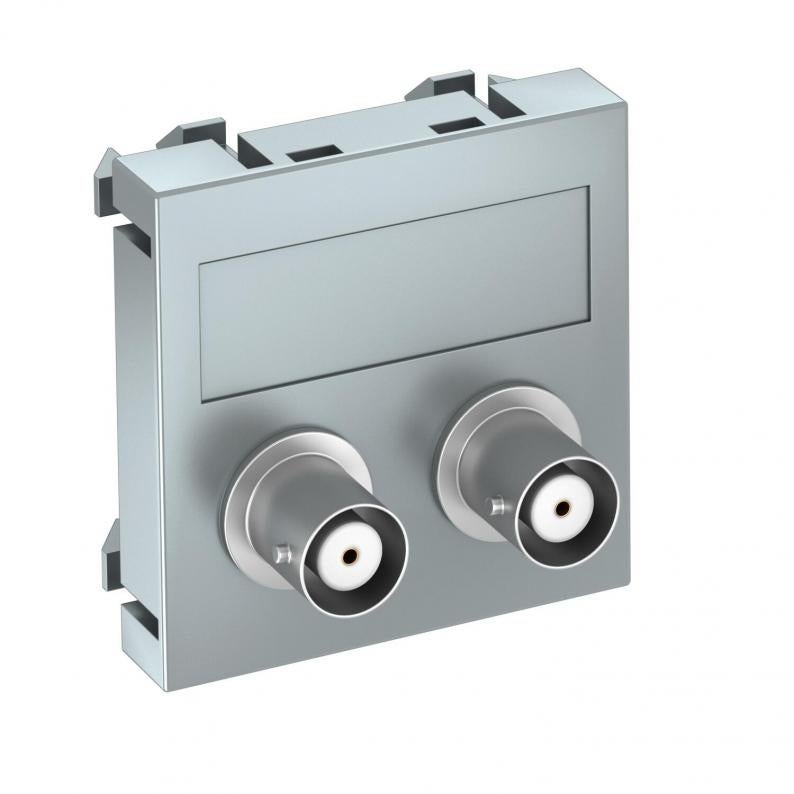

2 x BNC connection, 1 module, straight outlet, as 1:1 coupling, aluminium-painted

2 x BNC connection, 1 module, straight outlet, as 1:1 coupling, aluminium-painted

Type MTG-2BC F AL1
Item no. 6105096
EAN 4012195898900
Show all variants
Item no. / Type
Colour

Smallest selling unit: 1 piece

piece

Description

Multimedia support with two BNC connection sockets, straight cable outlet, with labelling panel, two BNC couplings, socket-socket version. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

  • CO₂ footprint (PCF)

Technical data

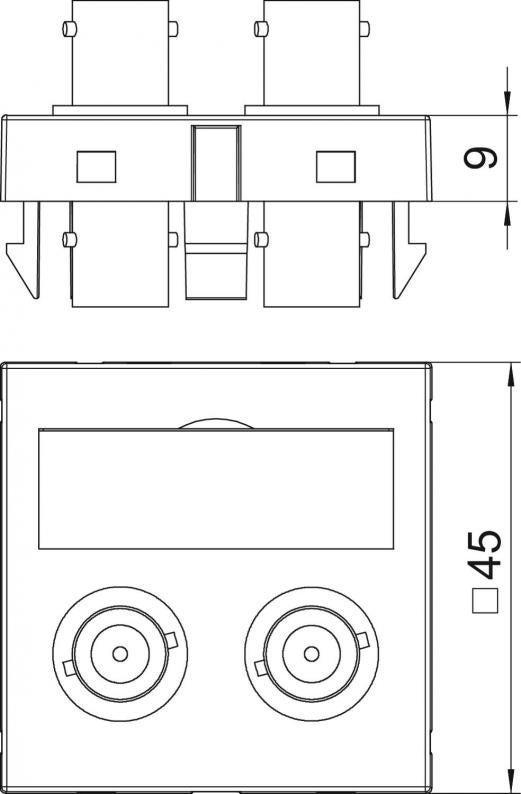

Dimensions

Width45 mm
Height45 mm

Technical data

Hinged coverno
Halogen-freeyes
Strain relief optionno
Protection ratingIP20
Support ringno
With dust protectionno
With printed labelno
Lamp-wire connectorno
Depth9 mm
Surface versionMatt
Transparentno
CombinationBasic element with central cover plate
UseBNC/TNC
Fastening typeLock
ROHS-conformantExempt
Dimension45x45mm
MaterialPolycarbonate
ColourAluminium painted
Product seriesModul 45® Multimedia

Environmental Data

0,0961 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0961 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0961 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)

Variants

Colour
MTG-2BC F RW1
Item no.
6105090
Use
BNC/TNC
Colour
Pure white; RAL 9010
MTG-2BC F SWGR1
Item no.
6105093
Use
BNC/TNC
Colour
Black-grey; RAL 7021
Outlet direction
Straight
MTG-2BC F AL1
Item no.
6105096
Use
BNC/TNC
Colour
Aluminium painted
