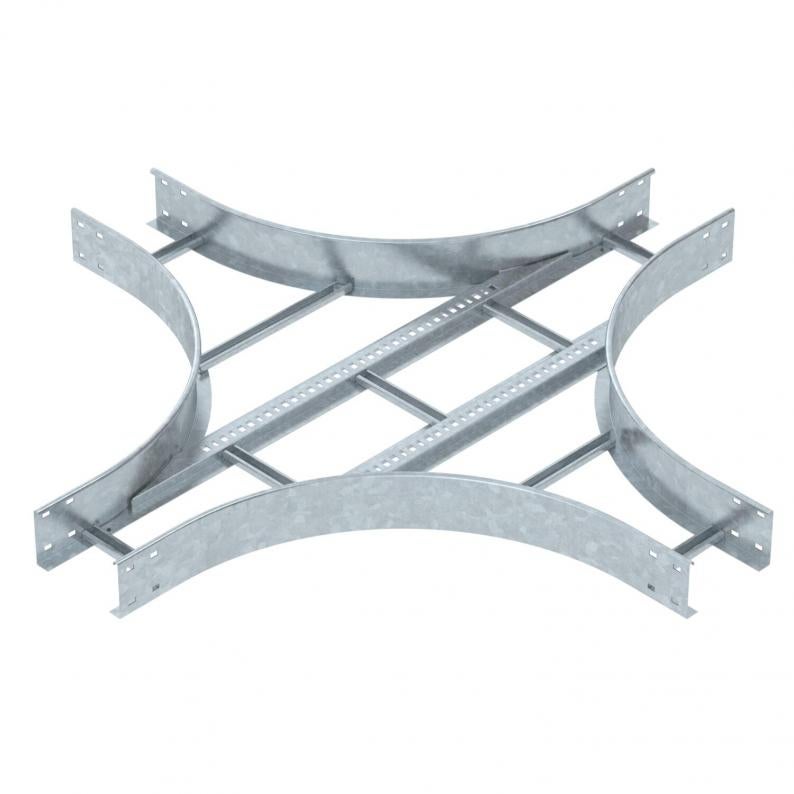

110 FT cross-over

110 FT cross-over

Type LK 1120 R5 FT
Item no. 6219702
EAN 4012196685592
Show all variants
Item no. / Type
Width
Rail thickness

Smallest selling unit: 1 piece

piece

Description

Cross-over for the creation of horizontal branches, fitting for cable ladders of side height 110 mm. With connector perforation. Can be used indoors and outdoors. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 110 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width200 mm
Height110 mm
Dimension R500 mm

Technical data

Maintain electrical functionsno
Wide-span versionno
Rustproof steel, pickledno
Version of the rungsProfile unperforated
Side rail versionProfile (open)
ROHS-conformantyes
Rail thickness1,5 mm
Dimension110x200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

33,4175 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate33,4175 kg CO2e / 1 Piece
CO₂ Footprint (GWP)33,4175 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Accessories

Mounting accessories
Type
LVG 110 FT

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
LK 1120 R5 FT
Item no.
6219702
Width
200
Rail thickness
1,5
LK 1130 R5 FT
Item no.
6219704
Width
300
Rail thickness
1,5
LK 1140 R5 FT
Item no.
6219706
Width
400
Rail thickness
1,5
LK 1150 R5 FT
Item no.
6219708
Width
500
Rail thickness
1,5
LK 1160 R5 FT
Item no.
6219710
Width
600
Rail thickness
1,5
