Adapter for trapezoidal roofs
Adapter for PV module mounting, trapezoidal roof

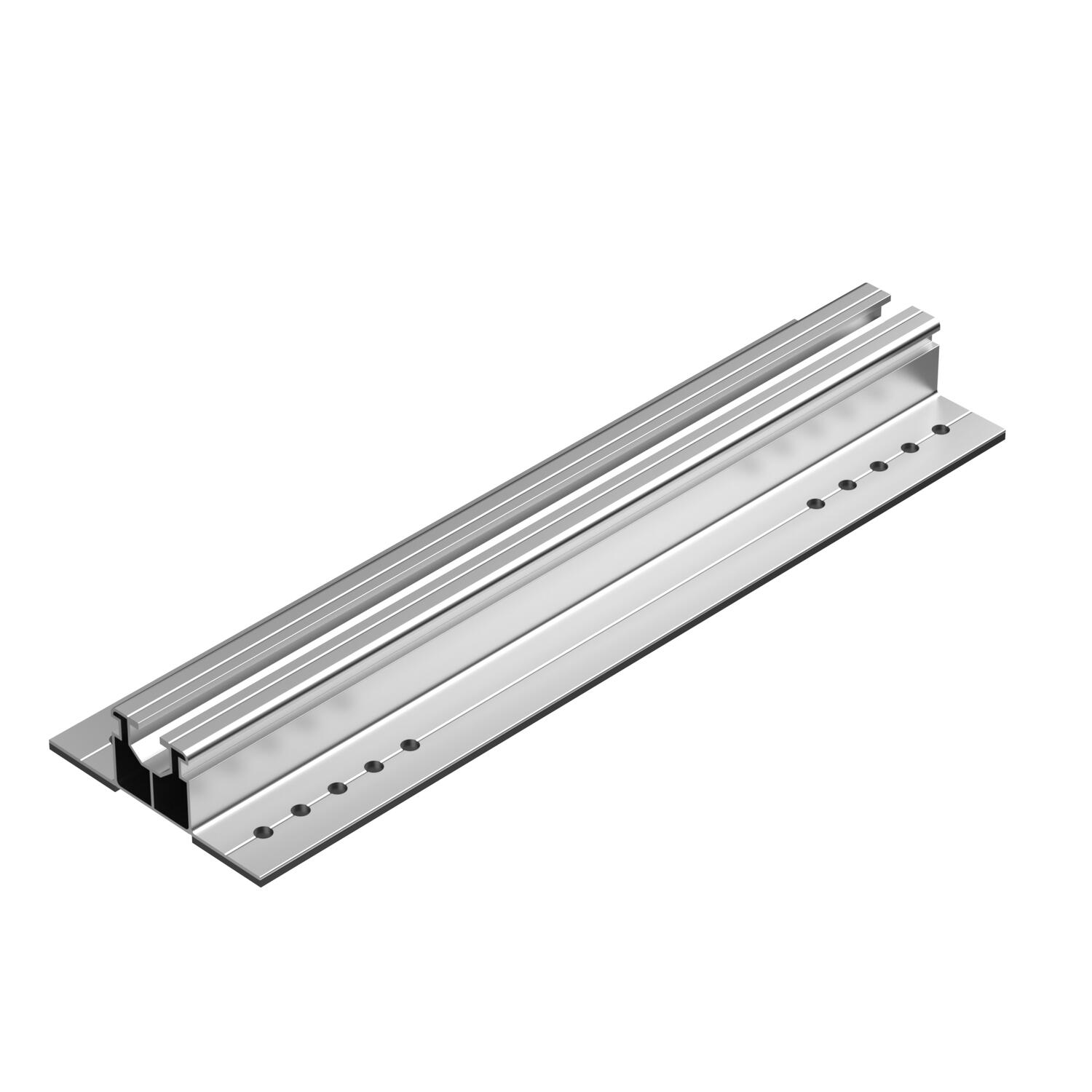

A specially developed adapter for trapezoidal roofs is used to mount photovoltaic modules on trapezoidal sheeted roofs. The light aluminium profile enables secure, long-lasting fastening directly on the roof surface. A pre-mounted non-slip sealing mat ensures a reliable hold while also protecting the roof material. The provided fastening materials make mounting quick and uncomplicated. In combination with the KLU universal clamp, the adapter is ideal for flexible, practical PV installation.
Do you have any questions on this topic?
Weāll be glad to help you!
Long-lasting, reliable, resilient: warranty certificate for OBO Magic PV SolutionĀ®
We stand for quality: Our PV substructures are guaranteed to be free of material and manufacturing defects. In addition to the legal warranty rights, we also provide a voluntary warranty on metal and plastic components.
PV planning has never been so easy ā and weāre here to help
A sunny outlook!
We offer you not only innovative mounting systems for your PV system, but also support you with the planning. Our Customer Service team works with you to find the right Magic PV SolutionĀ® tailored to your specific needs. Please note: The creation of a quote for free-standing solutions specifically requires a geological survey. We will be happy to help you find a suitable company and establish contact with a geological engineer.
The external survey will then be reviewed and evaluated for completeness of all the relevant data.
Smart PV planning ā with the OBO Construct PV tool
With the OBO Construct tool for PV mounting systems for flat-roof and pitched-roof systems you plan your Magic PV SolutionĀ® tailored to your specific needs and requirements. Intuitive, clear, fast.
- Explained step by step
- Intuitive to use
- Order list created automatically
