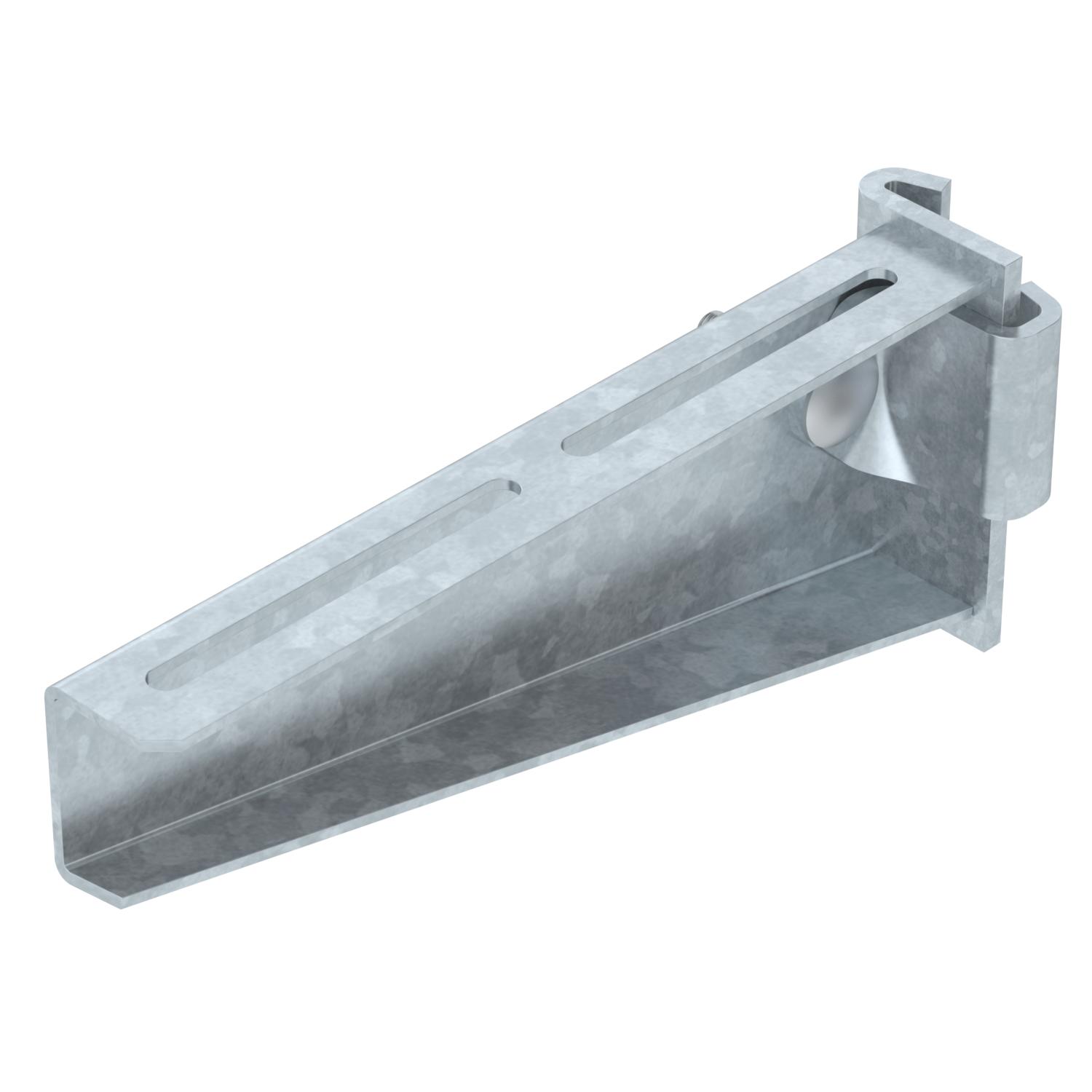

Support bracket AS 55

Item no. 6419286 | EAN 4012195872917

41 mm
5.5 kN
Product description
Product description
Heavy-duty support bracket for infinitely adjustable fastening on IS 8 support.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • I support
Technical data

Technical data

Colour zinc

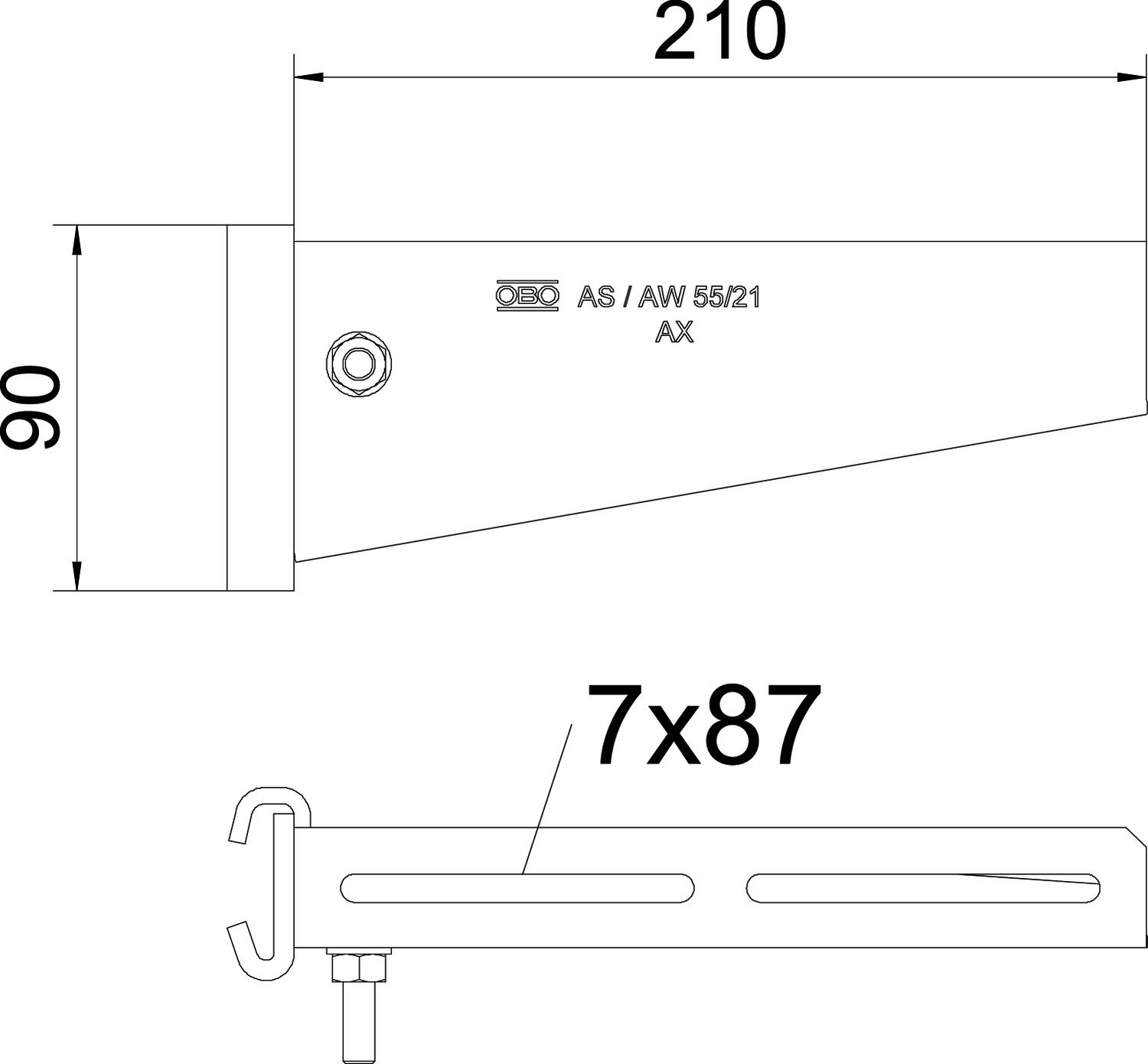

Dimension B210mm
Dimension A 41 mm
Dimension B 210 mm
Dimension H 90 mm
F in kN 5,5 kN
Height 90 mm
Length 41 mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Surface Hot-dip galvanised
Version for Support bracket
Width 210 mm

Technical data

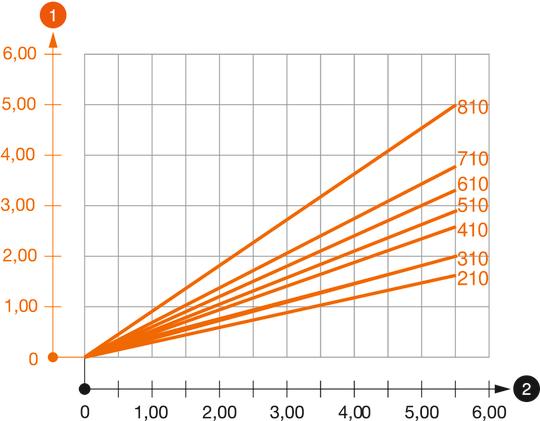

Load diagram, bracket type AS 55

Load diagram, bracket type AS 55
  • Bending of the bracket tip at permitted bracket load Bending of the bracket tip at permitted bracket load
  • Permitted bracket load in kN without man load Permitted bracket load in kN without man load
  • Load curve with bracket lengths in mm Load curve with bracket lengths in mm
All types

All types

Types Length Width F in kN Item no.
AS 55 21 FT 41 mm 210 mm 5.5 kN 6419286
AS 55 31 FT 41 mm 310 mm 5.5 kN 6419292
AS 55 41 FT 41 mm 410 mm 5.5 kN 6419298
AS 55 51 FT 41 mm 510 mm 5.5 kN 6419304
AS 55 56 FT 41 mm 560 mm 5.5 kN 6419310
AS 55 61 FT 41 mm 610 mm 5.5 kN 6419316
AS 55 71 FT 41 mm 710 mm 5.5 kN 6419322
AS 55 81 FT 41 mm 810 mm 5.5 kN 6419328
AS 55 91 FT 41 mm 910 mm 5.5 kN 6419334
AS 55 101 FT 41 mm 1010 mm 5.5 kN 6419340
