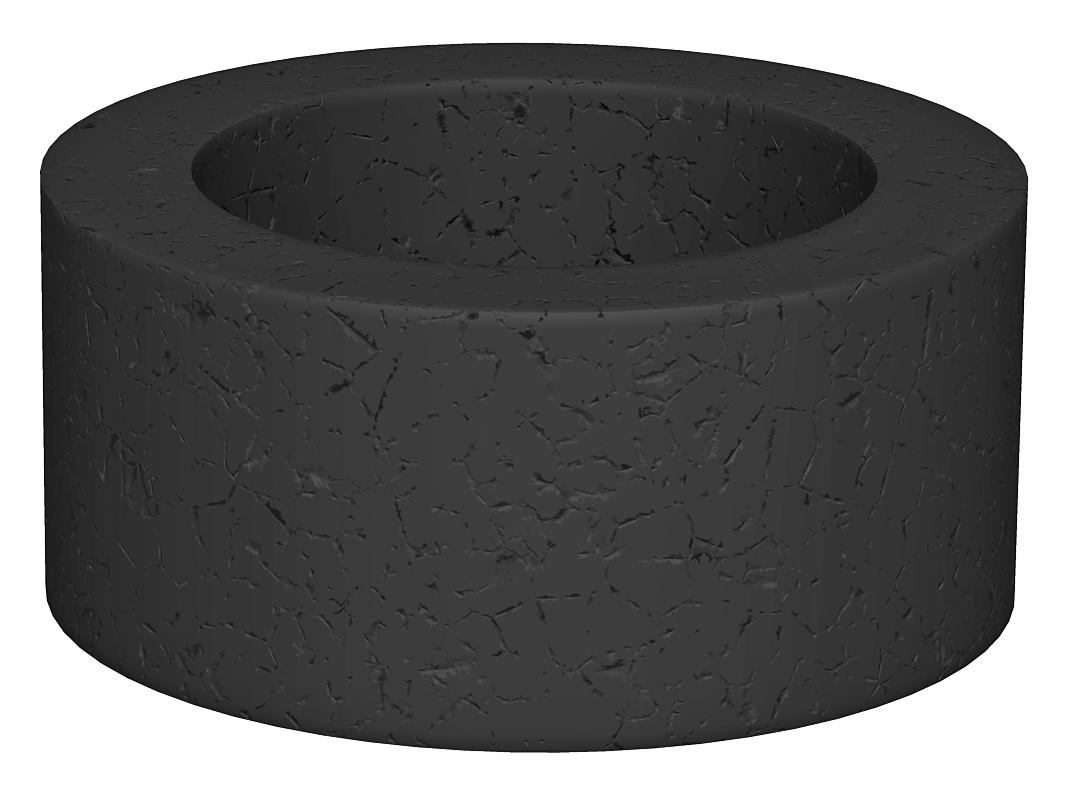

Reducing sealing insert, metric
Item no. 2029578 | EAN 4012195360667
- Product description
-
Product descriptionReduces the sealing area D of the cable gland V-TEC VM and V-TEC VM L.
-
- Technical data
-
Technical data

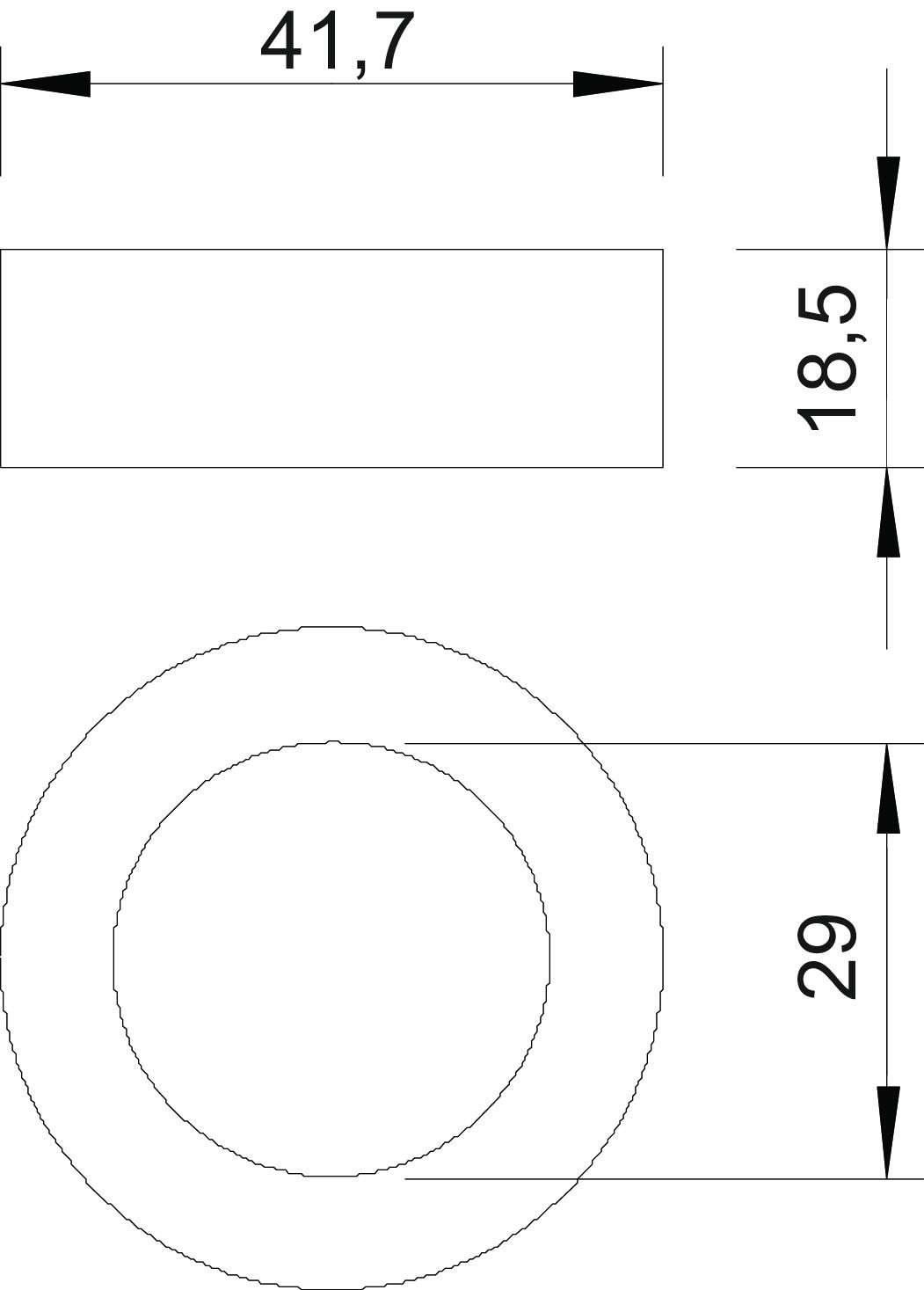

CO2 Footprint (GWP) Cradle-to-Gate 0,1143 kg CO₂e / 1 Piece Colour Black Dimension M50 Dimension D1 29 mm Dimension D2 41,7 mm Dimension H 18,5 mm External diameter 41,7 mm Halogen-free no Inner diameter 29 mm Material Rubber mixture Protection rating IP68 Sealing area D, max. 29 mm Sealing area D, min. 18 mm Suitable for metric thread dimension 50 Thickness 18,5 mm Version for Miscellaneous - All types
- Downloads
-
Data sheet 107CR VM 50 / 2029578 , 0.15MB , pdfEU declaration of conformity 107CR VM 50 / 2029578 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,EU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 107CR VM 50 / 2029578 , 0.09MB , pdfREACH Declaration of conformity 107CR VM 50 / 2029578 , 0.12MB , pdfRoHS Declaration of conformity 107CR VM 50 / 2029578 , 0.12MB , pdfMounting instructions Mounting instructions, V-TEC VM.. ..x.. , 2.00MB , pdf
