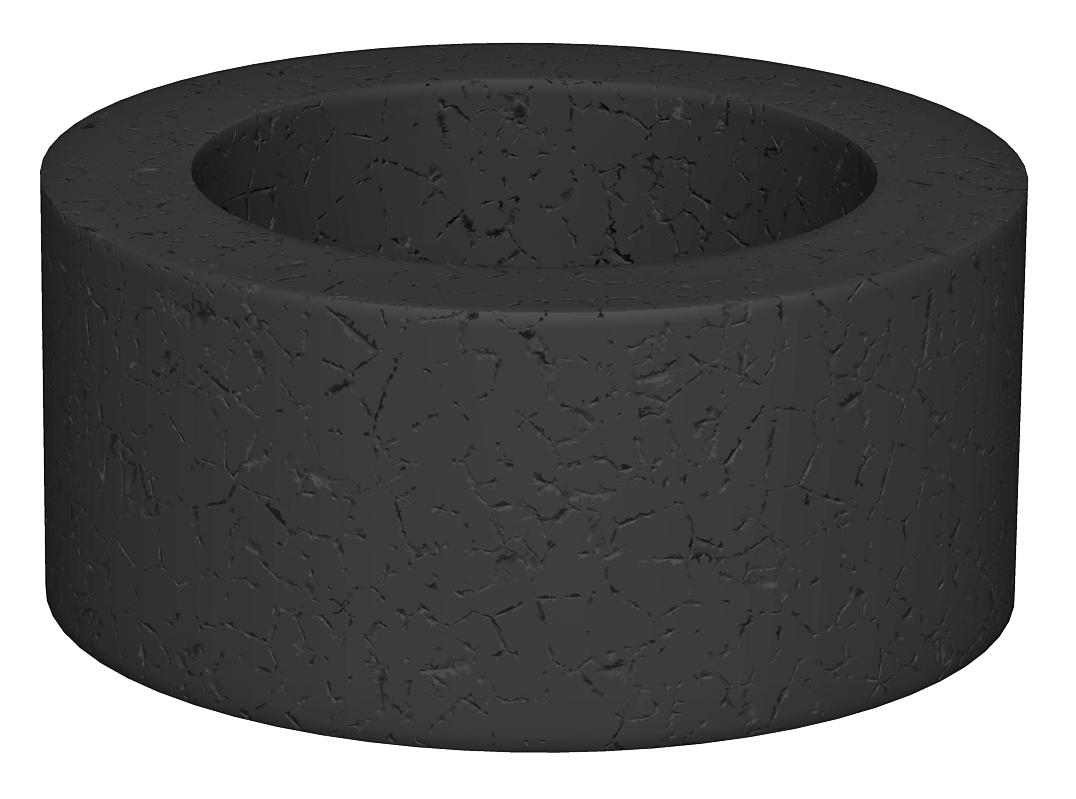

Reducing sealing insert, metric
Item no. 2029575 | EAN 4012195360650
- Product description
-
Product descriptionReduces the sealing area D of the cable gland V-TEC VM and V-TEC VM L.
-
- Technical data
-
Technical data

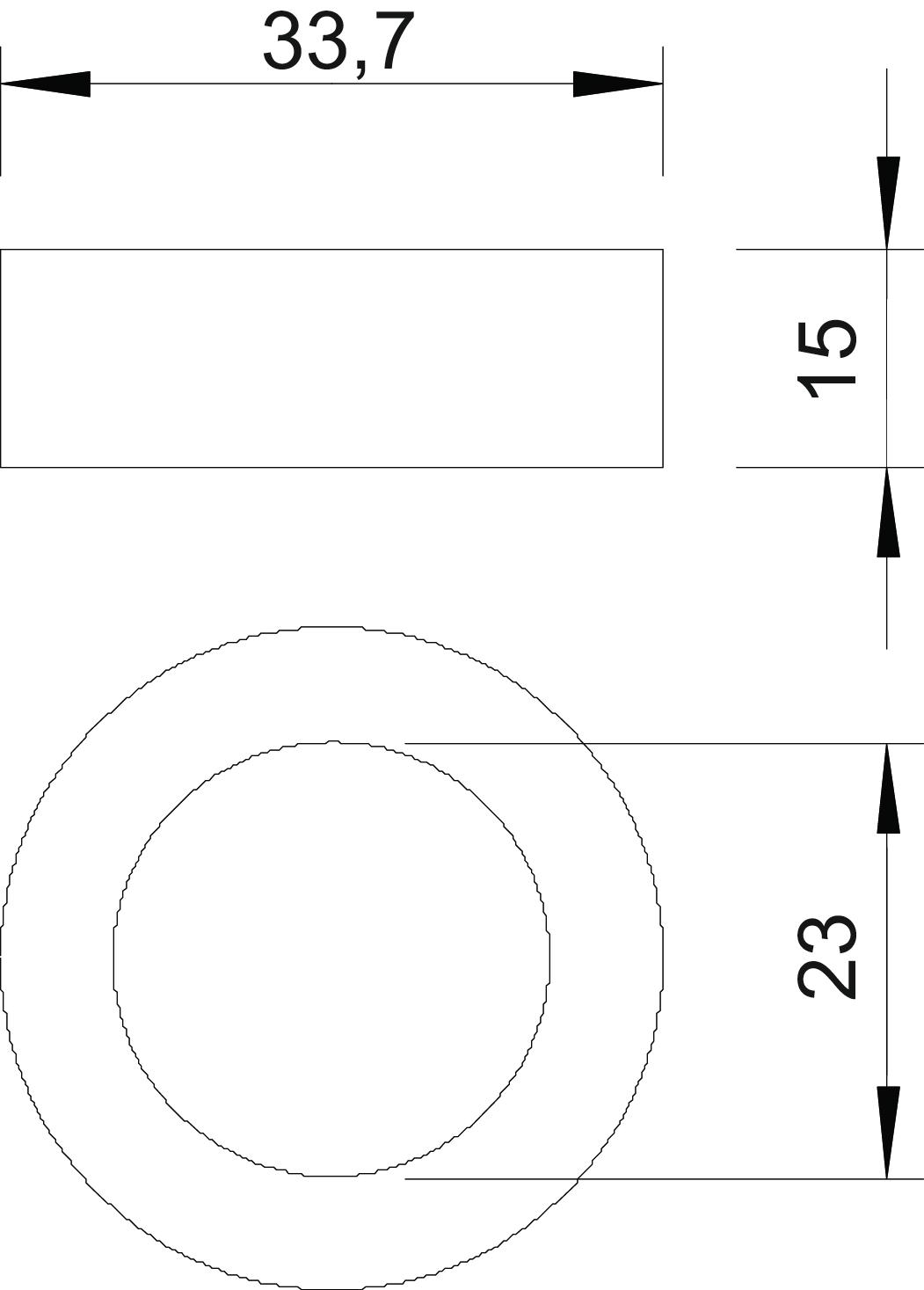

CO2 Footprint (GWP) Cradle-to-Gate 0,05 kg CO₂e / 1 Piece Colour Black Dimension M40 Dimension D1 23 mm Dimension D2 33,7 mm Dimension H 15 mm External diameter 33,7 mm Halogen-free no Inner diameter 23 mm Material Rubber mixture Protection rating IP68 Sealing area D, max. 23 mm Sealing area D, min. 12 mm Suitable for metric thread dimension 40 Thickness 15 mm Version for Miscellaneous - All types
- Downloads
-
Data sheet 107CR VM 40 / 2029575 , 0.18MB , pdfEU declaration of conformity 107CR VM 40 / 2029575 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,EU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 107CR VM 40 / 2029575 , 0.09MB , pdfREACH Declaration of conformity 107CR VM 40 / 2029575 , 0.12MB , pdfRoHS Declaration of conformity 107CR VM 40 / 2029575 , 0.12MB , pdfMounting instructions Mounting instructions, V-TEC VM.. ..x.. , 2.00MB , pdf
