Reducing sealing insert, metric
Item no. 2029572 | EAN 4012195360643
- Product description
-
Product descriptionReduces the sealing area D of the cable gland V-TEC VM and V-TEC VM L.
-
- Technical data
-
Technical data

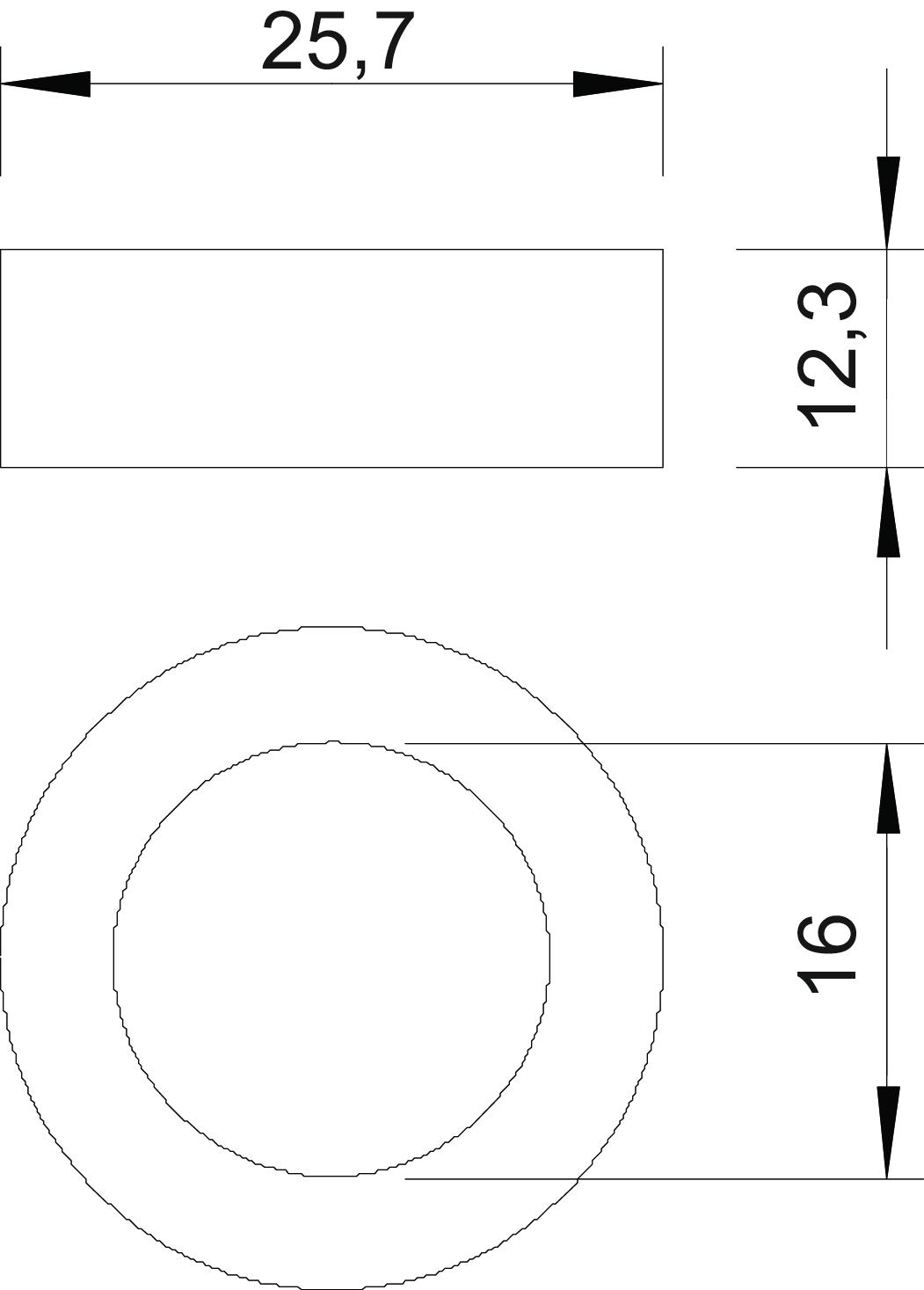

CO2 Footprint (GWP) Cradle-to-Gate 0,0295 kg CO₂e / 1 Piece Colour Black Dimension M32 Dimension D1 16 mm Dimension D2 25,7 mm Dimension H 12,3 mm External diameter 25,7 mm Halogen-free no Inner diameter 16 mm Material Rubber mixture Protection rating IP68 Sealing area D, max. 16 mm Sealing area D, min. 11 mm Suitable for metric thread dimension 32 Thickness 12,3 mm Version for Miscellaneous - All types
- Downloads
-
Data sheet 107CR VM 32 / 2029572 , 0.18MB , pdfEU declaration of conformity 107CR VM 32 / 2029572 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,EU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 107CR VM 32 / 2029572 , 0.09MB , pdfREACH Declaration of conformity 107CR VM 32 / 2029572 , 0.12MB , pdfRoHS Declaration of conformity 107CR VM 32 / 2029572 , 0.12MB , pdfMounting instructions Mounting instructions, V-TEC VM.. ..x.. , 2.00MB , pdf
