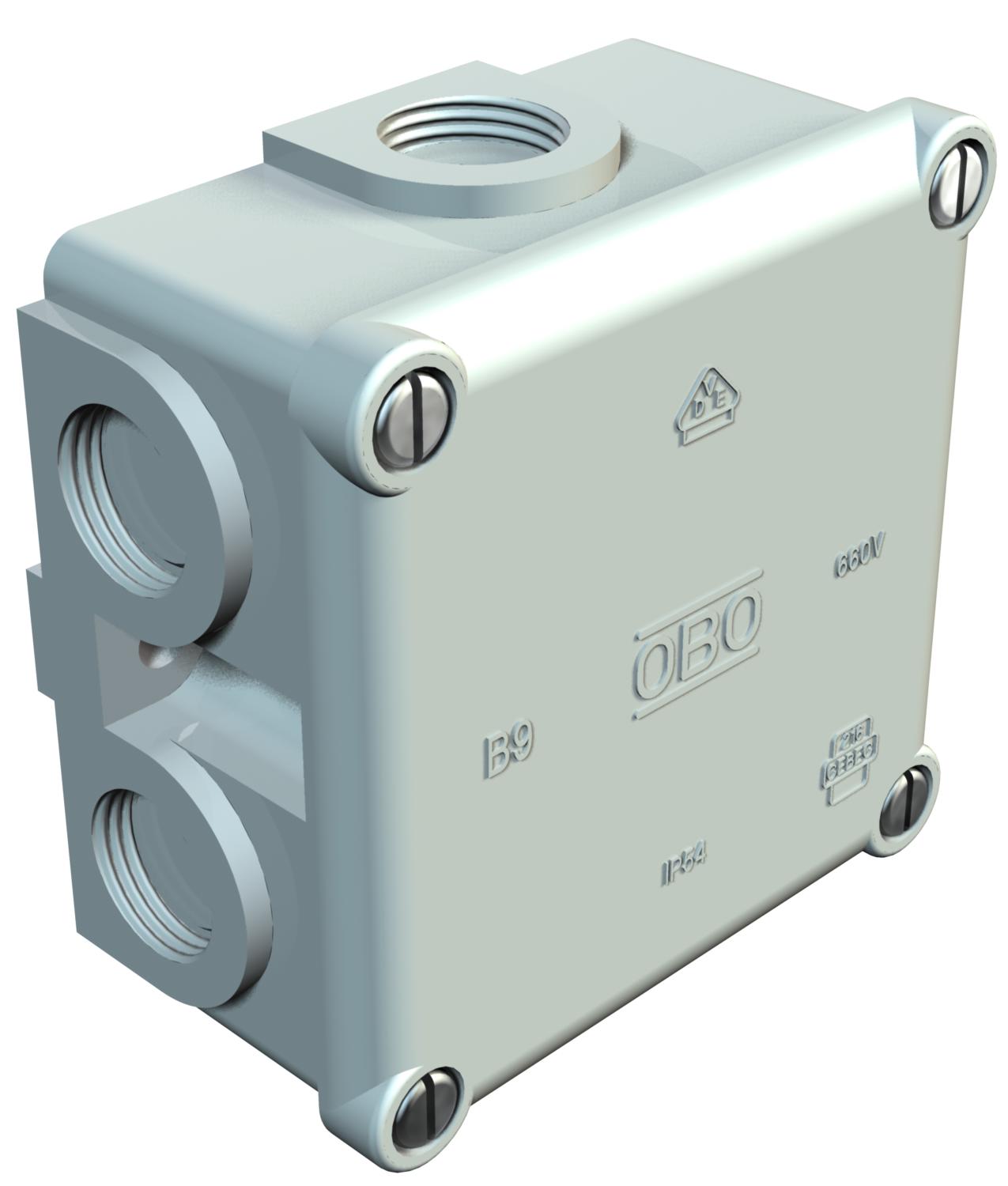

Junction box, B 9/B M, with thread 73x73x35 | 7 | IP54 | Light grey; RAL 7035

Junction box, B 9/B M, with thread

Item no. 2001632 | EAN 4012195536178

Item no. / Types

Clear internal dimensions

No. of entries

Protection rating	IP54

Colour	Light grey; RAL 7035

Product description

Product description

Protection rating IP54, nominal voltage 660 V, nominal cross-section 2.5 ÷ mm², two fastening holes for screws up to 5 mm Ø on the outside of the box, four cover screws, 7 break-out entries with thread M20 x 1.5, primarily for cable glands with short connecting thread.
Clear internal dimensions: 73x73x35 mm.
B 9 B M VDE empty: without terminal block

Technical data

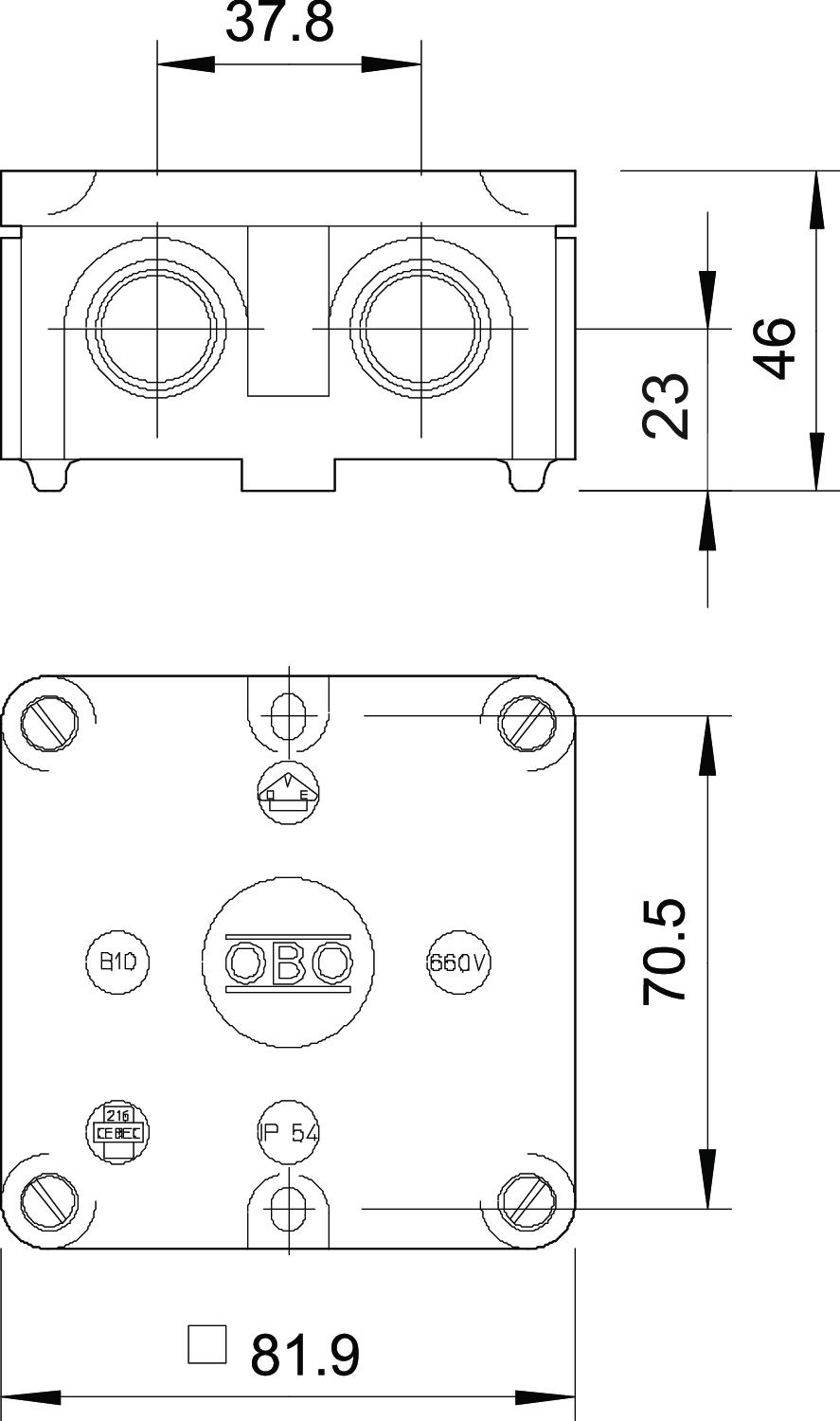

Dimensions

Clear internal dimensions	73x73x35 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,303 kg CO₂e / 1 Piece
Colour	Light grey; RAL 7035
Cover	Not transparent
Cover fastening	Screwed
Dimension	82x82x46
Entries	7 break-out entries with thread M20 x 1.5
Entry from rear	no
Expandable	no
Explosion-tested version	no
Flame-resistant	Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
for pipe diameter	20 mm
Halogen-free	yes
Height	46 mm
Impact-resistant	no

Length	81,9 mm
Maintain electrical functions	Without
Material	Duroplast, Aminoplast
Measured insulation voltage Vi	400 V
No. of entries	7
Nominal cross-section, min.	2,5 mm²
Nominal voltage	660 V
Protection rating	IP54
Sealable	yes
Shape	Square
Transparent lid	no
Type of entry	Cable
Type of housing penetration	Thread and pre-marking
Type of insertion	Gland
Weatherproof	no
Width	81,9 mm
with lid	yes
With screening	no

All types

All types

Types	Clear internal dimensions	No. of entries	Protection rating	Colour	Item no.
B 9 B M	73x73x35 mm	7	IP54	Light grey; RAL 7035	2001632
B 10 M	80x80x39 mm	7	IP54	Light grey; RAL 7035	2002167
B 11 M	125x100x44 mm	10	IP54	Light grey; RAL 7035	2002345
B 12 M	178x126x57 mm	10	IP54	Light grey; RAL 7035	2002523
