Junction box, B 12 M, with thread 178x126x57 | 10 | IP54 | Light grey; RAL 7035

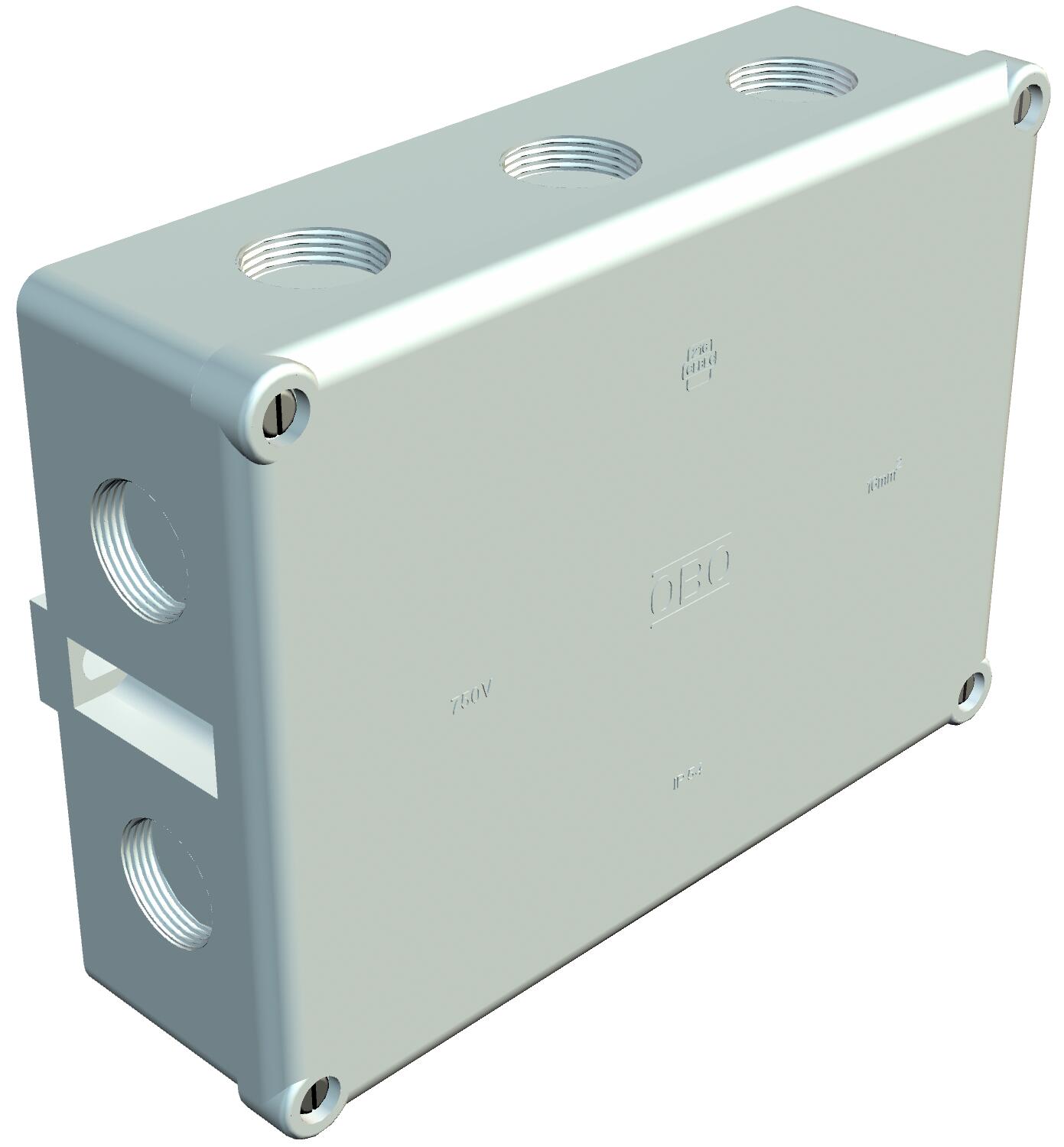

Junction box, B 12 M, with thread

Item no. 2002523 | EAN 4012195105312

Item no. / Types

Clear internal dimensions

No. of entries

Protection rating	IP54

Colour	Light grey; RAL 7035

Product description

Product description

Protection rating IP54, nominal voltage 660 V, nominal cross-section 16 ÷ mm², two fastening holes for screws up to 6 mm Ø on the outside of the box. Four cover screws, 10 break-out entries with thread M25 x 1.5.
Clear internal dimensions: 178x126x57 mm
B 12 empty: without terminal strip

Technical data

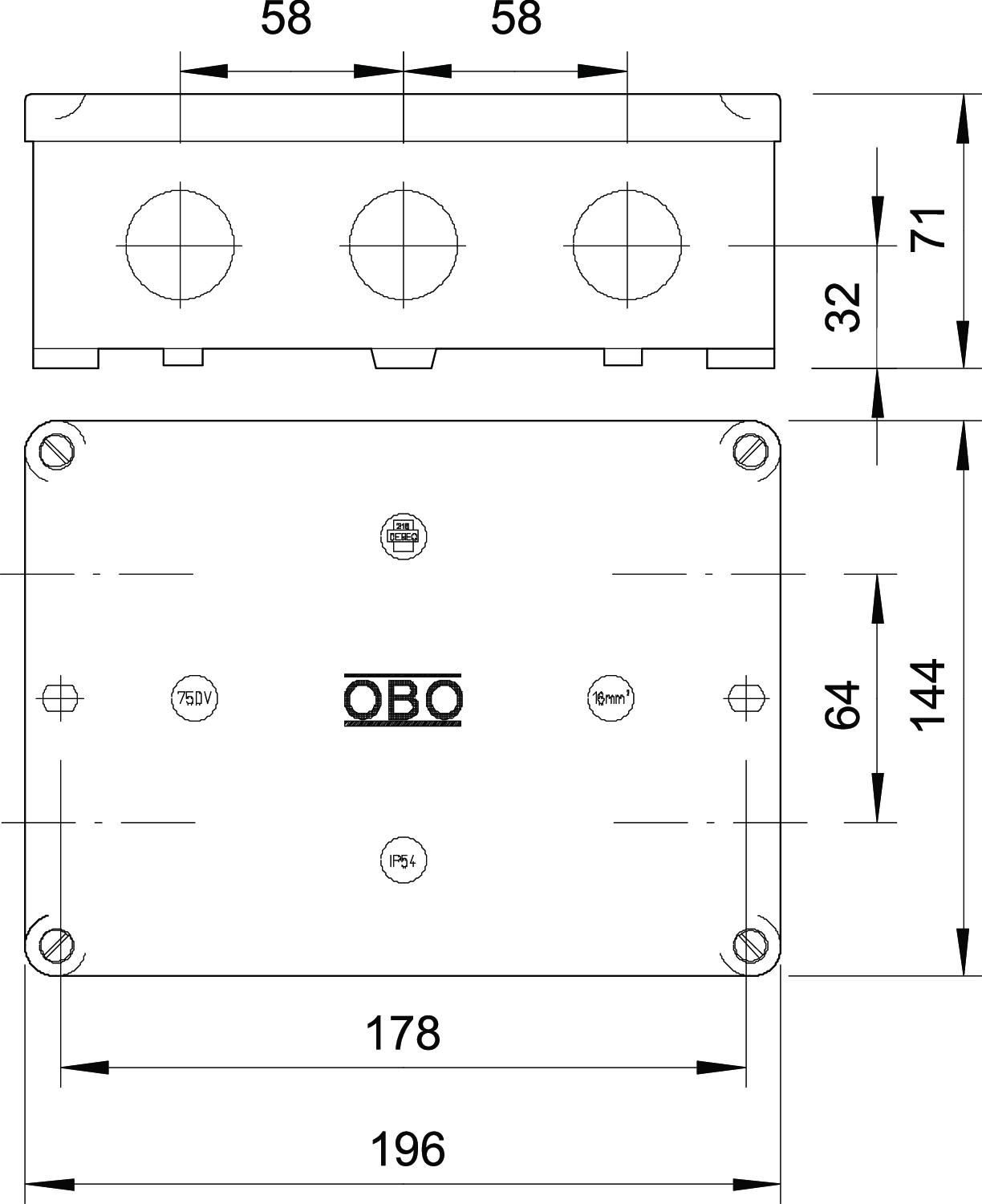

Dimensions

Clear internal dimensions	178x126x57 mm
CO2 Footprint (GWP) Cradle-to-Gate	1,3189 kg CO₂e / 1 Piece
Colour	Light grey; RAL 7035
Cover	Not transparent
Cover fastening	Screwed
Dimension	178x144x71
Entries	10 break-out entries with thread M25 x 1.5
Entry from rear	no
Expandable	no
Explosion-tested version	no
Flame-resistant	Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
for pipe diameter	25 mm
Halogen-free	yes
Height	71 mm
Impact-resistant	no

Length	144 mm
Maintain electrical functions	Without
Material	Duroplast, Aminoplast
Measured insulation voltage Vi	660 V
No. of entries	10
Nominal cross-section, min.	16 mm²
Nominal voltage	660 V
Protection rating	IP54
Sealable	yes
Shape	Rectangular
Transparent lid	no
Type of entry	Cable
Type of entry	Gland
Type of housing penetration	Thread and pre-marking
Weatherproof	no
Width	196 mm
with lid	yes
With screening	no

All types

All types

Types	Clear internal dimensions	No. of entries	Protection rating	Colour	Item no.
B 9 B M	73x73x35 mm	7	IP54	Light grey; RAL 7035	2001632
B 10 M	80x80x39 mm	7	IP54	Light grey; RAL 7035	2002167
B 11 M	125x100x44 mm	10	IP54	Light grey; RAL 7035	2002345
B 12 M	178x126x57 mm	10	IP54	Light grey; RAL 7035	2002523
