Hexagonal bolt M12 F
Item no. 6418287 | EAN 4012196204434
- Product description
-

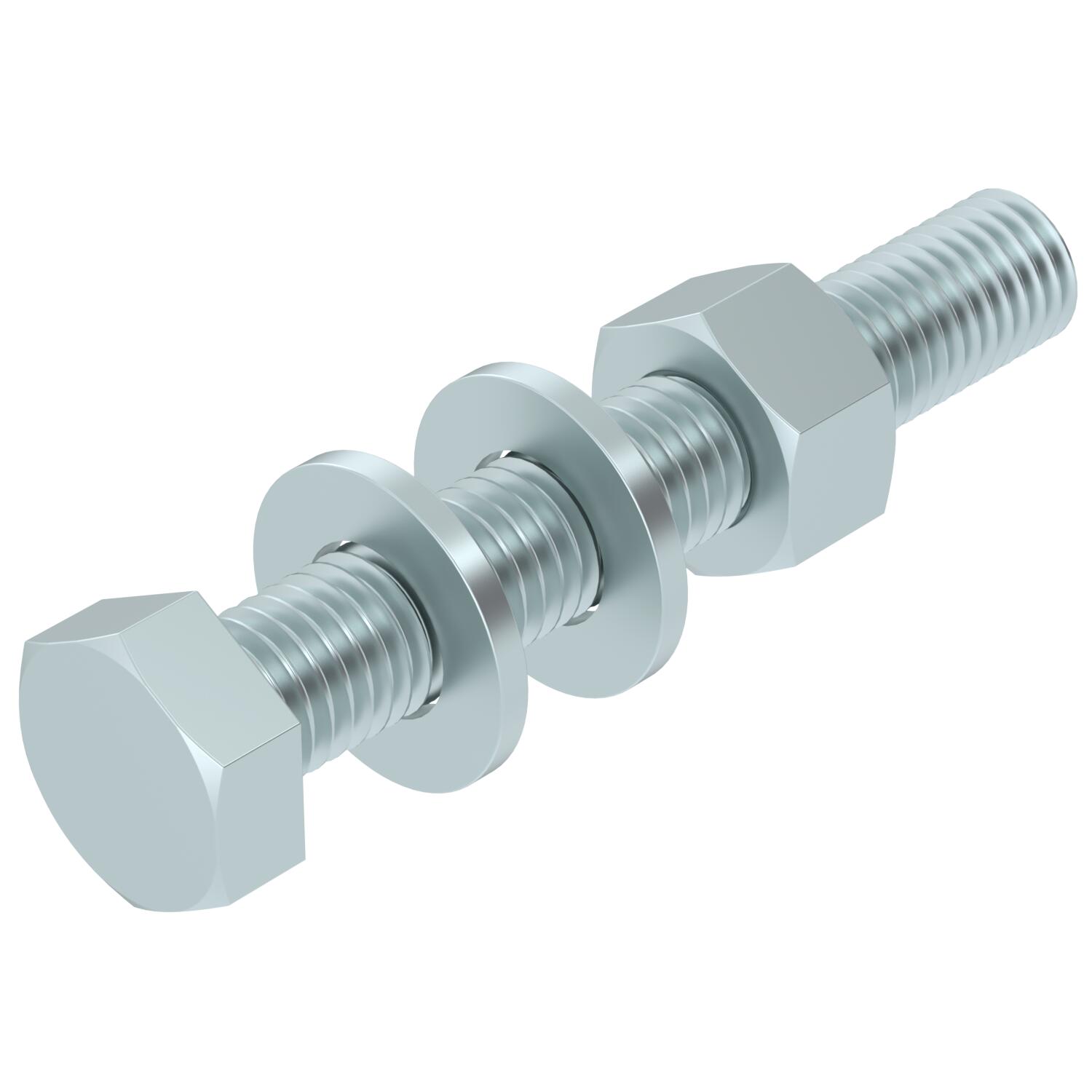

Product descriptionHexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
-
- Technical data
-
Technical data

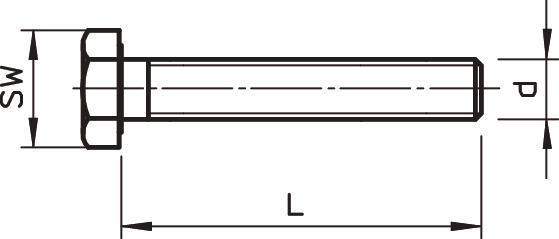

Colour zinc Dimension M12x80 Dimension d 12 mm Dimension L 80 mm Full thread yes Left thread no Length 80 mm Material Steel Resistance grade 8.8 Screw system Hexagonal Self-locking no Surface Hot galvanized Thread M 12 x 80 Thread increase 1,75 mm Thread length 80 mm Thread metric 12 Thread type Metric WAF 19 With flange no With nut yes With washer yes - All types
-
All types
- Downloads
-
Data sheet SKS 12x80 F / 6418287 , 0.15MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity SKS 12x80 F / 6418287 , 0.22MB , pdfREACH Declaration of conformity SKS 12x80 F / 6418287 , 0.12MB , pdfRoHS Declaration of conformity SKS 12x80 F / 6418287 , 0.12MB , pdfSelection aid Selection aid cable trays, screwable , 2.17MB , pdfSelection aid Selection aid for cable trays, Magic , 0.23MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
