Hexagonal bolt M12 F 12 | 40 | 19 | 12 | Steel

Hexagonal bolt M12 F

Item no. 3163165 | EAN 4012197386078

Item no. / Types

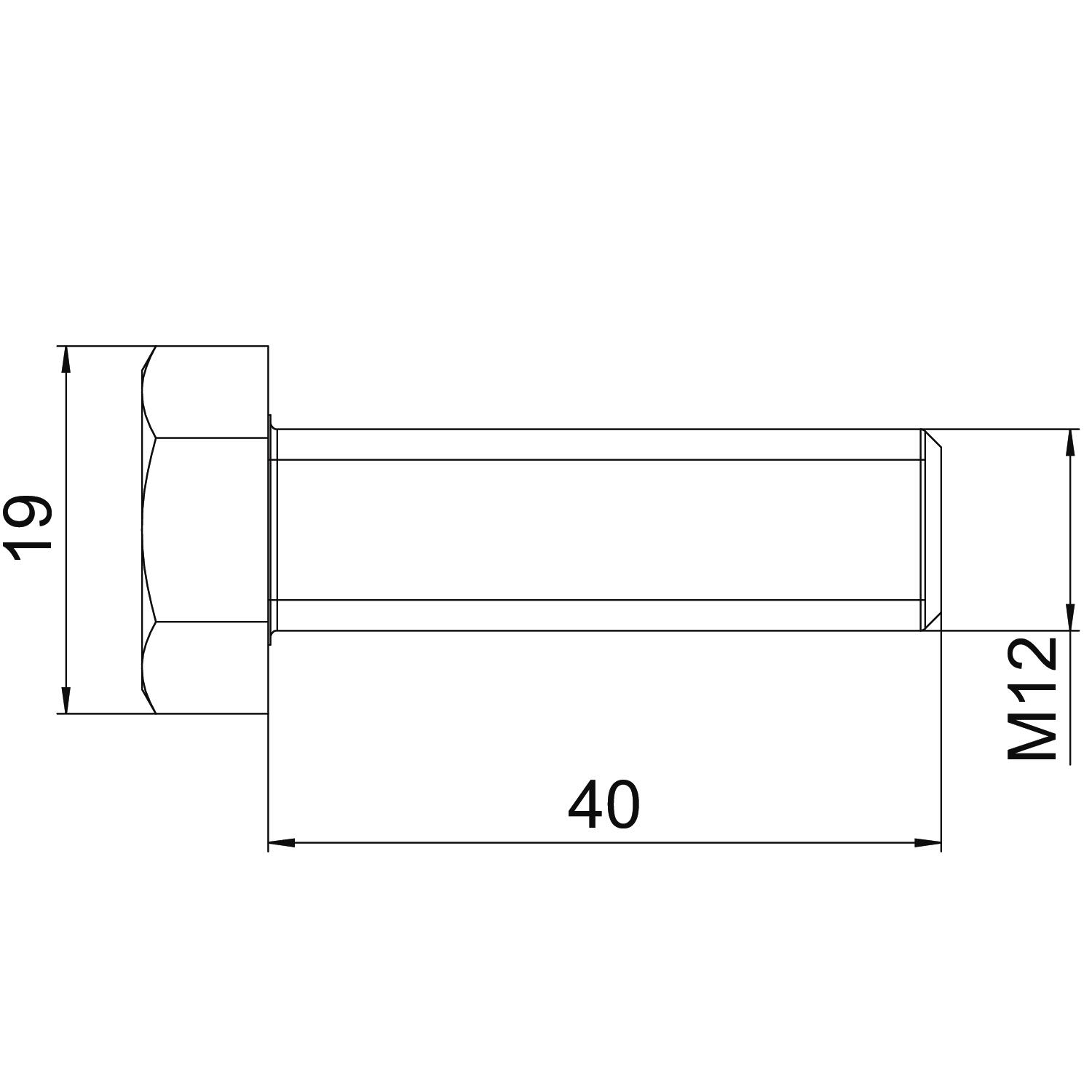

Dimension d	12 mm

Dimension L

WAF	19

Thread metric	12

Material	Steel

Product description

Product description

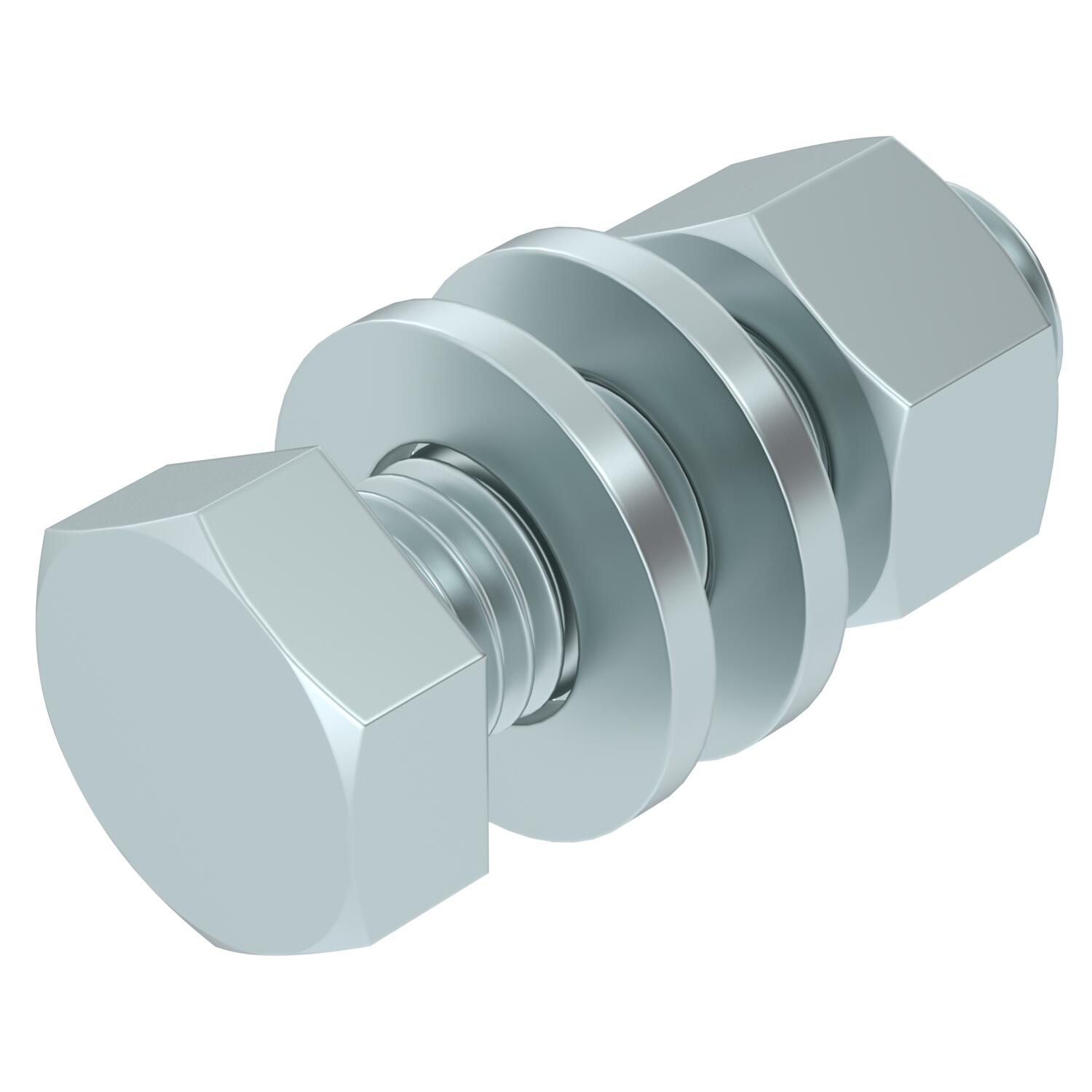

Hexagonal bolt for universal fastening of construction components and for the fastening of wall and support brackets on adapter plates. With hexagonal nut and 2 washers.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,2197 kg CO₂e / 1 Piece
Colour	zinc
Dimension	M12x40
Dimension d	12 mm
Dimension L	40 mm
Full thread	yes
Left thread	no
Length	40 mm
Material	Steel
Resistance grade	8.8
Screw system	Hexagonal

Self-locking	no
Surface	Hot galvanized
Thread	M 12 x 40
Thread increase	1,75 mm
Thread length	40 mm
Thread metric	12
Thread type	Metric
WAF	19
With nut	yes
With washer	yes

All types

All types

Types	Dimension d	Dimension L	WAF	Thread metric	Material	Item no.
SKS 12x30 F	12 mm	30 mm	19	12	Steel	3163091
SKS 12x40 F	12 mm	40 mm	19	12	Steel	3163160
SKS 12x40 G F	12 mm	40 mm	19	12	Steel	3163165
SKS 12x60 F	12 mm	60 mm	19	12	Steel	3163172
SKS 12x80 F	12 mm	80 mm	19	12	Steel	6418287
SKS 12x100 F	12 mm	100 mm	19	12	Steel	6418295
SKS 12x110 F	12 mm	110 mm	19	12	Steel	6418317
SKS 12x130 F	12 mm	130 mm	19	12	Steel	6408478
