Hexagonal bolt M10 F

Item no. / Types

Dimension d	10 mm

Dimension L

WAF	17

Thread metric	10

Material	Steel

Product description

Product description

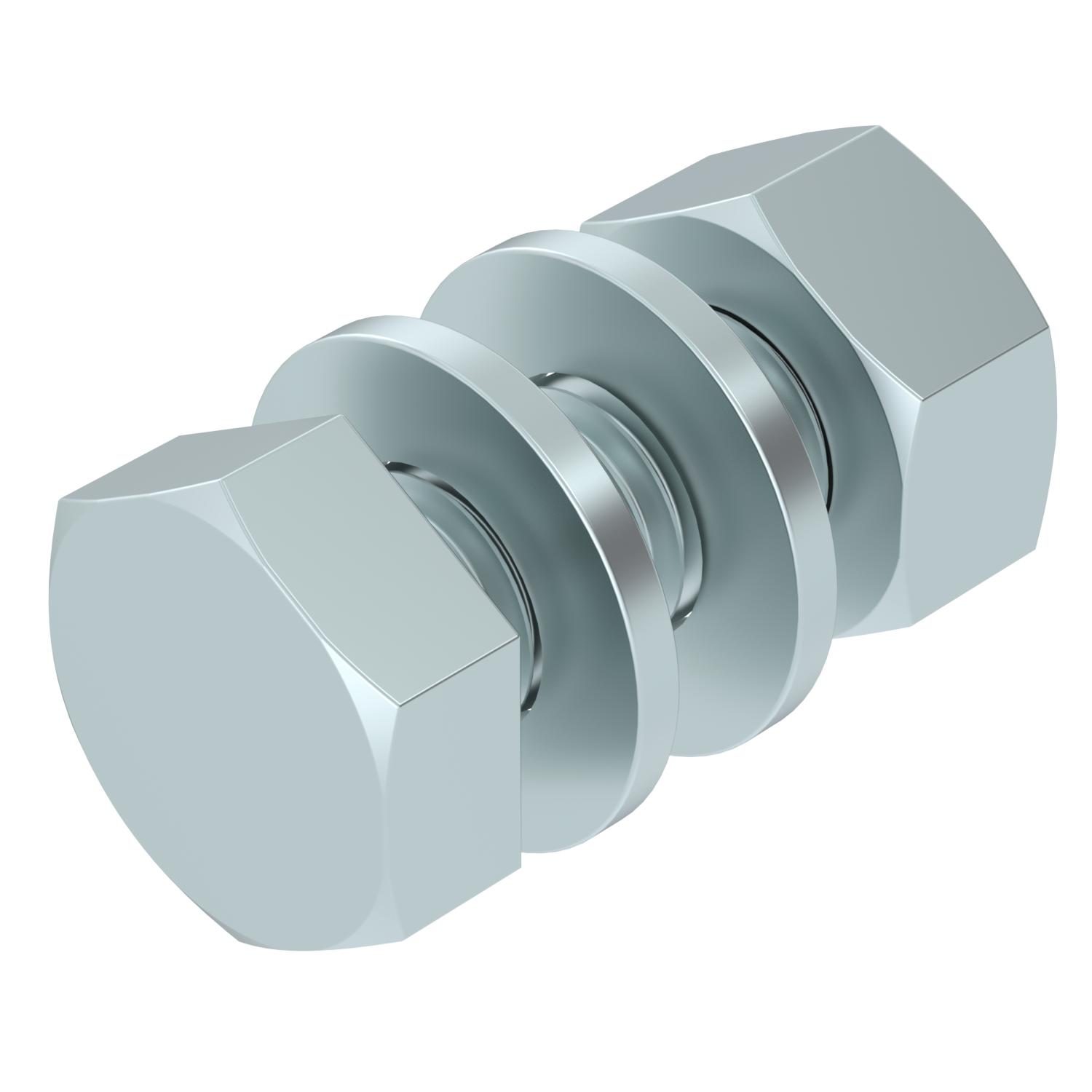

Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,112 kg CO₂e / 1 Piece
Colour	zinc

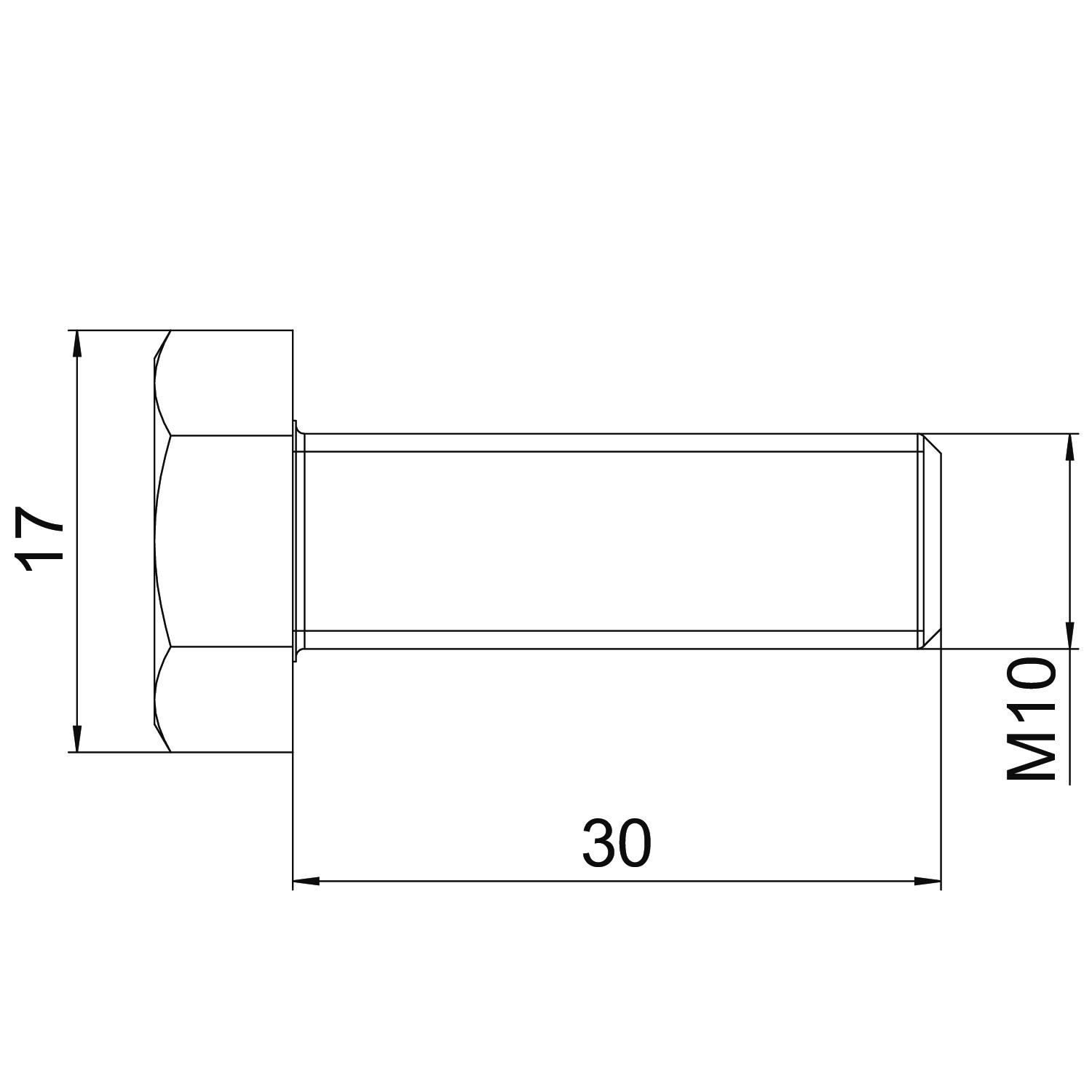

Dimension	M10x30
Dimension d	10 mm
Dimension L	30 mm
Full thread	yes
Left thread	no
Length	30 mm
Material	Steel
Resistance grade	8.8
Screw system	Hexagonal

All types

All types

Types	Dimension d	Dimension L	WAF	Thread metric	Material	Item no.
SKS 10x25 F	10 mm	25 mm	17	10	Steel	3160755
SKS 10x120 F	10 mm	120 mm	17	10	Steel	3160793
SKS 10x190 F	10 mm	190 mm	17	10	Steel	3160799
SKS 10x60 F	10 mm	60 mm	17	10	Steel	6408516
SKS 10x80 F	10 mm	80 mm	17	10	Steel	6418250
SKS 10x90 F	10 mm	90 mm	17	10	Steel	6418252
SKS 10x30 F	10 mm	30 mm	17	10	Steel	3160760
SKS 10x40 F	10 mm	40 mm	17	10	Steel	3160765
