Hexagonal bolt M10 F
Item no. 3160755 | EAN 4012197385996
- Product description
-

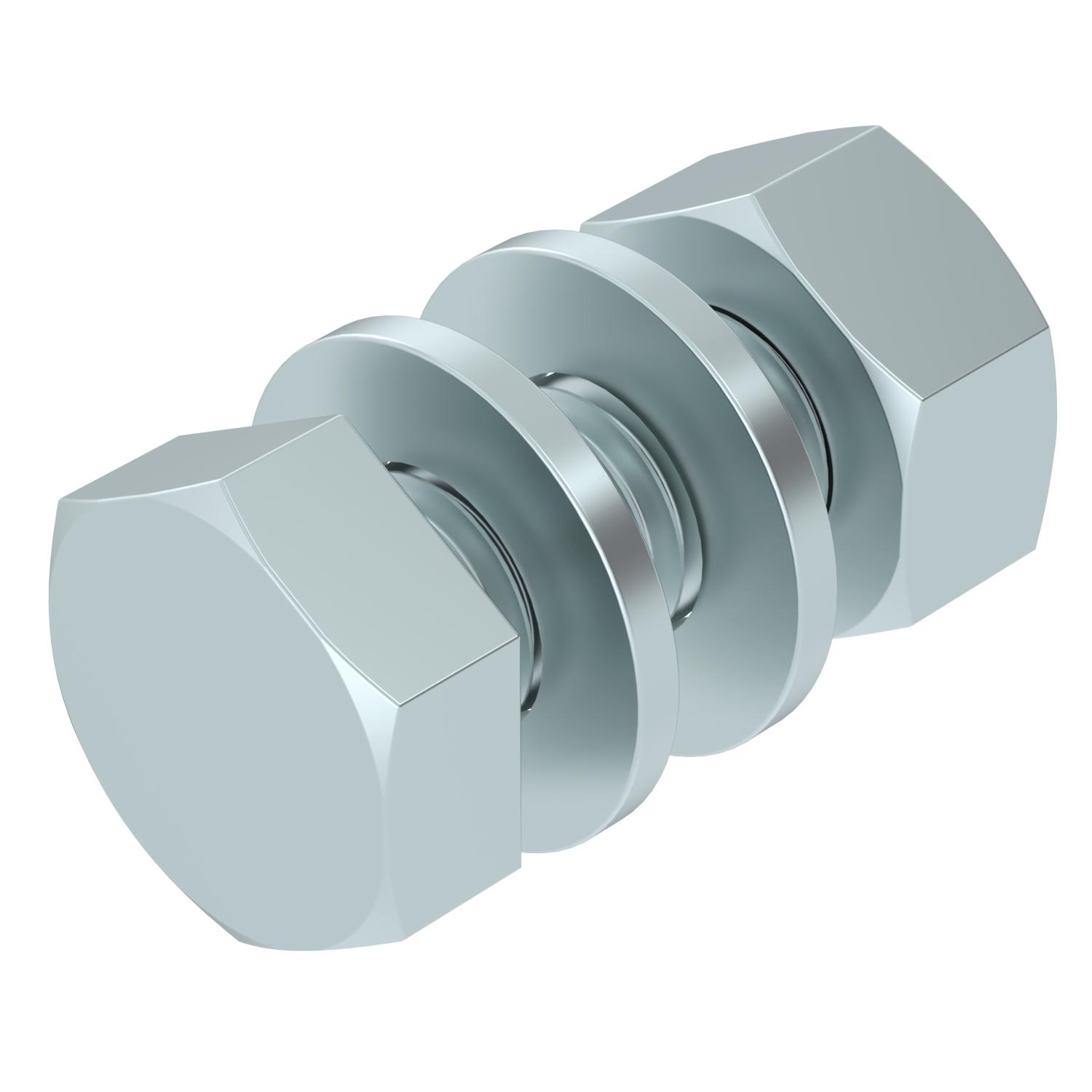

Product descriptionHexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
-
- Technical data
-
Technical data

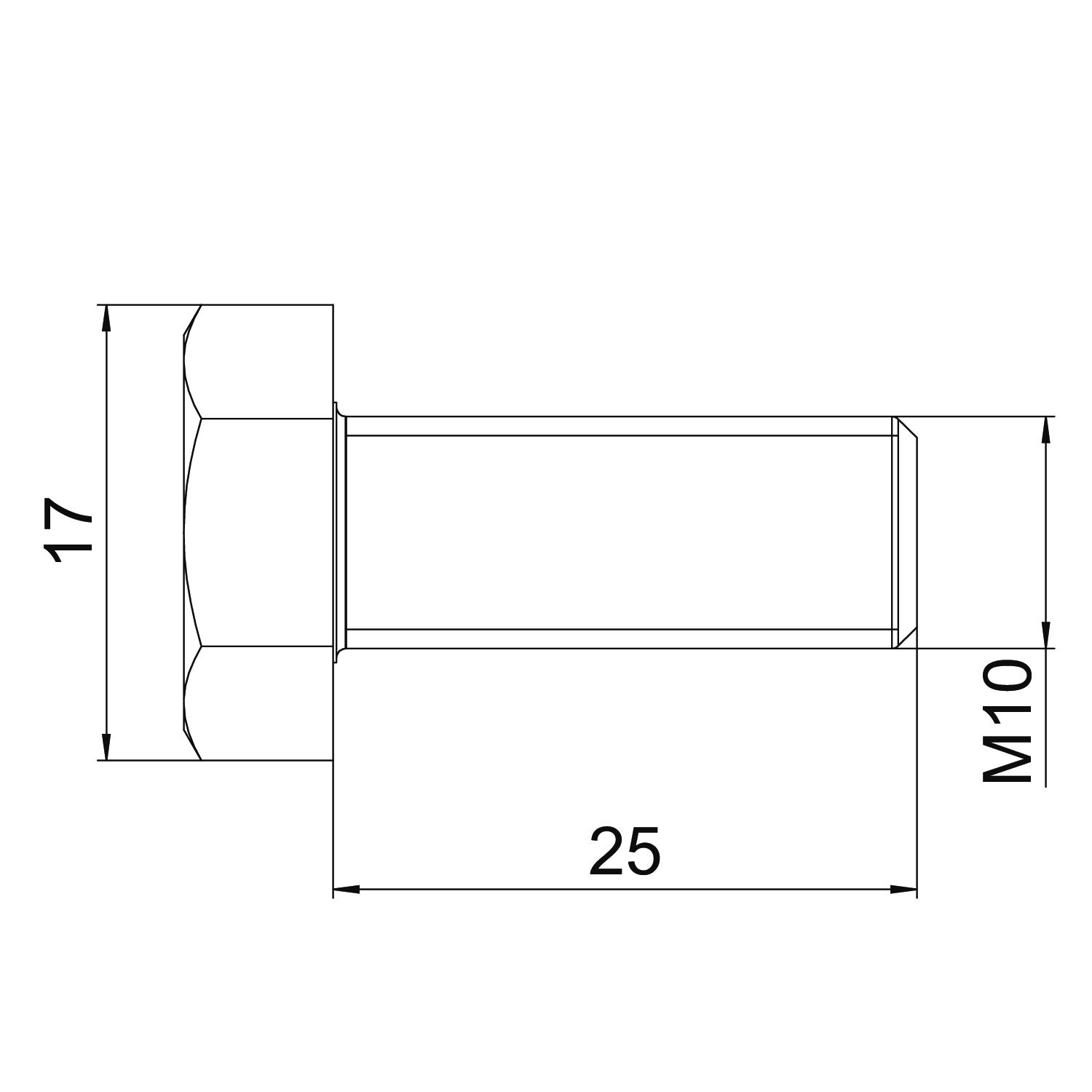

CO2 Footprint (GWP) Cradle-to-Gate 0,1057 kg CO₂e / 1 Piece Colour zinc Dimension M10x25 Dimension d 10 mm Dimension L 25 mm Full thread yes Left thread no Length 25 mm Material Steel Resistance grade 8.8 Screw system Hexagonal Self-locking no Surface Hot galvanized Thread M 10 x 25 Thread increase 1,5 mm Thread length 25 mm Thread metric 10 Thread type Metric WAF 17 With nut yes With washer yes - All types
-
All types
- Downloads
-
Data sheet SKS 10x25 F / 3160755 , 0.19MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity SKS 10x25 F / 3160755 , 0.11MB , pdfUK Declaration of Conformity SKS 10x25 F / 3160755 , 0.09MB , pdf
