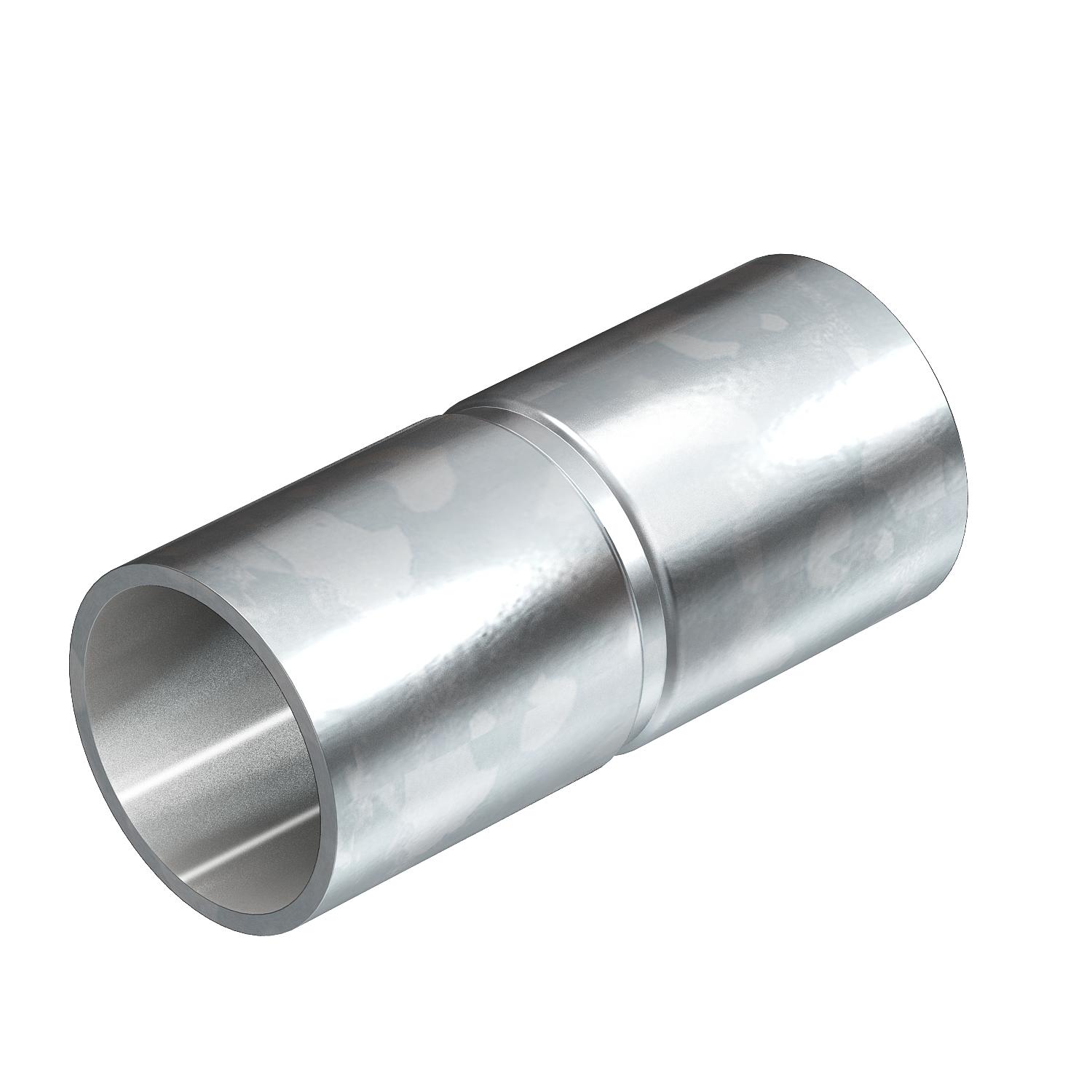

Electrogalvanised steel sleeve, without thread
Item no. 2046860 | EAN 4012195924845
- Product description
-
Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
-
- Technical data
-
Technical data

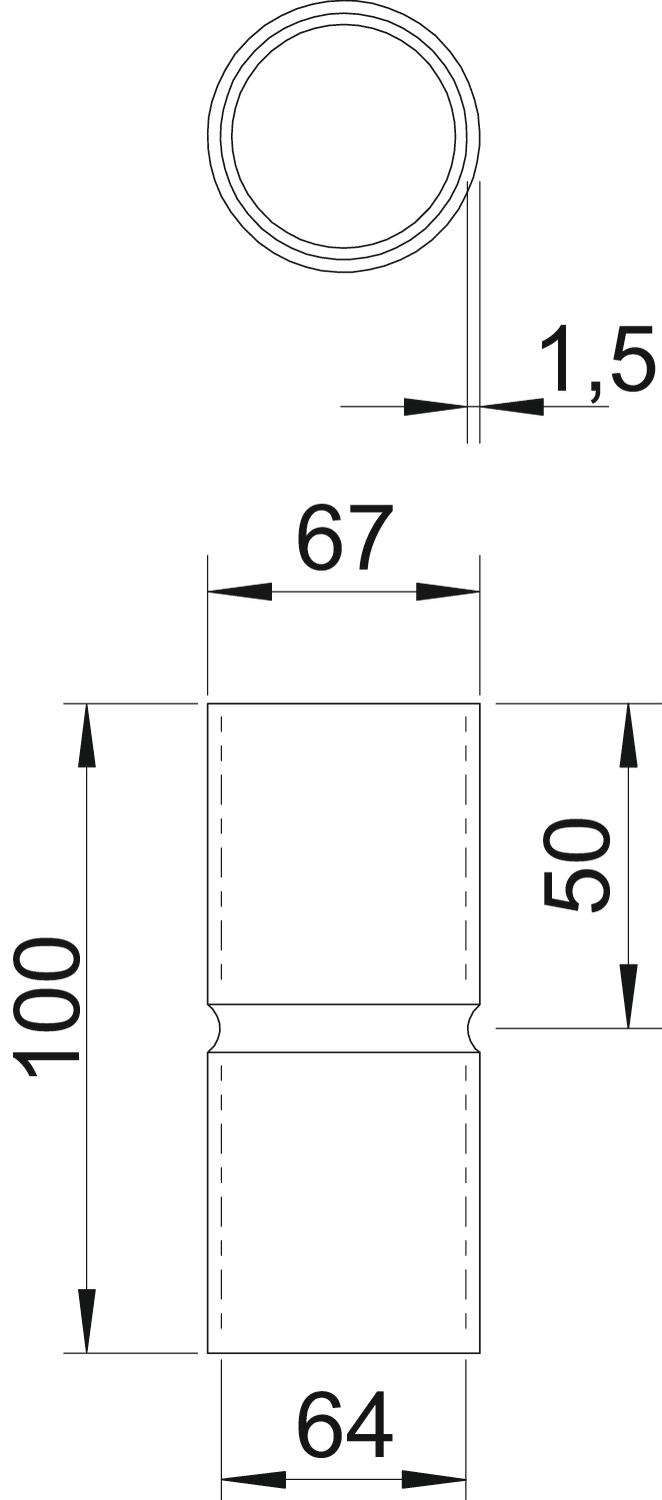

Brushed surface no CO2 Footprint (GWP) Cradle-to-Gate 0,589 kg CO₂e / 1 Piece Dimension Ø63mm Dimension d 64 mm Dimension D 67 mm Dimension L 100 mm Dimension l 50 mm Dimension m (mm) M63 Dimension t 1,5 mm for pipe diameter 63 mm Halogen-free yes Length 100 mm Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Size 63 Surface Electrogalvanized Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV63W G / 2046860 , 0.17MB , pdfEU declaration of conformity SV63W G / 2046860 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,REACH Declaration of conformity SV63W G / 2046860 , 0.12MB , pdfRoHS Declaration of conformity SV63W G / 2046860 , 0.12MB , pdf
