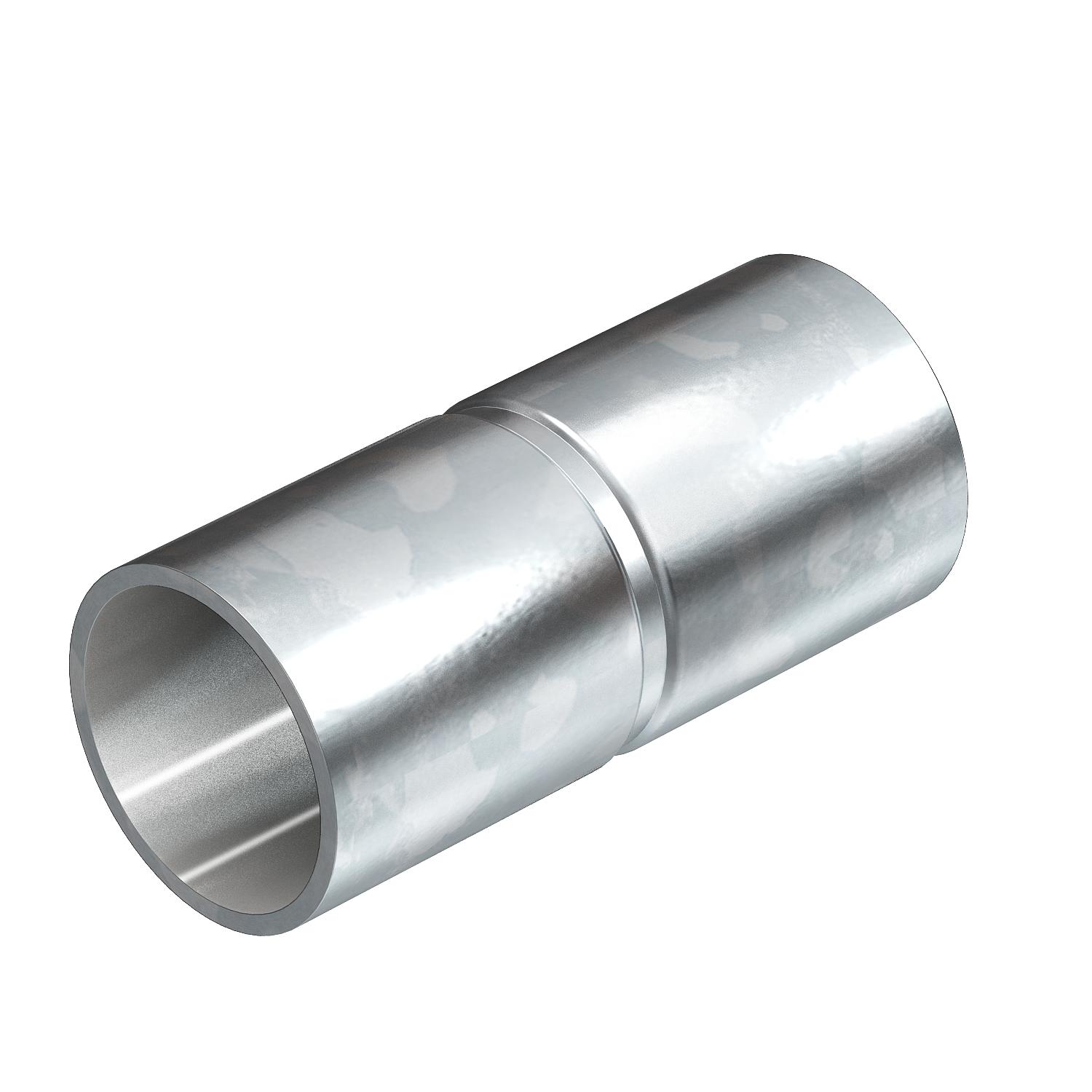

Electrogalvanised steel sleeve, without thread
Item no. 2046855 | EAN 4012195924791
- Product description
-
Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
-
- Technical data
-
Technical data

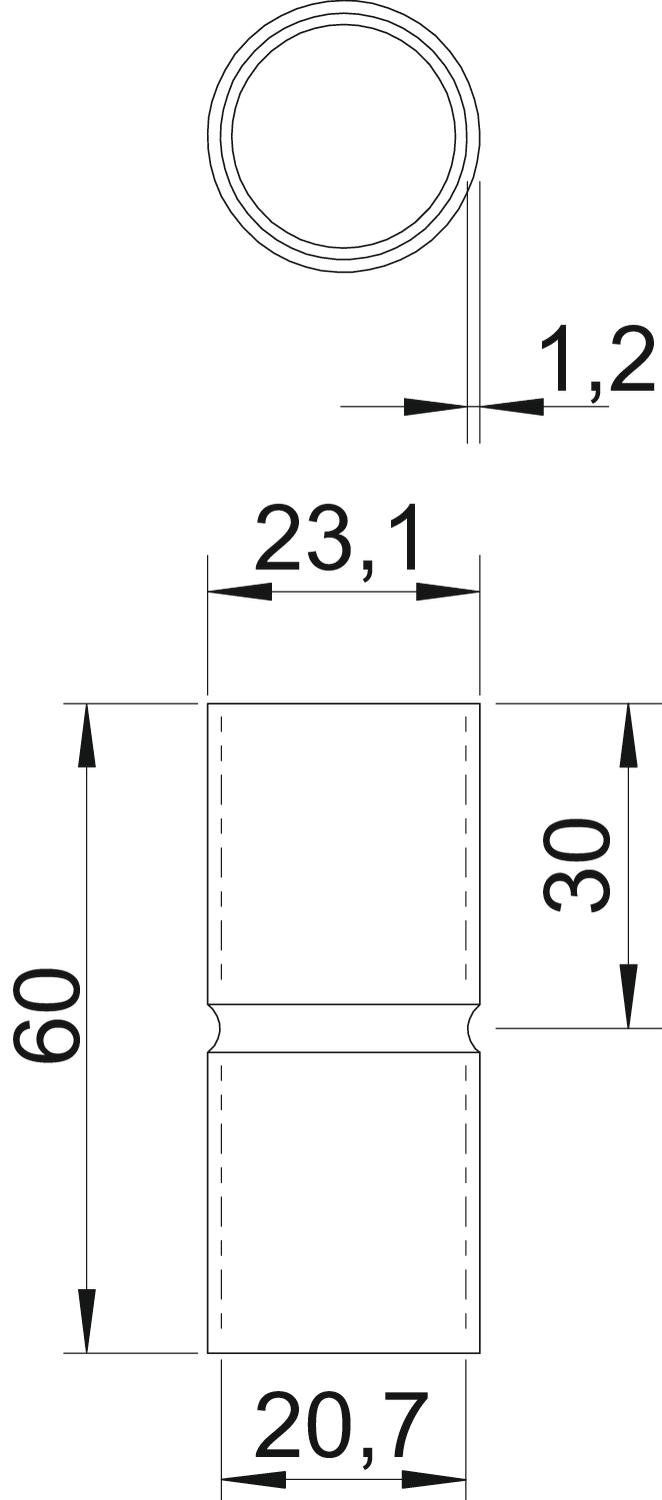

Brushed surface no CO2 Footprint (GWP) Cradle-to-Gate 0,083 kg CO₂e / 1 Piece Dimension Ø20mm Dimension d 20,7 mm Dimension D 23,1 mm Dimension L 60 mm Dimension l 30 mm Dimension m (mm) M20 Dimension t 1,2 mm for pipe diameter 20 mm Halogen-free yes Length 60 mm Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Size 20 Surface Electrogalvanized Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV20W G / 2046855 , 0.20MB , pdfEU declaration of conformity SV20W G / 2046855 , 0.10MB , pdfUK Declaration of Conformity SV20W G / 2046855 , 0.09MB , pdfREACH Declaration of conformity SV20W G / 2046855 , 0.12MB , pdfRoHS Declaration of conformity SV20W G / 2046855 , 0.12MB , pdf
